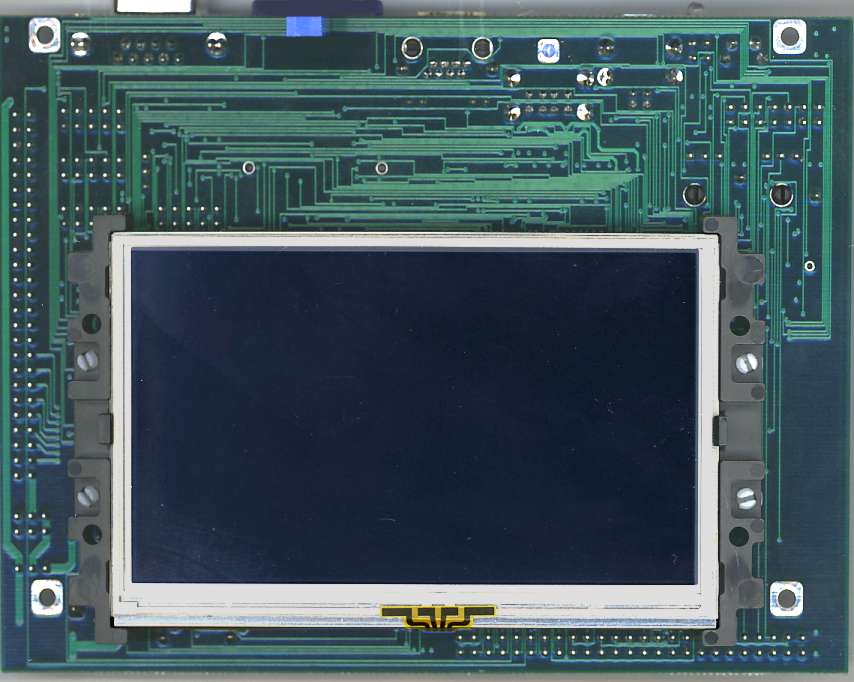

The SoM-150ES is versatile SoM Carrier/Socket board ideal for evaluation and early development work. This Carrier is designed to work with all EMAC 144-pin SODIMM type SoMs.

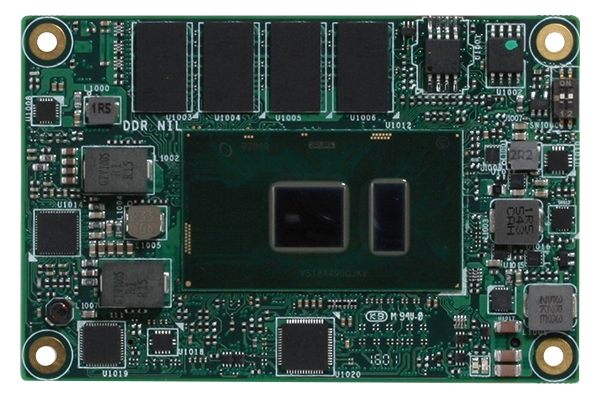

SOM-7569 is a COM Express Mini module with type 10 pin-out that fully complies with the PICMG (PCI Industrial Computer Manufactures Group) COM.0 R2.1 specification.
The SMARC-sXBTi Computer-on-Modules has been developed to comply with the SGET specification and is equipped with Intel® Atom™ processor E3800 series and up to 8 GB RAM, optional with ECC.
SOM-AB5810
- Mini-ITX form factor with slim type I/O connector under 25.4mm
- Compatible to COM Express Basic/Compact with Type 6 pin-out module
- Supports Standard ATX Power or DC-in 19V
- VGA, 2xHDMI, PCIe x16, mini-PCIe, SATA, and USB3.0
32Spi111T44
32Spi211B44

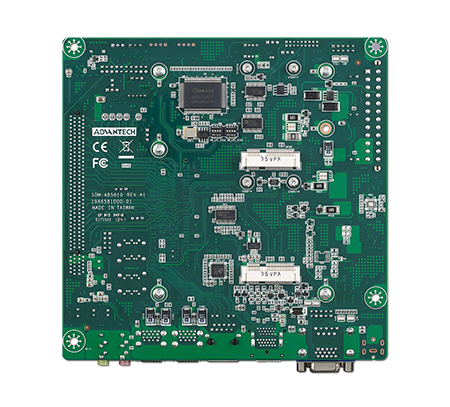

32Spi411I41 SOM-AB5810 is the newest Mini-ITX application board. Featuring pin-to-pin compatibility with COM Express® Basic and Compact type 6 pin-out CPU modules compatible CPU models include SOM-5892 with 3rd Gen. Intel® Core™, SOM-5894, SOM-6894 with 4th Gen. Intel® Core™ and newer SOM modules. SOM-AB5810 supports both normal and wide-range temperature demands, as well as a choice of ATX power supply or DC-in 19V adapter. SOM-AB5810 is ideal for harsh environments and perfect for outdoor surveillance, industrial automation, digital signage, kiosk applications and much more.
Features
- Mini-ITX form factor with slim type I/O connector under 25.4mm
- Compatible to COM Express Basic/Compact with Type 6 pin-out module
- Available Wide-range operating temperature from -40 to +85 degree
- Standard ATX Power or DC-in 19V
- 1x VGA
- 2xHDMI
- PCIe x16(or PCIe x1)
- mini-PCIe
- 4xSATA(or 2x),
- 4x USB 3.0 & 2x USB 2.0
Overview
SOM-AB5810 is the newest Mini-ITX application board. Featuring pin-to-pin compatibility with COM Express® Basic and Compact type 6 pin-out CPU modules compatible CPU models include SOM-5892 with 3rd Gen. Intel® Core™, SOM-5894, SOM-6894 with 4th Gen. Intel® Core™ and newer SOM modules. SOM-AB5810 supports both normal and wide-range temperature demands, as well as a choice of ATX power supply or DC-in 19V adapter. SOM-AB5810 is ideal for harsh environments and perfect for outdoor surveillance, industrial automation, digital signage, kiosk applications and much more.

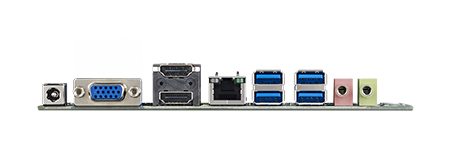

SOM-AB5810 is designed for two different types of power selection ATX power supply and DC-in 19V via an adapter. An optional ATX power supply can deliver under 47W to the CPU module board (Note: ATX power supply should be more than 200W). For the DC-in 19V adapter power design, it can deliver under 17W to the CPU module. For the I/O interface, SOM-AB5810 supports standard and low profile design types. The standard I/O interface fits with a standard Mini-ITX I/O shielding and standard Mini-ITX chassis without alterations. The low profile I/O interface can meet both standard I/O shielding or customized interface within a low profile chassis design.
| Manuals | |
|---|---|
| SOM-AB5810_USER_MANUAL_ED2.PDF | Download (PDF) |
| Data Sheets | |
|---|---|
| SOM-AB5810_DS.pdf | Download (PDF) |
Specifications
| Primary IO | |
|---|---|
| GPIO | 18x GPIO |
| Disk Interface | 4x SATA & 1x mSATA |
| Audio | Line-out(L/R) |
| Video Out | VGA, LVDS & 2x HDMI |
| Ethernet | 1x RJ-45 support for 10/100/1000 network speeds |
| USB | 4x USB 3.0/2.0, 2x USB 2.0 |
| Serial Ports | 2x COM (COM1 RS232, COM2 RS-232/422/485) |
| Secondary IO | |
|---|---|
| SPI | yes |
| I2C | yes |
| Expansion | |
|---|---|
| Bus Expansion | ATX SKU: 1 PCIe x16, DC SKU: 1 PCIe x1 |
| Bus Misc. | Supports: COM Express Type 6 Basic (125 x 95 mm) or Compact (95 x 95 mm) Modules |
| Misc | |
|---|---|
| SOM Type | COM Express Carrier Boards |
Mechanical and Environmental
| Dimensions | |
|---|---|
| Size | 6.7" ×6.7" ×1" (170mm × 170mm × 25mm) |
| Dimensions Misc. | 1" (25.4mm) height is depending on SOM and cooling solution selected. |
| Power Requirements | |
|---|---|
| Power Misc. | ATX SKU: ATX DC-in SKU: DC-in 19V |
| Environmental | |
|---|---|
| Low Operating Temperature | 0 C (32 F) |
| High Operating Temperature | 60 C (140 F) |
| Upper Operating Humidity | 95% |
Pricing
Pricing correct as of January 2021. Please contact EMAC for Current Pricing and Lead Time. Due to volatility in the electronics industry pricing is subject to change.
OEM / Quantity Pricing Available on Request - Less Services
(Single Unit Pricing. Includes: Integration, Setup,Testing, & Enhanced Support)
| Product # | Description | Price |
|---|---|---|
| SOM-AB5810AC | SOM-AB5810AC-00A1E, Mini-ATX Application Carrier board, ATX power, 4x SATA, 2x COM, 2x Mini-PCIe, 4x USB3/2, 2x USB2, 1x GbE, 1x VGA, 1x LVDS, 2x HDMI | $299.00 |
| SOM-AB5810DC | SOM-AB5810DC-00A1E, Mini-ATX Application Carrier board, 19V DC power, 2x SATA, 2x COM, 2x Mini-PCIe, 4x USB3/2, 2x USB2, 1x GbE, 1x VGA, 1x LVDS, 2x HDMI | $299.00 |
