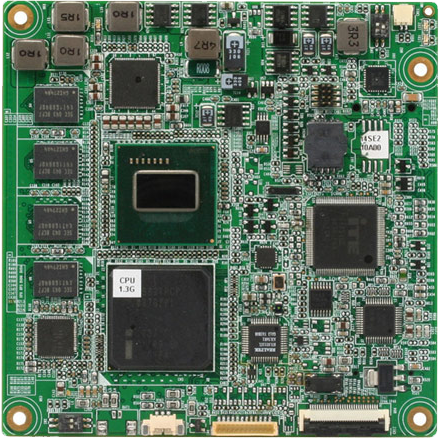

CoM-TC

This product is End-of-Life. Please contact our Sales Department for the recommended replacement or consider.

The CoM-TC comes equipped with the IntelR EG20T I/O controller hub and a Realtek RTL8211CL Gigabit Ethernet to meet communications and networking requirements. CoM-TC has onboard system memory, eliminating the need to add a memory module, providing a more cost effective and rugged solution. For storage options, CoM-TC offers two SATA 3.0 Gb/s ports, one PATA, and an optional onboard SSD. The onboard SSD furthers the simplification, cost reduction, and ruggedness of the system design by eliminating the need to add storage media to the system.

Features

  • Onboard Intel Atom E680 Processor
  • Intel EG20T IOH
  • DDR2 667/800 Memory, Max. 2GB
  • Gigabit Ethernet
  • Up to 24-bit LVDS LCD, SDVO
  • High Definition Audio Interface
  • SATA 3.0Gb/s x 2 (1), SATA SSD x 1 (Optional), PATA x 1
  • USB2.0 x 7 (USB Host x 6, USB Device x 1)
  • PCI-Express [x1] x 2
  • Compact Module Size, Pin-out Type 2, 95mm x 95mm, COM.0 Rev. 2.0

Overview

The CoM-TC comes equipped with the IntelR EG20T I/O controller hub and a Realtek RTL8211CL Gigabit Ethernet to meet communications and networking requirements. CoM-TC has onboard system memory, eliminating the need to add a memory module, providing a more cost effective and rugged solution. For storage options, CoM-TC offers two SATA 3.0 Gb/s ports, one PATA, and an optional onboard SSD. The onboard SSD furthers the simplification, cost reduction, and ruggedness of the system design by eliminating the need to add storage media to the system. Moreover, seven USB2.0 ports are supported to allow flexibility in the use of external devices and peripherals. In addition, there is a 4-bit SDIO as well as two PCI-Express [x1], one LPC Bus, and one SMBus interface for I/O and expansion on the carrier board. The integrated graphics controller supports LVDS/SDVO independent display and includes 2D and 3D acceleration in addition to video MPEG4, H.264, and H.263 decode and encode.

Manuals
COM-TC-Manual-Rev.A2nd.pdf
Download (PDF)
Data Sheets
COM-TC.pdf
Download (PDF)

Specifications

Processor
CPU
Intel® Atom™ E680 processor
Clock Speed
1.6 GHz
Memory
BIOS/ Bootloader
AMI BIOS SPI type, 2MB ROM
Memory Misc.
  • System Memory: Onboard DDR2 667/800 memory chip, Max. 2GB
  • System Chipset: Intel® EG20T IOH
Primary IO
GPIO
Up to 4 in or 4 out
Disk Interface
SATA 3.0Gb/s x 2 (1), PATA x 1
Audio
High definition audio interface
Video Out
LVDS/SDVO independent display and Hi-Definition Video 2D/3D Encoder/ Decoder
Ethernet
10/100/1000Base-TX
USB
USB 2.0 x 7 (USB Host x 6, USB Client x 1)
Primary I/O Misc.
  • Enhanced IDE Interface: SATA SSD onboard (Master device), Max. 4 GB (Optional)
  • SATA: SATA 3.0Gb/s x 2 (1)
  • PATA: PATA x 1
Secondary IO
Expansion
Bus Expansion
COM Express Compact Type 2
Misc
SOM Type
COM Express Modules

Mechanical and Environmental

Dimensions
Size
3.74" ×3.74" (94mm × 94mm)
Power Requirements
Voltage
12 V
Typical Voltage
12 V
Typical Current
0.97 A
Power Misc.

Power Requirements: Power Consumption (Typical), Intel Atom E680 1.6GHz, DDR2 1GB, 0.97A@+12V
Environmental
Low Operating Temperature0 C (32 F)
High Operating Temperature60 C (140 F)
Upper Operating Humidity
90%
Related Products
COM-BT, SOM-6867

Pricing

Pricing correct as of January 2021. Please contact EMAC for Current Pricing and Lead Time. Due to volatility in the electronics industry pricing is subject to change.

OEM / Quantity Pricing Available on Request - Less Services

(Single Unit Pricing. Includes: Integration, Setup,Testing, & Enhanced Support)

Product # Description Price
CoM-TC-A10-03 ATOM E680 1.6GHz 1GB DDR2 ONBOARD/LVDS/SDVO/GLAn $382.00
CoM-TCW2-A10-03 ATOM E680 1.6GHz 1GB DDR2 ONBOARD/LVDS/SDVO/GLAn (wide temp) Call

Carrier Board Options

Product #VariationPrice
$0.00

Peripheral Options

Product # Description Price
Peripherals
PER-FAN-00017-R Passive heat sink no fan (NCNR) $45.00
