EPAC-3000

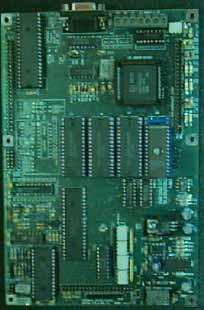

15epi111ee23 The EPAC 3000 is a high performance data acquisition and control computer based on Hitachi's HD64180 / Zilog Z180 processor. This high integration CMOS microprocessor features an enhanced Z80 instruction set that includes a fast multiply instruction, two 16 bit timers, a memory management unit that supports 1 MB abyte of memory and 64K bytes of I/O space, a DMA controller with memory to memory and memory to I/O transfer capability and a versatile interrupt controller that manages twelve interrupt sources.
Features
- CENTRAL PROCESSING UNIT: HD64180/Z180 with 6.144 MHz clock speed.
- LOW POWER: All CMOS construction.
- DIGITAL I/O: 8 optically coupled inputs, 8 high drive outputs, 20 programmable unbuffered lines terminated to a 50 pin I/O rack compatible header connector.
- ANALOG I/O: 16 channel, 8 bit analog to digital converter, or optional 16 channel, 12 bit plus sign analog to digital converter with sample/hold.
- MEMORY: Maximum system memory is 512K bytes, 128K RAM is furnished and 1K bit nonvolatile EEPROM.
- COMMUNICATION: 2 RS232 serial ports with interrupt support.
- TIMERS: 2, 16 bit timers with interrupt support and a watchdog timer.
- POWER SUPPLY: Single Voltage supply operating from +8 to +15 Vdc. with on board regulation.
- EXPANSIBILITY: 50 pin header connector for use with accessory boards.
Overview
The EPAC 3000 is a high performance data acquisition and control computer based on Hitachi's HD64180 / Zilog Z180 processor. This high integration CMOS microprocessor features an enhanced Z80 instruction set that includes a fast multiply instruction, two 16 bit timers, a memory management unit that supports 1 MB abyte of memory and 64K bytes of I/O space, a DMA controller with memory to memory and memory to I/O transfer capability and a versatile interrupt controller that manages twelve interrupt sources. EMAC integrated this powerful processor onto a board that contains 36 digital I/O lines, 2 serial RS232 ports, an 8 bit A/D converter (13 bit optional), all CMOS construction and more with a board size of 5 1/4" by 8.0".
The EPAC 3000 was designed with the same key features (watchdog timer, machine sockets, single rail power supply with on board regulation, optically coupled digital inputs, transient protection for analog inputs and a separate analog ground) that give the EPAC series of single board computers their high degree of reliability. Reliability and Performance make the EPAC 3000 just as home on the Factory Floor as the Laboratory Bench. Future expansion is also provided for by the EPAC 3000 with the ENET network. ENET allows up to 32 EPAC Single Board Computers to exchange information.
EMAC offers a total system solution to your application needs, with development software, peripheral boards, signal conditioning cards and more. The new Universal Expansion Interface gives the EPAC 3000 compatibility with virtually all the EPAC series accessory boards. So take the EPAC 3000 for a 30 day risk free test drive and just see what this single board computer can do for you!
| Manuals |
|---|
| Data Sheets |
|---|
Specifications
| Processor | |
|---|---|
| CPU | HD64180/Z180 |
| Clock Speed | 6.144 MHz |
| Memory | |
|---|---|
| RAM | Up to 128K ROM 384K RAM 1K EEPROM |
| Memory Misc. | MEMORY: Maximum system memory is 512K bytes, 128K RAM is furnished and 1K bit nonvolatile EEPROM. |
| Primary IO | |
|---|---|
| GPIO | 36x Total 20x Prog. 8x HiDrive Outs 8x OptoIns |
| SDIO | 36x digital I/O lines |
| Video Out | Optional LCD Display Board |
| Serial Ports | 2x RS232 |
| Primary I/O Misc. | DIGITAL I/O: 8x optically coupled inputs, 8 high drive outputs, 20 programmable unbuffered lines terminated to a 50 pin I/O rack compatible header connector. COMMUNICATION: 2x RS232 serial ports with interrupt support. |
| Secondary IO | |
|---|---|
| Timers/ Counters/ PWM | 2x 16-bit timers |
| Keypad | Yes
|
| Secondary I/O Misc. | TIMERS: 2x 16 bit timers with interrupt support and a watchdog timer. |
| Expansion | |
|---|---|
| Bus Expansion | 1x 50 pin |
| Analog | |
|---|---|
| A/D Channels | 16x 8/13 bit |
| A/D Channels | 16 |
| D/A Channels | 4x 8 bit |
| D/A Channels | 4 |
| A/D Resolution | 8/13 bit |
| D/A Resolution | 8 bit |
| Analog Misc. | ANALOG I/O: 16 channel, 8 bit analog to digital converter, or optional 16 channel, 12 bit plus sign analog to digital converter with sample/hold. |
Mechanical and Environmental
| Dimensions | |
|---|---|
| Size | 8.2" ×5.69" (208mm × 144mm) |
| Power Requirements | |
|---|---|
| Voltage | 12 V |
| Typical Current | 130 mA |
| Max Boot Current | 150 mA |
| Power Misc. | POWER REQUIRMENTS: Single Voltage supply operation from +8 Vdc to +15 Vdc (+12 Vdc recommended) with on board regulation. Maximum current draw is 150 ma., 130 ma typical. |
| Environmental | |
|---|---|
| Low Operating Temperature | 0 C (32 F) |
| High Operating Temperature | 60 C (140 F) |
| Upper Operating Humidity | 90% |
| Related Products | |
Pricing
Pricing correct as of January 2021. Please contact EMAC for Current Pricing and Lead Time. Due to volatility in the electronics industry pricing is subject to change.
OEM / Quantity Pricing Available on Request - Less Services
(Single Unit Pricing. Includes: Integration, Setup,Testing, & Enhanced Support)
| Product # | Description | Price |
|---|---|---|
| E301-01 | E301-01 | Call |
Peripheral Options
| Product # | Description | Price |
|---|---|---|
| Peripherals | ||
| E301-10 | EPAC 3000 Hardware Manual | $24.00 |
| E301-11 | E-Forth SBC180 Software Manual | $24.00 |
| E301-09 | MTBasic 180 Software Manual | $24.00 |
| E301-05 | RS-422/485 full Duplex com port | $19.00 |
| Keypads | ||
| E020-25 | 12 KEY MEM TELEPHONE STYLE KEYPAD | $25.00 |
| E020-21 | 16 KEY MEMBRANE HEX STYLE KEYPAD | $30.00 |
| Displays | ||
| E020-25 | 12 KEY MEM TELEPHONE STYLE KEYPAD | $25.00 |
| E020-31 | 20 CHAR. X 2 Line LCD backlit display | $65.00 |
| E020-24 | 240 X 128 Backlit Graphic LCD Display | $195.00 |
| Power Supplies | ||
| E010-11 | WALL TRANSFORMER 110V - 9 V 500 MA | $10.00 |
| E010-10 | WALL TRANSFORMER 110V - 12 V 800 MA | $10.00 |
| E010-15 | WALL TRANSFORMER 110V - 9 V 1 A | $18.00 |
| Analog & Digital I/O Boards | ||
| E301-03 | 12 bit PLUS sign Resoltion A/D Converter | $34.00 |
| E301-04 | 4 Channel, 8 bit Resolution D/A Converter | $59.00 |
| E010-02 | Transient spike protection for A/D | $19.00 |
| Date/Time Clocks | ||
| E010-04 | REAL TIME CLOCK/CALENDAR 128K BATTERY BACKED PROVISION (REQUIRES 128K RAM, 06-0724 OPTION) | $50.00 |
| Memory | ||
| E010-07 | 128K BY 8 BATTERY BACKED SOCKET (REQUIRES 128K RAM, 06-0724 OPTION) | $29.00 |
| E010-09 | 32K by 8 Battery Backed RAM Module | $39.00 |
| E010-12 | 128K by 8 Battery Backed RAM Module | $39.00 |
| Operating Systems | ||
| E301-08 | E-Forth SBC180 EPROM and Manual | $99.00 |
| E301-07 | MTBasic 180 EPROM and Manual | $99.00 |
