SBC-456
15spi211SS23 The SBC-465 is EOL, please consider one of the Half-ISA alternates that is currently available, the VSX-6124, VDX-6324 or VDX2-6524

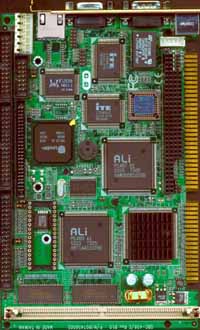

The SBC-456 is an all-in-one single board 486 computer with an on-board flat panel VGA/LCD controller. It packs all the functions and display capabilities of an industrial computer onto a single, half-size card. The SBC-456 is particularly suited for embedded applications.
Features
- Onboard AMD 486DX5-133 CPU (SQFP)
- SM712 LCD controller with 2MB EDO memory
- One 10/100Base-T Fast Ethernet
- Supports DiskOnChip® up to 1GB and Compact Flash™ Memory
- Four Com Ports
- PC/104 expansion connector
Overview
The SBC-456 is an all-in-one single board 486 computer with an on-board flat panel VGA/LCD controller. It packs all the functions and display capabilities of an industrial computer onto a single, half-size card. The SBC-456 is particularly suited for embedded applications.
The on-board PCI-bus controller uses the SM-712 chipset with 2 MB of SGRAM video memory. This chipset, used with the local PCI-bus, enables 32-bit graphic throughput at up to 33 MHz. Excellent for display-intensive applications, it supports various LCD types, including TFT, STN, B/W and EL.
Another feature of the SBC-456 is the inclusion of a high speed, local bus IDE controller. This controller supports (through ATA PIO) mode 3 and mode 4 hard disks, enabling data transfer rates in excess of 11 MB/second. Up to four IDE devices can be connected, including large hard disks, CD-ROM drives, tape backup drives or other IDE devices. The built-in, enhanced IDE controller provides a 4-layer, 32-bit, posted write-buffer and a 4-layer, 32-bit read-prefetch buffer to boost IDE performance.
On-board features include a DiskOnChip® Socket, a CompactFlash™ Socket, three high-speed RS-232 serial ports with 16C550 UARTs, one high-speed RS-232/422/485 serial port, one bi-directional SPP/EPP/ECP parallel port and a floppy-drive controller. In addition to the 486's 16 KB of on-chip cache memory, the SBC-456 includes an extra 128 KB of second level on-board cache memory and 10/100Base-T Ethernet support.
If program execution is halted by a program bug or EMI, the board's 16-stage watchdog timer can automatically reset the CPU or generate an interrupt. This ensures reliability in unmanned or standalone systems.
The SBC-456 supports 5 V FPM/EDO DRAM with 8 MB on-board. It also provides one 72-pin SIMM (Single In-line Memory Module) socket for its on-board system DRAM. This socket gives you the flexibility to configure your system from 8 MB up to 64 MB of DRAM.
| Manuals |
|---|
| Data Sheets |
|---|
Specifications
| Processor | |
|---|---|
| CPU | AMD 486DX5-133 |
| Processor Misc. |
|
| Memory | |
|---|---|
| RAM | Up to 64MB 2x 72-pin sockets |
| Primary Flash | 1GB Compact Flash Disk |
| BIOS/ Bootloader | AMI 128KB Flash BIOS |
| Primary IO | |
|---|---|
| Disk Interface | 1x IDE, 1x FDD |
| Ethernet | 10/100BaseT RJ-45 Realtek RTL8139C |
| Serial Ports | 1x Parallel, 3x RS-232, 1x RS-232/422/485 |
| Primary I/O Misc. |
|
| Secondary IO | |
|---|---|
| Display | |
|---|---|
| Chipset | SM-712 |
| Resolution | 1024 x 768@ 16bpp colors |
| Expansion | |
|---|---|
| Bus Expansion | 1x PC/104, 1x ISA bus |
Mechanical and Environmental
| Dimensions | |
|---|---|
| Size | 7.3" ×4.8" (185mm × 121mm) |
| Weight | 0.66 kg |
| Power Requirements | |
|---|---|
| Voltage | 5 V |
| Power Misc. | Battery: Lithium battery |
| Environmental | |
|---|---|
| Low Operating Temperature | 0 C (32 F) |
| High Operating Temperature | 60 C (140 F) |
| Related Products | |
Pricing
Pricing correct as of January 2021. Please contact EMAC for Current Pricing and Lead Time. Due to volatility in the electronics industry pricing is subject to change.
OEM / Quantity Pricing Available on Request - Less Services
(Single Unit Pricing. Includes: Integration, Setup,Testing, & Enhanced Support)
| Product # | Description | Price |
|---|---|---|
| SBC-456-0 | 486 SBC W/ 8 MB/ ISA/ PC104 | Call |
| SBC-456E | 486 SBC W/ 8 MB/ ISA/ PC104/ Ethernet | Call |
