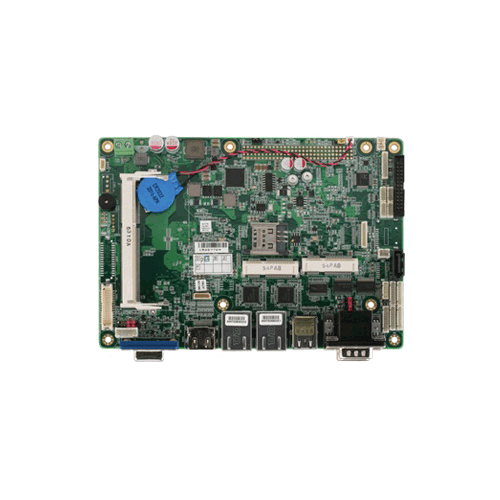

PCM-9365 is 3.5" form factor (146 x 102 mm) and powered by the latest generation of Intel® Celeron® N2930 and Atom™ E3825 processors which have low power features but also good performance computing, especially for multimedia capabilities compared to earlier generations. Meanwhile, PCM-9365 offers flexible expansion possibilities: two full-size mini PCIe, PCI-104, and the 2nd LVDS by request. PCM-9365 supports various display interfaces including HDMI, VGA, and 48-bit LVDS, and rich I/O: 2 x GbE, SATA, mSATA, 4xSerial Ports, USB 3.0 and 5 x USB 2.0.
The CPU is EOL for this product, please see this article for more information
The PCM-9375 is based on the AMD LX800 500Mhz CPU and is designed to provide the ideal combination of low power, great performance, widely expanded interfaces and small size for applications that require a small form factor and lower-scale processor support. **Flash Disk and Memory not included.**
The AIMB-215 B1 with Intel® Celeron™ J1900/N2930/N2807 processor is designed for industrial applications that require enhanced computing performance and power management capabilities.

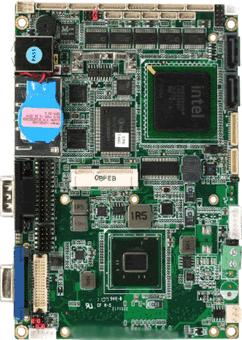

PCM-LN05
15ppi611PP23 The PCM-LN05 is a cutting-edge product that provides high performance and low power consumption for the embedded market. The PCM-LN05 adopts the latest Intel® Atom processors and supports DDR3 667/800 SODIMM RAM Max 4GB for D525; Max 2GB for N455. Additionally, the PCM-LN05 supports Dual 10/100/1000Base-T Ethernet that allows for faster network connections. This PCM-LN05 also supports one Mini Card, one LPC Bus expansion, two SATA 3.0 Gb/s (optional RAID 0 &1), and one Type II CompactFlash. In addition to the diverse storage and expansion, the PCM-LN05 provides seven USB2.0, six COM, one parallel, and one keyboard/mouse ports. **Flash Disk and Memory not included.**
Features
- Embedded Intel® Atom N455 Single Core 1.66GHz / D525 Dual Core 1.8GHz
- Up to 4 DDR3 667/800 SODIMM on D525; Max 2GB for N455
- 2x Gigabit Ethernet ports (Intel® 82567V & Intel® 82583V)
- 7x USB 2.0 ports
- 5x RS232 Serial, 1x RS232/422/485 Serial ports
- 8-Bit Digital I/O
- 2x SATA 3.0Gb/s (Optional RAID 0 & 1)
- CompactFlash™
- 1x Mini-PCIe Mini Card (PCIe and USB)
- Onboard 4/5/8-wire Resistive Touch Screen Controller
Overview
The PCM-LN05 is a cutting-edge product that provides high performance and low power consumption for the embedded market. The PCM-LN05 adopts the latest Intel® Atom processors and supports DDR3 667/800 SODIMM RAM Max 4GB for D525; Max 2GB for N455. Additionally, the PCM-LN05 supports Dual 10/100/1000Base-T Ethernet that allows for faster network connections. This PCM-LN05 also supports one Mini Card, one LPC Bus expansion, two SATA 3.0 Gb/s (optional RAID 0 &1), and one Type II CompactFlash. In addition to the diverse storage and expansion, the PCM-LN05 provides seven USB2.0, six COM, one parallel, and one keyboard/mouse ports.
The PCM-LN05 supports CRT/LCD simultaneous/dual view displays and 18/24-bit single channel LVDS. The PCM-LN05 is developed to cater to the requirements of Automation, Medical, ticket machine, transportation, gaming, KIOSK, and POS/POI applications.
**Flash Disk and Memory not included.**
| Manuals | |
|---|---|
| pcm-ln05.pdf | Download (PDF) |
| Data Sheets | |
|---|---|
| GENE-LN05 Rev.B.pdf | Download (PDF) |
Specifications
| Processor | |
|---|---|
| CPU | Embedded Intel Atom D525 or N455 |
| Clock Speed | 1.8 GHz |
| Processor Misc. |
|
| Memory | |
|---|---|
| RAM | Upto 4GB DDR3 SODIMM |
| Primary Flash | 1x CompactFlash™ card Type II |
| BIOS/ Bootloader | AMI Plug & Play SPI BIOS - 2MB Flash |
| Memory Misc. |
|
| Primary IO | |
|---|---|
| GPIO | 1x 8-bit digital I/O support |
| Disk Interface | SATA |
| Audio | mic-In/line-in/line-out |
| Video Out | Intel Dual Display CRT/LCD up to 224 MB shared |
| Ethernet | Intel 82567V & 82583V 10/100/1000 with 2x RJ-45 connectors |
| USB | 7x USB 2.0 |
| Serial Ports | 5x RS-232, 1x RS-232/422/485 |
| Primary I/O Misc. |
|
| Secondary IO | |
|---|---|
| LPT Port | Yes
|
| PS/2 | Yes
|
| Display | |
|---|---|
| Display Type | CRT/LCD simultaneous/dual display |
| Chipset | Intel® N455/D525 integrated |
| Resolution | N455: 1280 x 1050 CRT |
| LVDS Interface | Supports 1 channel (18/24-bit) LVDS up to 1366 x 768 |
| Multi-Display | VGA+LTD |
| Expansion | |
|---|---|
| Bus Expansion | 1x Mini Card, 1x LPC Bus |
| Misc | |
|---|---|
| Operating Systems | EMAC OE Linux, MicroPython, ROM-DOS 6.22 / MS-DOS 6.22 |
Mechanical and Environmental
| Dimensions | |
|---|---|
| Size | 5.7" ×4" (144mm × 101mm) |
| Weight | 400 g (0 lbs) |
| Power Requirements | |
|---|---|
| Power Misc. |
|
| Environmental | |
|---|---|
| Low Operating Temperature | 0 C (32 F) |
| High Operating Temperature | 60 C (140 F) |
| Related Products | |
Pricing
Pricing correct as of January 2021. Please contact EMAC for Current Pricing and Lead Time. Due to volatility in the electronics industry pricing is subject to change.
OEM / Quantity Pricing Available on Request - Less Services
(Single Unit Pricing. Includes: Integration, Setup,Testing, & Enhanced Support)
| Product # | Description | Price |
|---|---|---|
| PCM-LN05D-5 | TF-GENE-LN05-B10-03, D525, 2x1.8GHz, 2x SATA, 6x COM, 7x USB2, 2x GbE, TS Controller, Audio, 8x DIO, CRT, LVDS +5V | Call |
| PCM-LN05N-5 | TF-GENE-LN05-B10-02, N455, 1x1.66GHz, 2x SATA, 6x COM, 7x USB2, 2x GbE, TS Controller, Audio, 8x DIO, CRT, LVDS, +5v | Call |
| PCM-LN05N-ET | TF-GENE-LN05W1-B10-01, N455, 1x1.66GHz, 2x SATA, 6x COM, 7x USB2, 2x GbE, TS Controller, Audio, 8x DIO, CRT, LVDS, +12V (-20°C ~ 70°C ) | Call |
| PCM-LN05N-WT | TF-GENE-LN05W2-B10-01, N455, 1x1.66GHz, 2x SATA, 6x COM, 7x USB2, 2x GbE, TS Controller, Audio, 8x DIO, CRT, LVDS, +12V (-40°C ~ 85°C ) | Call |
| PCM-LN05D | TF-GENE-LN05-B10, D525, 2x1.8GHz, 2x SATA, 6x COM, 7x USB2, 2x GbE, TS Controller, Audio, 8x DIO, CRT, LVDS, +12V | Call |
| PCM-LN05N | TF-GENE-LN05-B10-01, N455, 1x1.66GHz, 2x SATA, 6x COM, 7x USB2, 2x GbE, TS Controller, Audio, 8x DIO, CRT, LVDS, +12V | Call |
