PCM-53E52
15ppi211PP23 The PCM-53E52 is a compact Half-EBX board with PC/104+, SSD, Ethernet, and four COM ports. Unlike other compact Half-EBX boards, the PCM-53E52 has an optional Analog and Digital I/O Daughter Board, allowing for data acquisition and greater flexibility.
Features
- Compact size (145 mm x 102 mm). Fits in the space of a 3½" HDD
- ISA and PCI bus expansion with onboard PC/104+ connector
- Onboard ELAN SC520 133MHz embedded microprocessor
- Supports M-Systems’ DiskOnChip® 2000 Flash memory
- Onboard 10/100 Base-T Ethernet interface
- Onboard 32MB SDRAM memory
- Onboard mini-DIN PS/2 keyboard/ mouse connector
- Built-in Enhanced IDE hard disk drive interface, floppy disk interface and parallel port
- Four serial ports: three RS-232 and one RS-232/422/485; on-board DB-9 connector is designated as COM1
- Single +5 V power supply
- Flexible OEM/ODM design
Overview

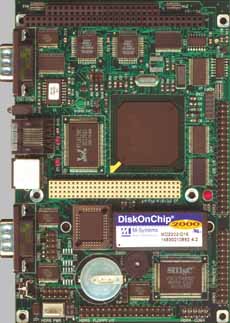

The PCM-53E52 is a compact Half-EBX board with PC/104+, SSD, Ethernet, and four COM ports. Unlike other compact Half-EBX boards, the PCM-53E52 has an optional Analog and Digital I/O Daughter Board, allowing for data acquisition and greater flexibility.
The PCM-53E52 features a low power AMD® ELAN-SC520 133 MHz processor (no fan required, 486/586 class processor roughly equivalant to a P120). This compact Half-EBX board has on board, 32MB of SDRAM memory standard. A 64MB and 128MB memory upgrade option is also available as is a DiskOnChip® 2000 (DOC) solid state flash disk (no moving parts). The PCM-53E52 can be connected onto a network using the Realtek™ RTL8139C 10/100Base-T Ethernet controller and onboard RJ-45 connector. In addition, the PC/104+ connectors provide both ISA and PCI connectivity.
The PCM-53E52 offers three RS-232 serial ports, one RS-232/422/485 serial port, and a parallel port that supports SPP/EPP/ECP parallel modes. This board includes a mini-DIN keyboard/mouse connector, an onboard 34-pin FDD interface that supports two floppy disk drives, and an onboard 44-pin EIDE interface that supports two EIDE devices. The PCM-53E52 is 5.75" in length and 4" wide, making it a great fit for harsh environment and limited-space applications.
Specifications
| Processor | |
|---|---|
| CPU | Onboard ELAN SC520 |
| Clock Speed | 133 MHz |
| Memory | |
|---|---|
| RAM | Up to 128MB SDRAM On-board |
| BIOS/ Bootloader | General Software |
| Memory Misc. |
|
| Primary IO | |
|---|---|
| Disk Interface | 2x EIDE |
| Ethernet | 10/100 Base-T Ethernet Realtek™ RTL8139C with on-Board RJ-45 connector |
| Serial Ports | 3x RS-232, 1x RS-232/422/485 |
| Primary I/O Misc. |
I/O Daughter Board Option
|
| Secondary IO | |
|---|---|
| PS/2 | Yes
|
| Expansion | |
|---|---|
| Bus Expansion | 1x PC/104+ |
| Misc | |
|---|---|
| Operating Systems | EMAC OE Linux |
| Operating Systems Compatibility |
|
| Misc. | I/O Daughter Board
|
Mechanical and Environmental
| Dimensions | |
|---|---|
| Size | 5.7" ×4" (144mm × 101mm) |
| Weight | 170 g (0 lbs) |
| Power Requirements | |
|---|---|
| Voltage | 5 V |
| Typical Voltage | 5 V |
| Typical Current | 1.5 mA |
| Environmental | |
|---|---|
| Low Operating Temperature | 0 C (32 F) |
| High Operating Temperature | 60 C (140 F) |
| Related Products | |
Pricing
Pricing correct as of January 2021. Please contact EMAC for Current Pricing and Lead Time. Due to volatility in the electronics industry pricing is subject to change.
OEM / Quantity Pricing Available on Request - Less Services
(Single Unit Pricing. Includes: Integration, Setup,Testing, & Enhanced Support)
| Product # | Description | Price |
|---|---|---|
| PCM-53E52-010 | SC520-133 SBC w/ 32MB SDRAM | $320.00 |
| PCM-53E52-020 | SC520-133 SBC w/ 64MB SDRAM | $340.00 |
| PCM-53E52-030 | SC520-133 SBC w/ 128MB SDRAM | Call |
