PCM-4153

This product is End-of-Life. Please contect our Sales Department for the recommended replacement.

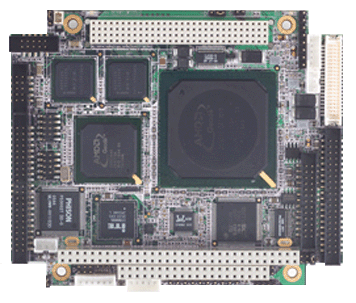

The PCM-3353 utilizes an onboard Ultra-Low Voltage Fanless AMD Geode LX800 500 MHz processor, which makes the PCM-3353 one of the smallest and most energy efficient x86 SBCs on the market. The PCM-3353 gives developers a low power, low cost and scalable platform that can fit into the tightest places. PC/104+, PCI/104 and PC/104 expansion allows features to be quickly added using any one of EMAC’s many PC/104, PC/104+, or PCI/104 expansion modules.

Features

  • AMD Geode LX800/500 MHZ Fanless Processor
  • 200-pin SO-DIMM up to 1GB DDR DRAM
  • 18/24 Bit TFT & 18 Bit LVDS Video Interfaces
  • Support Dual Independent Display (CRT, LVDS and TTL LCD)
  • Intel 82551ER 10/100 Base-T Ethernet, Optional Dual Ethernet
  • AC97 Audio Interface
  • 4 x USB Ports
  • 4 x Serial Ports
  • Optional Extended Temperature
  • Compact Flash Socket
  • Supports PC/104 and PCI PC/104+ Interface

Overview

The PCM-3353 utilizes an onboard Ultra-Low Voltage Fanless AMD Geode LX800 500 MHz processor, which makes the PCM-3353 one of the smallest and most energy efficient x86 SBCs on the market. The PCM-3353 gives developers a low power, low cost and scalable platform that can fit into the tightest places. PC/104+, PCI/104 and PC/104 expansion allows features to be quickly added using any one of EMAC’s many PC/104, PC/104+, or PCI/104 expansion modules. The PCM-3353 is perfect for applications such as data acquisition and industrial automation where low power in a limited space is required.

The PCM-3353 uses its onboard Geode graphic chipset that provides excellent graphics performance and provides flat panel support using digital dual independent displays with CRT, LVDS, and TTL interfaces. An SDRAM memory capacity of up to 1GB is large enough to accommodate the latest operating systems, including Linux, RTAI Real-Time Linux, Microsoft Windows XP/XPE, Windows CE 6.0, Windows Vista and DOS 6.22. Four USB 2.0 ports are available as well as 4 serial ports (Three RS-232 & One RS-232/422/485). With its high grade reliability, the PCM-3353 can operate continuously at temperatures up to 140º F (60º C) without a fan. A Industrial temperature version is available that extends its temperature rating to -40º to 85 º C. The numerous features provide an ideal price/performance solution for industrial applications where stability and reliability (no moving parts) are essential.

Specifications

Processor
CPU
AMD Geode LX800
Clock Speed
500 MHz
Processor Misc.
  • L2 Cache: 128 KB
  • Chipset: AMD Geode LX800
Memory
RAM
Up to 1GB DRAM 200-pin SO-DIMM
Primary Flash
supports one internal Type I CompactFlash™ socket
BIOS/ Bootloader
AWARD 4Mbit Flash BIOS
Memory Misc.
  • Flash Memory: On-Board Flash 1GB
Primary IO
Disk Interface
1x EIDE which supports 2x IDE Drives
Audio
AC97 2.0 with mic-In/line-in/line-out support
Video Out
AMD CS5536 CRT/LCD 4 - 64 MB Shared
Ethernet
Intel 82551ER 10/100 Base-T Ethernet
USB
4x USB 2.0
Serial Ports
3x RS-232, 1x RS-232/422/485
Secondary IO
Display
Display Type
Flat Panel and CRT displays
Chipset
AMD Geode LX800
Resolution
Up to 1920 x 1440 @ 32 bpp
Expansion
Bus Expansion
1x PC/104, 1x PCI PC/104+
Misc
Operating Systems
EMAC OE Linux, MicroPython, FreeRTOS
Operating Systems Compatibility

RTAI Real-Time Linux

Mechanical and Environmental

Dimensions
Size
4.5" ×3.8" (114mm × 96mm)
Power Requirements
Typical Voltage
5 V
Typical Current
1.35 mA
Environmental
Low Operating Temperature0 C (32 F)
High Operating Temperature60 C (140 F)
Environmental Misc.
  • Optional Wide Temp: -20 to 80°C
  • Optional Industrial Temp: -40 to 85 °

Pricing

Pricing correct as of January 2021. Please contact EMAC for Current Pricing and Lead Time. Due to volatility in the electronics industry pricing is subject to change.

OEM / Quantity Pricing Available on Request - Less Services

(Single Unit Pricing. Includes: Integration, Setup,Testing, & Enhanced Support)

Product # Description Price
PCM-4153F-L 500MHZ PC/104+ W/DUAL LAN/On-board Flash & RAM $398.00
PCM-4153Z-L 500MHZ W/DUAL LAN/On-board Flash&RAM/wide temp (NCNR) $497.00
PCM-4153Z2-L 500MHZ W/DUAL LAN/On-board Flash&RAM/Industrial temp (NCNR) $601.00

Additional Options
