PCM-3350
15ppi311PP32 The CPU is EOL for this product, please see this article for more information.
Overview
The CPU is EOL for this product, please see this article for more information.

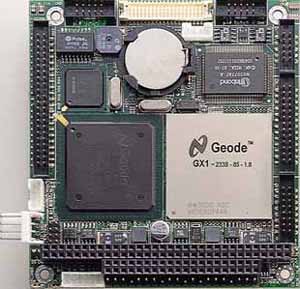

The PCM-3350, with its GX1-300 MHz onboard processor and low power fanless performance, represents EMAC's next generation of high speed, low power PC/104 family of products. The stable Geode processor, onchip PCI VGA for VGA and TFT LCD support and rock solid Intel® 82559 ER High performance Ethernet chip, provide amazing power and functionality. The ability to stack a full range of PC/104 modules such as sound, PCMCIA, GPS, additional LAN, plus many others, greatly expands the range of applications.
The PCM-3350 has all the power and features indicative of larger CPU control boards, but checks in at the standard PC/104 size of 96 mm x 90 mm. It has 256 KB Flash memory, a 144-pin SODIMM socket which can accept up to 256 MB SDRAM, and support for up to two EIDE devices. It supports up to two FDDs plus one serial RS-232 port and one RS-232/422/485 port. There are two USB 1.0 compliant ports, one parallel port and a mini-DIN connector that supports a standard PS/2 keyboard and mouse. There is a CompactFlash™ socket that can act as an emulated hard drive as well. An 18-bit TFT LCD panel is supported with flat panel display resolution up to 1024 x 768 @ 18 bpp. Non-interlaced CRT monitor resolutions up to 1024 x 768 @ 24 bpp are also supported. Along with APM 1.1 power management, an infrared port and watchdog timer support, the PCM-3350 has all the features that make it a full-featured performer in any computer class.
| Manuals |
|---|
| Data Sheets |
|---|
Specifications
| Processor | |
|---|---|
| CPU | Embedded Low power NS Geode |
| Clock Speed | 300 MHz |
| Memory | |
|---|---|
| RAM | 256MB 1x 144-pin SODIMM |
| Primary Flash | 1x CompactFlash™ card |
| BIOS/ Bootloader | Award 256 KB Flash memory |
| Primary IO | |
|---|---|
| Disk Interface | 1x FDD, 2x EIDE (Ultra DMA33) |
| Serial Ports | 1x Parallel SPP/EPP/ECP, 1x RS-232, 1x RS-232/422/485 |
| Primary I/O Misc. |
|
| Secondary IO | |
|---|---|
| PS/2 | Yes
|
| Display | |
|---|---|
| Display Type | Supports VGA and TFT LCDs. Able to display both CRT and Flat Panel simultaneously |
| Chipset | NS CS5530 |
| Expansion | |
|---|---|
| Bus Expansion | 1x PC/104 |
| Misc | |
|---|---|
| Operating Systems | EMAC OE Linux, FreeRTOS |
Mechanical and Environmental
| Dimensions | |
|---|---|
| Size | 3.77" ×3.54" (95mm × 89mm) |
| Weight | 0.11 kg |
| Power Requirements | |
|---|---|
| Voltage | 5 V |
| Max Boot Current | 2 A |
| Environmental | |
|---|---|
| Low Operating Temperature | 0 C (32 F) |
| High Operating Temperature | 60 C (140 F) |
| Upper Operating Humidity | 95% |
| Environmental Misc. | Storage Temperature: -40° ~ 85°C (-40° ~ 185°F) |
| Related Products | |
Pricing
Pricing correct as of January 2021. Please contact EMAC for Current Pricing and Lead Time. Due to volatility in the electronics industry pricing is subject to change.
OEM / Quantity Pricing Available on Request - Less Services
(Single Unit Pricing. Includes: Integration, Setup,Testing, & Enhanced Support)
| Product # | Description | Price |
|---|---|---|
| PCM-3350F | Geode 300MHZ PC/104 SBC W/ CRT/LCD, LAN, USB | Call |
| PCM-3350Z2 | PCM-3350 W/ -40°C TO +85°C operation temp | Call |
Peripheral Options
| Product # | Description | Price |
|---|---|---|
| Cables & Adapters | ||
| CAB-20-001-1 | 44-pin to dual 40-pin EIDE Cable | $20.00 |
| CAB-40-005-1 | USB CABLE FOR PCM-3350 | $11.00 |
| 1703100260 | RS422/485 ACCESS CABLE | $12.00 |
