PCM-3348

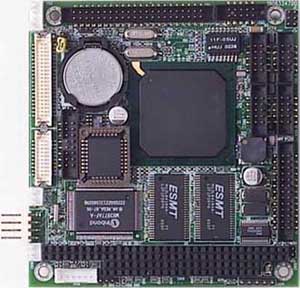

15ppi311 32 EMAC's new PC/104 module, the PCM-3348, has all the functions and power of a standard full-size PC, but in the form factor of an industry standard PC/104 (3.5 x 3.8 in., 90 x 96 mm.). This makes it one of the smallest, most complete SBCs on the market.
Features
- On-board 133MHz STPC Consumer II processor (fanless)
- On-Chip VGA/LCD display controller
- On-board memory 64 MB
- Award BIOS
- 62-level watchdog timer
- Supports 10/100Base-T Ethernet
Overview
EMAC's new PC/104 module, the PCM-3348, has all the functions and power of a standard full-size PC, but in the form factor of an industry standard PC/104 (3.5 x 3.8 in., 90 x 96 mm.). This makes it one of the smallest, most complete SBCs on the market.
Even though this module is so small, it still contains everything that a full-fledged computer does. This 486 based PC/104 CPU module has an on-board Video/LCD controller as well as 10/100Base-T Ethernet capability. The on-board LCD controller supports 36-bit video and has 2 MB display memory on chip. These features give our customers a complete, cost-effective board solution for applications that require network and Video or LCD panel support in a limited space environment.
This module supports Watchdog timer protection. On board, there is 64 MB memory, four serial ports and one parallel port, plus one IDE connector, allowing for as much peripheral expansion as most much larger size SBCs. This board also supports one CompactFlash™ card for use as an emulated HDD. EMAC provides several size options for CompactFlash™ cards up to over a Gigabyte of storage. Its on-board CPU is an STPC Consumer II 133Mhz from ST Thompson.
Specifications
| Processor | |
|---|---|
| CPU | ST Consumer II |
| Clock Speed | 133 MHz |
| Memory | |
|---|---|
| RAM | Up to 64MB SDRAM On-board |
| Primary Flash | 1x CompactFlash™ card |
| BIOS/ Bootloader | Award KB Flash BIOS |
| Primary IO | |
|---|---|
| Disk Interface | 1x FDD, 1x IDE |
| Ethernet | 10/100Base-T RTL8100 |
| Serial Ports | 3x RS-232, 1x RS-232/422/485, 1x Parallel |
| Primary I/O Misc. |
Display
|
| Secondary IO | |
|---|---|
| PS/2 | Yes
|
| Expansion | |
|---|---|
| Bus Expansion | 1x PC/104 |
| Misc | |
|---|---|
| Operating Systems | EMAC OE Linux, FreeRTOS |
Mechanical and Environmental
| Dimensions | |
|---|---|
| Size | 3.8" ×3.5" (96mm × 88mm) |
| Weight | 0.11 kg |
| Power Requirements | |
|---|---|
| Voltage | 5 V |
| Typical Voltage | 5 V |
| Typical Current | 1.7 A |
| Environmental | |
|---|---|
| Low Operating Temperature | 0 C (32 F) |
| High Operating Temperature | 70 C (158 F) |
| Related Products | |
Pricing
Pricing correct as of January 2021. Please contact EMAC for Current Pricing and Lead Time. Due to volatility in the electronics industry pricing is subject to change.
OEM / Quantity Pricing Available on Request - Less Services
(Single Unit Pricing. Includes: Integration, Setup,Testing, & Enhanced Support)
| Product # | Description | Price |
|---|---|---|
| PCM-3348F | Consumer II 133 MHZ, 64MB, LCD & LAN | Call |
