PCA-6782

This product is End-of-Life. Please contact our Sales Department for the recommended replacement or consider.

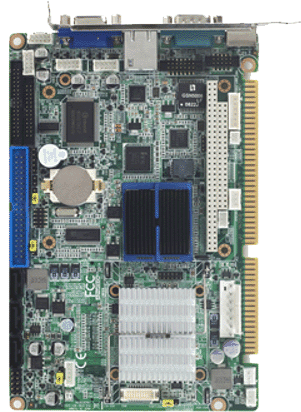

PCA-6782 is an Intel® Atom™ dual-core D525 / fanless N455 CPU based ISA-interface half-size single board computer. With high performance Atom D525 dual-core computing power, it is ideal for intense data or graphic processing applications; with fanless Atom™ N455 CPU, it has ultra high reliability to resist heat, dust, vibration and shock in any application environment. **Flash Disk and Memory not included.**

Features

  • Embedded Atom N455 1.66GHz / D525 1.8GHz
  • Fanless, 0 ~ 60°C (32 ~ 140°F) operation
  • 10/100/1000Base-T Fast Ethernet Connections
  • Dual Display: VGA + LVDS
  • ISA bus interface

Overview

PCA-6782 is an Intel® Atom™ dual-core D525 / fanless N455 CPU based ISA-interface half-size single board computer. With high performance Atom D525 dual-core computing power, it is ideal for intense data or graphic processing applications; with fanless Atom™ N455 CPU, it has ultra high reliability to resist heat, dust, vibration and shock in any application environment.

PCA-6782 is designed with an Intel® Atom™ D525/N455 CPU and ICH8M I/O control hub. The Atom™ D525 dual core CPU brings new generation computing capability into the half-size SBC application field. Compact size, low power consumption (Total power consumption ≤ 17.62 W) and dual-core parallel computing power and maximum 2 GB of DDR2 667 MHz memory capacity makes the PCA-6782D a powerful small form-factor computer platform for modern industrial applications that require high computing power. The fanless Atom™ N455 CPU (Total power consumption ≤ 12.56 W) is ideal for data-acquisition, environment monitoring system and factory automation that requires no air flow environments.

PCA-6782 has an integrated graphic core of Intel Embedded Gen3.5+ graphic technology with 224 MB shared memory. This feature makes PCA-6782 is capable of handling complex and intense 2D/3D graphic processing without an add-on graphic card; its VGA and LVDS dual video outputs also makes it suitable for applications requiring dual display or digital panel display capabilities.

PCA-6782 is rich in I/O interfaces: it has three SATA ports (300 MB/sec) for mainstream SSD (solid state disk), HDD, and ODD connections, one legacy IDE port for the ODD connection. It also has a CF socket to support an economical, easy-to maintain SSD device. Additionally, the two serial ports can be used as reliable legacy device control interfaces.



**Flash Disk and Memory not included.**

Manuals
PCA-6782_user_manual_Ed-1_FINAL.pdf
Download (PDF)
Data Sheets
PCA-6782_DS.pdf
Download (PDF)

Specifications

Processor
CPU
Intel Atom N455
Clock Speed
1.66 GHz
Processor Misc.
  • Optional Processor: Intel Atom D525 1.8 GHz
  • Chipset: Intel ICH8M
Memory
RAM
Up to 2GB DDR2 667 MHz
BIOS/ Bootloader
AMI 16 Mbit SPI Flash
Primary IO
Disk Interface
1x EIDE which supports 2x IDE Drives, 3x SATA
Audio
Intel High Definition audio interface requires an audio extension module PN: PCA-AUDIO-HDA1E
Video Out
Intel® ICH8M CRT/LVDS
Ethernet
10/100/1000 Base-T with a RJ45 connector and LAN1 Intel 82567V controller
USB
8x USB 2.0
Serial Ports
2x RS-232, 1x Parallel EPP/ECP
Primary I/O Misc.
  • Optional Serial Ports: 4x RS-485 with auto-flow control

Display

  • Chipset: Embedded Gen3.5+ GFX Core technology, Direct X 9/Pixel Shader 2.0 compliant
  • Interface: 15 pin VGA D-sub connector x1/On-board LVDS pin header x 1 (supports single channel 18-bit LVDS)
  • Display mode:
    • VGA: Supports up to SXGA 1400 x 1050 @ 60 Hz
    • Dual Display: CRT + LVDS, support extended mode and clone mode
  • LVDS: Supports 18-bit single channel and up to WXGA 1366 x 768 or 1280 x 800
  • VRAM:Shared 224 MB
Secondary IO
PS/2
Yes
Secondary I/O Misc.
FDD interface: Supports one floppy disk drive
Expansion
Bus Expansion
1x ISA bus
Misc
Operating Systems
EMAC OE Linux, MicroPython, FreeRTOS

Mechanical and Environmental

Dimensions
Size
7.3" ×4.8" (185mm × 121mm)
Weight
300 g (0 lbs)
Power Requirements
Power Misc.

Power supply Voltage: +5V , +12V, +3.3V, +5VSB, -5V, -12V
Environmental
Low Operating Temperature0 C (32 F)
High Operating Temperature60 C (140 F)
Related Products
PCA-6763

Pricing

Pricing correct as of January 2021. Please contact EMAC for Current Pricing and Lead Time. Due to volatility in the electronics industry pricing is subject to change.

OEM / Quantity Pricing Available on Request - Less Services

(Single Unit Pricing. Includes: Integration, Setup,Testing, & Enhanced Support)

Product # Description Price
PCA-6782D ATOM D525 1.8 GHZ HALF ISA W/ GLAN/8x USB $333.00
PCA-6782N ATOM N455 1.66GHZ HALF ISA W/ GLAN/8x USB $308.00

Peripheral Options

Product # Description Price
Operating Systems
SL05x-XON-xx EMAC OE Linux 5.x for x86 (Free installation at time of purchase of SBC & media) Free
SL013-AMN-00060 Xenomai Real-Time Extensions (one-time charge) Call
SX300-000-0000D Windows Embedded Standard 2009 (WES09) & License (Base configured installation included with License, Flash and SBC purchase; SOLD ONLY WITH HARD DRIVE OR FLASH DRIVE MEDIA) $125.00
SD622-000-0010 MS-DOS 6.22 - MSDOS 6.22 LICENSE MS-DOS 6.22 LICENSES are EOL and no longer SOLD, see ROM-DOS 6.22 Part number: SD622-000-0005 as alternate. Call
SD622-000-0005 ROM DOS 6.22 - ROM DOS 6.22 LICENSE ROM-DOS IS GUARANTEED BY DATALIGHT TO BE 100% COMPATIBLE WITH MS-DOS 6.22 ROM-DOS LICENSES SOLD ONLY WITH HARD DRIVE OR FLASH DRIVE MEDIA $35.00
SC600-000-0010D Windows CE 6.0 Pro License (Basic configured installation included with License, Flash and SBC purchase; SOLD ONLY WITH HARD DRIVE OR FLASH DRIVE MEDIA) $25.00
