The CPU is EOL for this product, please see this article for more information. The PCM-5315 is based on the AMD Geode LX800/900 500/600 Mhz CPU and is designed to provide the ideal combination of low power, great performance, widely expanded interfaces and small size for applications that require a small form factor and lower-scale processor support. **CompactFlash card and RAM not included.**
CutiPy Product Video:
The CuTiPy™ Industrial IoT microcontroller was created to simplify adding IOT connectivity to devices and machines in the Industrial systems environment. EMAC Inc. has created an easy-to-use, cost-effective industrial IoT board that can be implemented anywhere from the factory floor to a remote offsite location.
The CutiPy™ is a low-power IOT board that can be powered from a Li-Ion rechargeable battery. The CutiPy™ comes equipped with a Webserver, MODBUS & MQTT and has support for AWS Cloud services. The CutiPy™ provides a plethora of I/O including: RS233, RS485, CAN, USB, I2C, SPI, A/D, D/A, PWM, Hi-Drive GPIOs, LCD with Pushbuttons and SD Card Socket in addition to WiFi Wireless and Bluetooth 5.
See the Industrial IoT Development kit for the CutiPy™ at DEV-IIOTC . This Microcontroller Development Kit comes preloaded with operating software and includes basic hardware to get you started developing your IoT device the first day out of the box.
The MICROPAC series of Single Board Computers feature micro size with micro power consumption at a micro price.
MIO-2270 P-ITX
22Mpi111MM55
22Mpi211MM55
22Mpi111MM54 The CPU is EOL for this product, please see this article for more information.

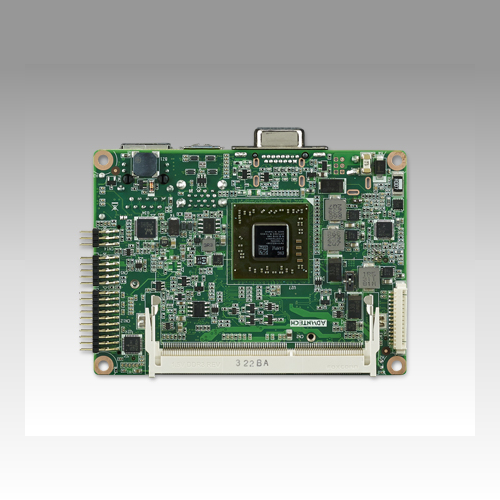

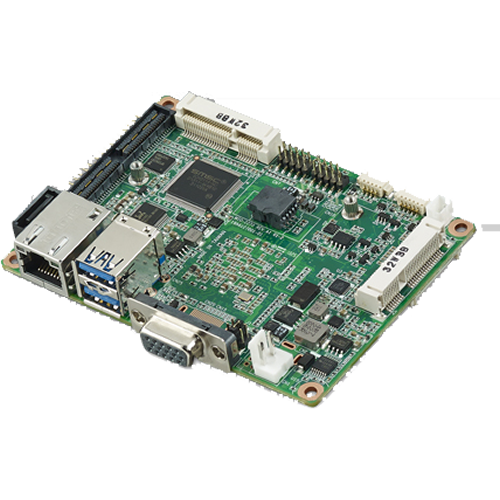

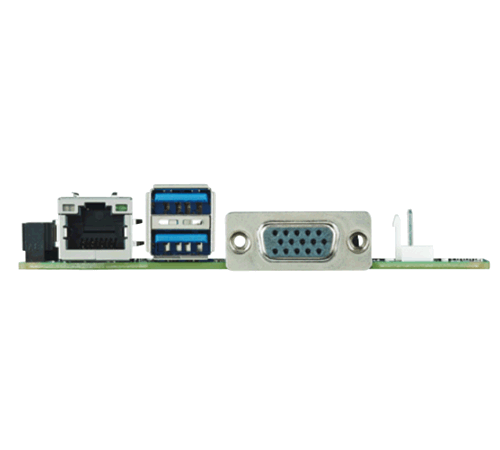

MIO-2270 is a MI/O-ultra single-board computer (SBC) with AMD® embedded Gseries SoC dual-core GX-210JA 1.0 GHz and quad-core GX-415GA 1.5 GHz processors. MIO-2270 supports up to 8 GB of DDR3 or DDR3L memory, features two USB 2.0 and two USB 3.0-compatible ports, one GbE (up to 1000 Mbps) interface, LVDS and VGA or HDMI support, high definition (HD) audio, and one half-size mini-PCIe and MIOe expansion slot. In addition, MIO-2270 accommodates one SATA drive, two COM ports, one SMBus, one GPIO and one half-size mSATA slot. The innovative multiple I/O (MI/O) extension SBC is equipped with flexible MI/O to assist integrators with developing optimized solutions.
Features
- AMD® G-series SoC Dual-Core 1.0 GHz (GX-210JA) / Quad-Core 1.5 GHz (GX-415GA)
- Up to 8GB DDR3 / DDR3L 1066 MHz for GX-210JA / 1600 MHz for GX-415GA
- 1x RS-232, 1 x RS-232/422/485
- 2x USB 2.0 Ports / 2x USB 3.0 Ports
- 10/100/1000 Mbps with RJ45
- VGA/LVDS/HDMI
- AMI EFI 32 Mbit Flash BIOS
- System Chipset: AMD® G-series SoC GX-210JA/GX-415GA
- Watchdog Timer
- 1x half-size mini PCIe slot
- 1x MIOe connector: supports 2 x USB 2.0, 2 x PCIe x1, LPC, HD audio lineout, SMBus, DP (or HDMI, supported upon request), 5 Vsb / 12 Vsb power
- 8-bit GPIO
- VGA: 2048 x 1536 60 Hz at 267 MHz Max
- LVDS: 18-bit LVDS1, up to 1600 x 900
- HDMI: Up to 1920 x 1200 (1080p)
- Dual independent display: VGA + LVDS or HDMI + LVDS
- 1x mSATA by Mini-PCIe socket (integrates USB signals, and supports either mSATA or USB interface modules)
- 1x SATAIII (600 MB/s maximum data transfer rate)
- 2D Acceleration/3D Acceleration
- Operating Temperature: 0 ~ 60˚ C (32 ~ 140˚F)
- Operational Humidity: 40˚ C @ 95% RH Non-Condensing
- 100 x 72 mm (3.9" x 2.8")
- Weight 0.45 kg (0.99 lb), weight of total package
- Total Height: 33.59mm for MIO-2270D / 40.89mm for MIO-2270Q
Overview
MIO-2270 is a MI/O-ultra single-board computer (SBC) with AMD® embedded Gseries SoC dual-core GX-210JA 1.0 GHz and quad-core GX-415GA 1.5 GHz processors. MIO-2270 supports up to 8 GB of DDR3 or DDR3L memory, features two USB 2.0 and two USB 3.0-compatible ports, one GbE (up to 1000 Mbps) interface, LVDS and VGA or HDMI support, high definition (HD) audio, and one half-size mini-PCIe and MIOe expansion slot. In addition, MIO-2270 accommodates one SATA drive, two COM ports, one SMBus, one GPIO and one half-size mSATA slot. The innovative multiple I/O (MI/O) extension SBC is equipped with flexible MI/O to assist integrators with developing optimized solutions.
| Manuals | |
|---|---|
| MIO-2270_Manual.pdf | Download (PDF) |
| Data Sheets | |
|---|---|
| MIO-2270_DS.pdf | Download (PDF) |
Specifications
| Processor | |
|---|---|
| CPU | Embedded AMD® G-Series SoC GX-415GA/ GX-210JA |
| Clock Speed | 1.5 GHz |
| Processor Misc. | AMD® G-Series SoC GX-415GA Quad-Core 1.5 GHz
AMD® G-Series SoC GX-210JA Dual-Core 1.0 GHz
|
| Memory | |
|---|---|
| RAM | Up to 8GB DDR3/DDR3L 1600MHz/1066MHz |
| BIOS/ Bootloader | AMI EFI 32 Mbit |
| Primary IO | |
|---|---|
| GPIO | 8-bit GPIO |
| Disk Interface | 1x SATA III |
| Audio | Realtek ALC888S |
| Video Out | VGA/LVDS/HDMI |
| Ethernet | 10/100/1000 Mbps |
| USB | 2x USB 2.0 Ports / 2x USB 3.0 Ports |
| Serial Ports | 1x RS-232 / 1x RS-232/422/485 |
| Secondary IO | |
|---|---|
| Display | |
|---|---|
| Display Type | 2D/ 3D Acceleration Motion Video Acceleration |
| Chipset | AMD® G series SoC / DirectX®11.1 graphic with UVD4.2 / Open GL4.1 / Open CL 1.2 |
| CRT-VGA Interface | Up to 2048x1536 at 60Hz |
| LVDS Interface | Supports single channel 18-bit / LVDS Resolution: 1600 x 900 at 60 Hz/ 18bpp |
| HDMI/DVI Interface | Supports 1920x1200 at 60 Hz/ 24bpp |
| Multi-Display | VGA+LVDS or HDMI+LVDS |
| Expansion | |
|---|---|
| Bus Expansion | Half-size Mini PCIe / MIOe |
| Misc | |
|---|---|
| Operating Systems | EMAC OE Linux, MicroPython, ROM-DOS 6.22 / MS-DOS 6.22 |
Mechanical and Environmental
| Dimensions | |
|---|---|
| Size | 3.9" ×2.8" (99mm × 71mm) |
| Weight | 0.99 lb |
| Dimensions Misc. | 100 x 72 mm (3.9" x 2.8") 40.89mm (Height) for MIO-2270Q |
| Power Requirements | |
|---|---|
| Voltage | 12 V |
| Power Misc. | MIO-2270QH-S5A1E: w/ DDR3 1.05A @ 12V (12.6W), w/ DDR3L 1.02A @ 12V (12.24W) |
| Environmental | |
|---|---|
| Low Operating Temperature | 0 C (32 F) |
| High Operating Temperature | 60 C (140 F) |
| Upper Operating Humidity | 95% |
Pricing
Pricing correct as of January 2021. Please contact EMAC for Current Pricing and Lead Time. Due to volatility in the electronics industry pricing is subject to change.
OEM / Quantity Pricing Available on Request - Less Services
(Single Unit Pricing. Includes: Integration, Setup,Testing, & Enhanced Support)
| Product # | Description | Price |
|---|---|---|
| MIO-2270DV-S0A1E | Pico-ITX, MIO-2270D, GX-210JA DC, 2xCOM, 2xUSB3, 2xUSB2, 1xGbE, Audio, VGA ** Portions of this Product are made in China: Pricing is subject to change, due to the current US-China Trade Tariff Charges. Please contact EMAC for detailed price quote. | $240.00 |
| MIO-2270QH-S5A1E | Pico-ITX, MIO-2270QH, GX-415GA QC, 2xCOM, 2xUSB3, 2xUSB2, 1xGbE, Audio, HDMI ** Portions of this Product are made in China: Pricing is subject to change, due to the current US-China Trade Tariff Charges. Please contact EMAC for detailed price quote. | $360.00 |
| MIO-2270QV-S5A1E | Pico-ITX, MIO-2270Q, GX-415GA QC, 2xCOM, 2xUSB3, 2xUSB2, 1xGbE, Audio, VGA ** Portions of this Product are made in China: Pricing is subject to change, due to the current US-China Trade Tariff Charges. Please contact EMAC for detailed price quote. | $360.00 |
Peripheral Options
| Product # | Description | Price |
|---|---|---|
| Operating Systems | ||
| SL05x-XON-xx | EMAC OE Linux 5.x for x86 (Free installation at time of purchase of SBC & media) | Free |
| SX300-000-0000D | Windows Embedded Standard 2009 (WES09) & License (Base configured installation included with License, Flash and SBC purchase; SOLD ONLY WITH HARD DRIVE OR FLASH DRIVE MEDIA) | $125.00 |
| S7000-NOL-00020 | Windows Embedded Standard 7 (WES7) & License. SOLD ONLY WITH HARD DRIVE OR FLASH DRIVE MEDIA (EOL 10/13/2020) | $125.00 |
