As its name suggests, the EMB-BSW1 utilizes the latest iteration of Intel’s SoC products that was geared specifically towards mobile devices. In addition to enhancements brought on by the new chips, which include improved power consumption, thermals, and performance, the board itself carries a number of features to aid its designed purpose of digital signage, ATM, and POS applications.
Features
- Intel® N3710/N3060 Processor
- Up to 8 GB DDR3L 1333/1600 MHz 2x SODIMM
- Three Independent Display: 2x HDMI/DP(Default:HDMI, DP is population option BTO), LVDS/eDP(Default: LVDS)
- 3x SATA III 6.0 Gb/s
- 4x USB 3.0
- 2x USB 2.0
- Half-size Mini-Card (PCIe + USB)
- Full-size Mini-Card (mSATA Default) (PCIe + USB Optional BTO population) x 1
- 12-24V DC
- Low Profile
Overview

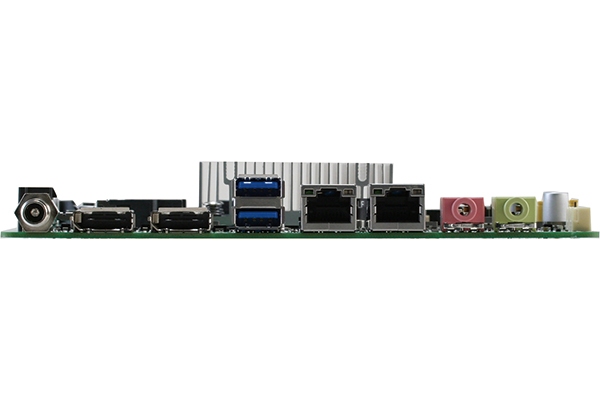

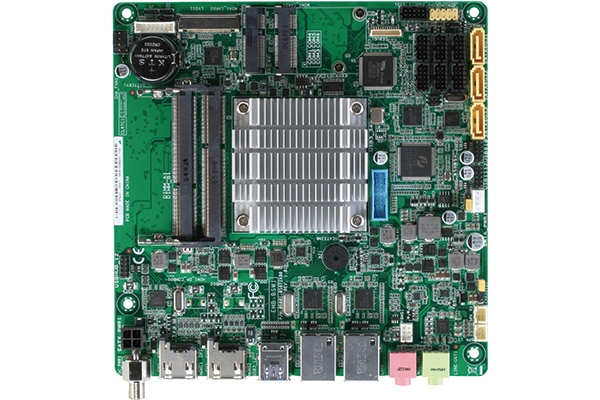

New Industrial Motherboard with the N3000 series CPU
As its name suggests, the EMB-BSW1 utilizes the latest iteration of Intel’s SoC products that was geared specifically towards mobile devices. In addition to enhancements brought on by the new chips, which include improved power consumption, thermals, and performance, the board itself carries a number of features to aid its designed purpose of digital signage, ATM, and POS applications.
Firstly, its power requirement is compliant to the industrial standard of 12 -24 V. It sports a low profile design that aims to minimize the room required for a chassis. The arrangement of some of the on-board components also revolves around this concept; the DP (DisplayPort)/HDMI combo port is featured for maximizing room available on the board, while offering more display options for the user.
Graphically, the board is capable of dual display from HDMI, DP, LVDS, and eDP options, which, when used individually, outputs 4K (HDMI/DP), and 2K (LVDS/eDP) resolutions. The board also carries a total of 10 USB ports (four USB 3.0, six USB 2.0), along with MiniCard slots for all of your expansion needs.
| Manuals | |
|---|---|
| EMB-BSW1_UM.pdf | Download (PDF) |
| Data Sheets | |
|---|---|
| EMB-BSW1_DS.pdf | Download (PDF) |
Specifications
| Processor | |
|---|---|
| CPU | Intel Braswell Celeron |
| Clock Speed | 2.56 GHz |
| Processor Misc. | Intel Braswell Family Pentium N3710 4 Cores 1.6GHz to 2.56GHz 6W Celeron N3060 2 Cores 1.6GHz to 2.48GHz 6W |
| Memory | |
|---|---|
| RAM | up to 8GB DDR3L 2x SODIMM Sockets |
| Primary Flash | mSATA |
| BIOS/ Bootloader | AMI BIOS |
| Primary IO | |
|---|---|
| GPIO | 8x DIO (4-in/4-out) |
| Disk Interface | 3x SATA |
| Audio | Realtek® ALC3236 Line-out and Mic-in |
| Video Out | 2x HDMI & 1x LVDS (2xDP Optional, eDP optional) |
| Ethernet | 2x GbE LAN (intel i211AT) |
| USB | 4x USB 3.0 & 6x USB 2.0 |
| Serial Ports | 6x COM (5x RS232, 1x RS232/422/485) |
| Primary I/O Misc. | Graphically, the board is capable of dual display from HDMI, DP, LVDS, and eDP options, which, when used individually, outputs 4K (HDMI/DP), and 2K (LVDS/eDP) resolutions |
| Secondary IO | |
|---|---|
| Display | |
|---|---|
| Chipset | Intel® HD Graphics |
| Resolution | Up to 2560 x 1600 @60 Hz or 3840 x 2160 @30Hz |
| LVDS Interface | Up to 1920 x 1200 @60Hz Dual Channel 18/24-bit (via CH7511) |
| HDMI/DVI Interface | Up to 2560 x 1600 @60 Hz 3840 x 2160 @30Hz |
| Multi-Display | Three independent displays (2x HDMI/DP + LVDS) |
| Expansion | |
|---|---|
| Bus Expansion | 2x Mini-Card (Mini-PCIe) |
| Bus Misc. | 1x Half-size Mini-Card (PCIe + USB) |
| Misc | |
|---|---|
| Operating Systems | EMAC OE Linux, ROM-DOS 6.22 / MS-DOS 6.22 , Windows Embedded Standard 2009 / WES09 (Windows XPE ) |
Mechanical and Environmental
| Dimensions | |
|---|---|
| Size | 6.7" ×6.7" (170mm × 170mm) |
| Weight | 0.5 kg |
| Power Requirements | |
|---|---|
| Power Misc. | 12-24V DC (wide range: 12V-5% ~ 24V +10%) |
| Environmental | |
|---|---|
| Low Operating Temperature | 0 C (32 F) |
| High Operating Temperature | 55 C (131 F) |
| Upper Operating Humidity | 90% |
Pricing
Pricing correct as of January 2021. Please contact EMAC for Current Pricing and Lead Time. Due to volatility in the electronics industry pricing is subject to change.
OEM / Quantity Pricing Available on Request - Less Services
(Single Unit Pricing. Includes: Integration, Setup,Testing, & Enhanced Support)
| Product # | Description | Price |
|---|---|---|
| EMB-BSW1-306R | EMB-BSW1-A10-3060, N3060 2x1.6 GHz, 2x SODIMM, mSATA, 3x SATA, 6x COM, 4x USB3, 2x USB2, 2x GbE, 2x HDMI, LVDS | $213.00 |
| EMB-BSW1-371R | EMB-BSW1-A10-3710, N3710 2x1.6 GHz, 2x SODIMM, mSATA, 3x SATA, 6x COM, 4x USB3, 2x USB2, 2x GbE, 2x HDMI, LVDS | $270.00 |
| Build-to-order | |
|---|---|
|
EMAC can build the EMB-BSW1 Mini-ITX with any option mix you require. Build-To-Order can offer a significant cost savings when only a certain subset of options are needed! 25 piece minimum required. |
Call for pricing |
