AIMB-213

This product is End-of-Life. Please contact our Sales Department for the recommended replacement or consider.

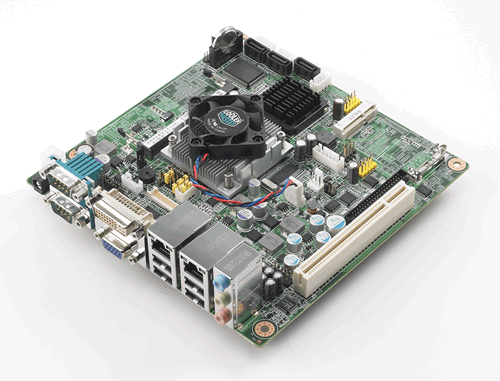

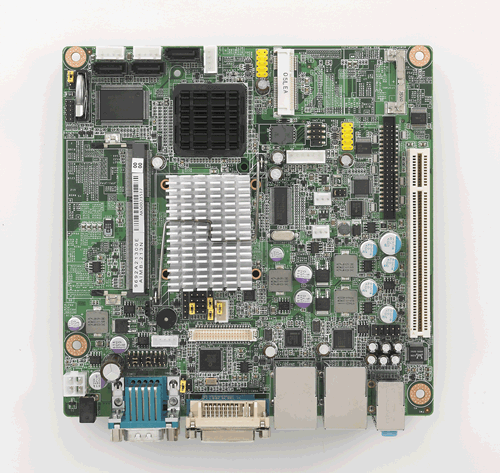

The AIMB-213 is designed with the Intel® Atom™ N455/D525 and the ICH8M for industrial applications that require both performance computing and enhanced power management capabilities. The motherboard has on board CPU Intel® Atom™ N455/ D525 1.66/1.8 GHz and DDR3 800 MHz up to 2/4 GB. The AIMB-213 offers cost-saving integrated graphics, built on the Intel® N455/D525 chipset and features the unique Intel® Extreme Graphics architecture that maximizes VGA performance and shares system memory up to 224 MB.

Features

  • Supports Intel® Atom™ processor N455 and D525 dual core
  • ƒƒ Two 204-pin SODIMM up to 2 GB/4 GB DDR3 800 MHz SDRAM
  • ƒƒ Supports 1 PCI and 1 Mini-PCIe expansion, 6 serial ports, 8 USB, and CF
  • ƒƒ Lower total cost of ownership with DC12V support and support 18/24-bit LVDS
  • ƒƒ Onboard TPM 1.2 support (optional)
  • ƒƒ Supports embedded software APIs and Utilities

Optional Part Numbers
1700003195
USB cable with two ports, 17.5 cm

1700002204
USB cable with two ports, 27 cm

1700008461
USB cable with four ports, 30.5 cm

1757003082
Adapter AC100-240V 60 W +12V/5A FSP

1757003062
Adapter AC100-240V 60W +12V/5A(Delta)

1700018699
KBMS cable 1*6P-2.5/DIN-6P(F)*2, 25 cm

Overview

The AIMB-213 is designed with the Intel® Atom™ N455/D525 and the ICH8M for industrial applications that require both performance computing and enhanced power management capabilities. The motherboard has on board CPU Intel® Atom™ N455/ D525 1.66/1.8 GHz and DDR3 800 MHz up to 2/4 GB. The AIMB-213 offers cost-saving integrated graphics, built on the Intel® N455/D525 chipset and features the unique Intel® Extreme Graphics architecture that maximizes VGA performance and shares system memory up to 224 MB. Advantech AIMB-213 is designed with an Intel® ICH8M and on board CPU Intel® ATOM™ N455/D525 1.66/1.8 GHz processor. A rich I/O connectivity of 6 serial ports,8 USB 2.0, Dual GbE LAN and 3 SATA ports.



Manuals
AIMB-213_user_manual_ed.1_FINAL.pdf
Download (PDF)
Data Sheets
AIMB-213_DS.pdf
Download (PDF)

Specifications

Processor
CPU
Intel Atom N455 or D525
Clock Speed
1.8 GHz
Processor Misc.
  • Optional Processor: Intel Atom N455 1.66 GHz (single core)
  • L2 Cache: 512 KB (N455) and 1MB (D525
  • Chipset: ICH8M

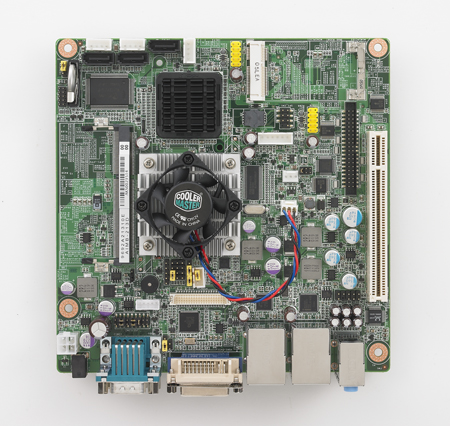

  • Atom D525 Dual Core = Yes TPM and Active Thermal Solution (CPU Cooler included)
  • Atom N455 Single Core = No TPM and Passive Thermal Solution
Memory
RAM
Up to 2 GB/ 4GB 2x slots 204-pin SODIMM sockets
Primary Flash
Supports CompactFlash Type I/II
BIOS/ Bootloader
AMI 16 Mbit SPI
Memory Misc.
  • Socket:  2x 204 pin SODIMM

    Atom N455 = 2GB Max (RAM not Included in price)
  • Atom D525 = 4GB Max (RAM not included in price)

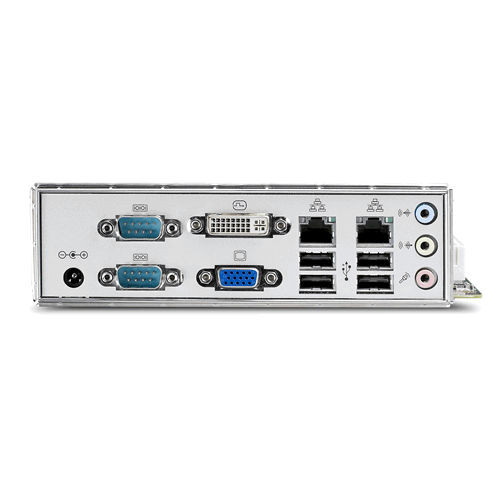

Primary IO
GPIO
1x 8-bit GPIO
Disk Interface
3x Channel SATA, 3x SATA PWR connector
Audio
Line-in/Line-out/Mic-in
Video Out
CRT/ DVI/ LVDS
Ethernet
10/100/1000 Mbps 2x RJ45 Intel 82567V/82583V
USB
8x USB 2.0 (4x Internal, 4x External)
Serial Ports
5x RS-232 (1x External), 1x RS-232/422/485 (1x External)
Secondary IO
Display
CRT-VGA Interface
Supports up to SXGA 1400 x 1050 @ 60Hz for Atom N455 up to 2048 x 1536 for Atom D525
LVDS Interface
Supports 18/24-bit single channel and up to WXGA 1366 x 768 (Chrontel 7036)
HDMI/DVI Interface
Supports up to UXGA 1600 x 1200 @ 60Hz
Multi-Display
VGA + DVI VGA + LVDS
Expansion
Bus Expansion
1x PCI, 1x Mini PCIe
Misc
Operating Systems
EMAC OE Linux, MicroPython, FreeRTOS

Mechanical and Environmental

Dimensions
Size
6.69" ×6.69" (169mm × 169mm)
Power Requirements
Typical Voltage
12 V
Power Misc.

Power type
Single voltage 12V DC input; 1 x External DC jack; 1 x Internal 4-pin (2x2) power connector; Support AT/ATX mode

Power consumption
12 V @ 3.4 A (Intel D510 1.66 GHz processor/DDR2 800 MHz 2 GB, SATA HDD x1)
12 V @ 2.73 A (Intel N455 1.66 GHz processor/DDR2 800 MHz 2 GB, SATA HDD x1
Environmental
Low Operating Temperature0 C (32 F)
High Operating Temperature60 C (140 F)
Related Products
AIMB-215

Pricing

Pricing correct as of January 2021. Please contact EMAC for Current Pricing and Lead Time. Due to volatility in the electronics industry pricing is subject to change.

OEM / Quantity Pricing Available on Request - Less Services

(Single Unit Pricing. Includes: Integration, Setup,Testing, & Enhanced Support)

Product # Description Price
AIMB-213D-S6A1E Atom D525 Dual core, 2 GbE, 6x COM 1x 18/24-bit LVDS Call
AIMB-213N-S6A1E Atom N455 Single core, 2GbE, 6x COM, 1x 18/24-bit LVDS Call

Peripheral Options

Product # Description Price
Peripherals
PER-ENC-00409 FT-AIMB-213-KIT FlexiTainer mini-ITX chassis for AIMB-213 Call
PER-FLS-00053-R 8GB CompactFlash Card Standard (-25°C to 85°C) Call
Memory
PER-RAM-00130-R 2GB, DDR3, SODIMM 204P PC3-8500 Call
Operating Systems
SL05x-XON-xx EMAC OE Linux 5.x for x86 (Free installation at time of purchase of SBC & media) Free
SX300-000-0000D Windows Embedded Standard 2009 (WES09) & License (Base configured installation included with License, Flash and SBC purchase; SOLD ONLY WITH HARD DRIVE OR FLASH DRIVE MEDIA) $125.00
SD622-000-0010 MS-DOS 6.22 - MSDOS 6.22 LICENSE MS-DOS 6.22 LICENSES are EOL and no longer SOLD, see ROM-DOS 6.22 Part number: SD622-000-0005 as alternate. Call
SD622-000-0005 ROM DOS 6.22 - ROM DOS 6.22 LICENSE ROM-DOS IS GUARANTEED BY DATALIGHT TO BE 100% COMPATIBLE WITH MS-DOS 6.22 ROM-DOS LICENSES SOLD ONLY WITH HARD DRIVE OR FLASH DRIVE MEDIA $35.00
SC600-000-0010D Windows CE 6.0 Pro License (Basic configured installation included with License, Flash and SBC purchase; SOLD ONLY WITH HARD DRIVE OR FLASH DRIVE MEDIA) $25.00
