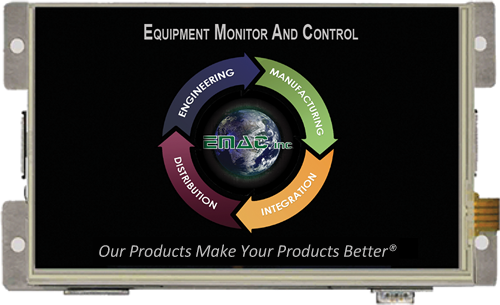

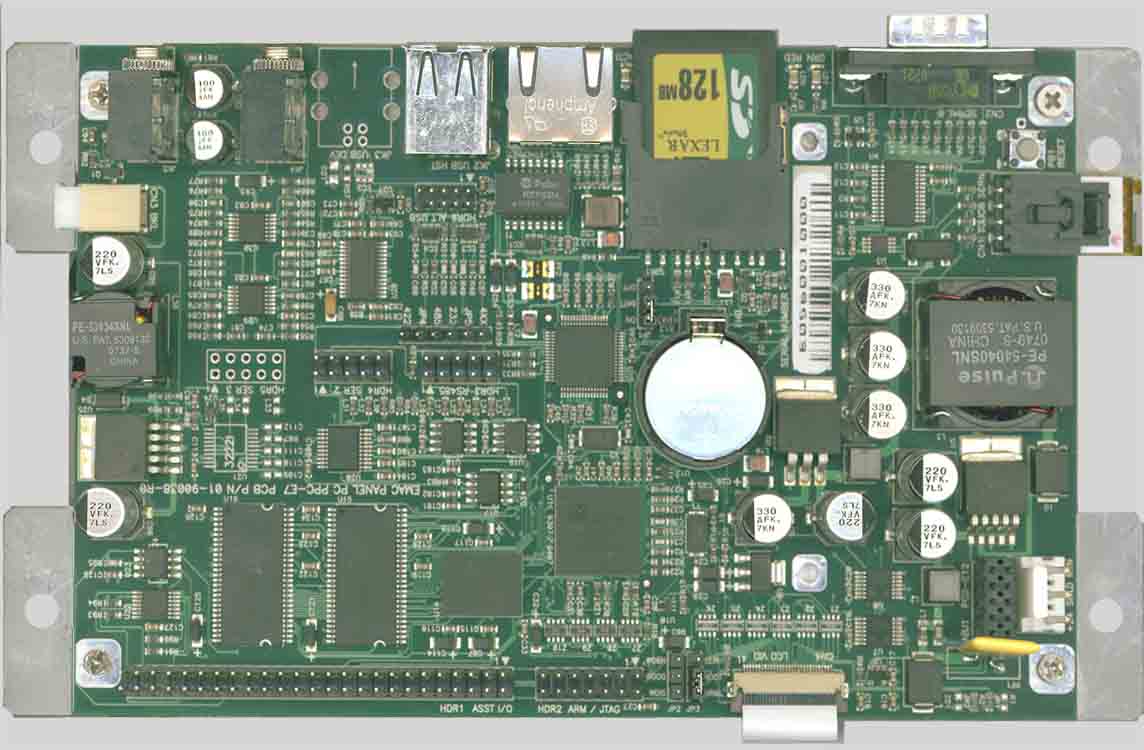

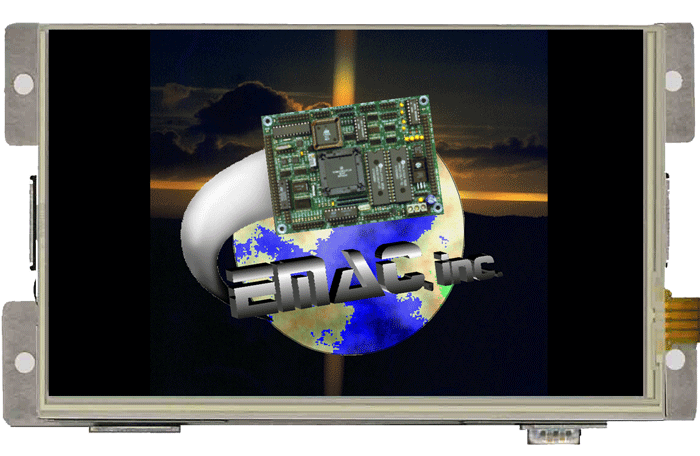

PPC-E7


This product is End-of-Life. Please contact our Sales Department for the recommended replacement or consider.

Setting up a Panel PC can be a Puzzling experience. However, when purchased with an Operating System and flash disk, the PPC-E7 Compact Panel PC comes ready to run. Apply power and watch either the Linux X Windows or the Windows CE User Interface appear on the vivid color LCD. Interact with the PPC-E7 using the responsive integrated touchscreen. Everything works out of the box, allowing you to concentrate on your application, rather than building and configuring device drivers.

Features


  • Cirrus ARM9 EP9307 200Mhz Fanless Low Power Processor
  • MaverickCrunch Hardware Floating Point Math Coprocessor
  • Inexpensive Open-Frame Design
  • 10/100BaseT Ethernet with on-board PHY
  • 3 Serial ports with handshake
  • 3 USB 2.0 (Full Speed) Host ports
  • Up to 128 MB of SDRAM
  • Up to 64 MB of Flash
  • 128K Bytes of Serial Flash
  • Battery backed Real Time Clock
  • SD/MMC Flash Card Interface
  • 1 SPI port
  • 1 I2S Audio port with Line-In/Line-Out
  • Timer/Counters and Pulse Width Modulation (PWM) ports
  • 4 Channel 12-bit Analog-to-Digital converter
  • Graphic LCD Interface with 2D acceleration
  • WVGA (800 x 480) Resolution with LED Backlight
  • Touchscreen Interface and Software Controlled Backlight On/Off & Brightness
  • JTAG for debug, including real-time trace
  • FREE Eclipse IDE with GCC & GDB development tools
  • WinCE 6.0 BSP and SDK available

Overview


Setting up a Panel PC can be a Puzzling experience. However, when purchased with an Operating System and flash disk, the PPC-E7 Compact Panel PC comes ready to run. Apply power and watch either the Linux X Windows or the Windows CE User Interface appear on the vivid color LCD. Interact with the PPC-E7 using the responsive integrated touchscreen. Everything works out of the box, allowing you to concentrate on your application, rather than building and configuring device drivers. Just Write-It and Run-It.

Manuals
Data Sheets

Specifications


Processor
CPU
Embedded Cirrus EP9307 with Hardware Floating Point Math Engine
Clock Speed
200 MHz
Memory
RAM Type
100 Mhz SDRAM
Memory Misc.
  • Flash Disk: SPI serial HCSD/MMC interface
  • System Reset: Supervisor with external Reset Button provision.
  • SSD: SPI serial HCSD/MMC interface up to 8+ GB Flash Disk
Primary IO
GPIO
22x Programmable 3.3V I/O lines
Audio
I2S Synchronous Serial Controller with analog interface support
Video Out
2D Accelerated Video Interface
USB
3x USB 2.0
Serial Ports
2x RS-232 with handshaking, 1x RS-232/422/485 with Auto RS485, high-speed SPI with chip selects
Primary I/O Misc.
  • Ethernet MAC: Built-In
  • Ethernet PHY: Intel/Cortina LXT927ALC with software PHY shutdown control
  • Ethernet Type: 10/100 Base-T Ethernet
  • Ethernet Interface: On-Board RJ-45 connector

Touchscreen

  • Type: 4 Wire Analog Resistive
  • Resolution: Continuous
  • Controller: Built-In
  • Driver: WinCE, Linux
  • Durability: Over one million touches
Secondary IO
Timers/ Counters/ PWM
2x general purpose 16-bit, 1x 32-bit timer, 2x 16-bit PWMs
Touch
12-Bit, 4 wire analog resistive Touchscreen
Display
Display Type
7" TFT Color LCD
Resolution
800 × 480 mm
LCD Colors
256K
Viewing Angle
55°
Luminance
330 (cd/m²)
LCD Misc.
  • Resolution type: WVGA
  • Dot pitch: 0.19mm x 0.19mm
  • Brightness: Software controlled
  • Backlight: White LED (33 LEDS)
Analog
A/D Channels
4
A/D Resolution
12-bit
Misc
Operating Systems Compatibility
  • Bootloader: Resident Flash Bootloader (Redboot)
  • Operating System: Linux
  • Programming Languages: GNU GCC C compiler GDB Debugger
  • Networking: Full resident TCP/IP protocol stack
  • Integrated Development Environment: Eclipse 3.3 or higher
  • Drivers: Serial RS232/422/485, Ethernet, USB, Hardware SPI, Audio, Video, Touchscreen, Multi-Media Card/Secure Digital (MMC/SD), A/D, PWM, and GPIO.
  • Applications: Ash shell , Telnet Server, FTP Server, Web Server, and Test Programs
  • Optional Qt

Mechanical and Environmental


Dimensions
Size
7.55" ×4.15" ×1.5" (191mm × 105mm × 38mm)
Weight
1.06 lb
Power Requirements
Typical Voltage
24 V
Typical Current
200 mA
Power Misc.

Power Supply Voltage: +12 to +26 Vdc

Environmental
Low Operating Temperature0 C (32 F)
High Operating Temperature50 C (122 F)
Related Products

Pricing


Pricing correct as of January 2021. Please contact EMAC for Current Pricing and Lead Time. Due to volatility in the electronics industry pricing is subject to change.

OEM / Quantity Pricing Available on Request - Less Services

(Single Unit Pricing. Includes: Integration, Setup,Testing, & Enhanced Support)

Product # Description Price
PPC-E7-0200 COMPACT PPC W/TOUCHSCREEN 32M FLASH/RAM (NCNR) (25 piece minimum order) $495.00
PPC-E7-0300 COMPACT PPC W/TOUCHSCREEN 64M FLASH/RAM $525.00

Peripheral Options


Product # Description Price
Peripherals
PER-PWR-00035 12 v @ 2.1A Wall PS (110 V @ 60 HZ US) $25.00

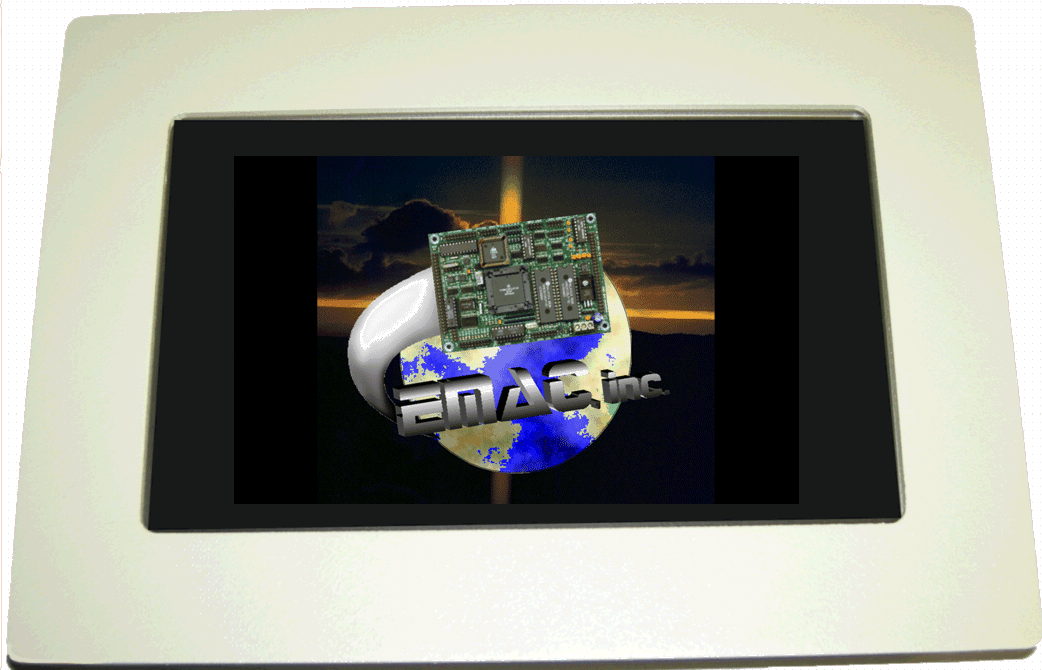

PER-ENC-00031 Beige Aluminum Bezel $40.00
CAB-40-004 DUAL USB Bracket w/ 6" cable $10.00
CAB-35-003 6' DB9 to DB9 Null Modem extension cable $10.00
Operating Systems
SL013-AON-X0040 Embedded Linux Standard ARM Build Free
SC600-000-0010D Windows CE 6.0 Pro License (Basic configured installation included with License, Flash and SBC purchase; SOLD ONLY WITH HARD DRIVE OR FLASH DRIVE MEDIA) $25.00
