AFL-08B


This product is End-of-Life. Please contect our Sales Department for the recommended replacement.

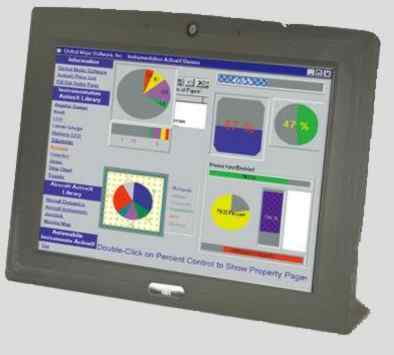

The AFL-08B is an Intel® Atom N270 powered all-in-one touch screenpanel PC with a rich variety of functions and peripheral connections. It is designed for easy and simplified integration into conference center, home automation, and building control applications.

Features


  • 8" LED backlight LCD panel with resistive touch screen
  • Intel® Atom process N270 1.6GHz CPU
  • System memory up to 2 GB SDRAM
  • Built-in 300K pixel camera with low light function
  • Built-in 802.11b/g Wireless Giga LAN
  • Built-in digital microphone
  • Built-in two 1.5 W speakers
  • Mini PCIe Socket
  • Bluetooth module

Overview


The AFL-08B is an Intel® Atom N270 powered all-in-one touch screenpanel PC with a rich variety of functions and peripheral connections. It is designed for easy and simplified integration into conference center, home automation, and building control applications.

An Intel® 945GSE graphics memory controller hub (GMCH) coupled with an Intel®ICH7M input/output controller hub ensures optimal memory, graphics, and peripheral I/O support. The system comes with 1.0 GB of preinstalled DDR2 SDRAM and supports a maximum of 2.0 GB ensuring smooth data throughputs with reduced bottlenecks and fast system access.

Two serial ports, two USB 2.0 ports, and one external SATA port provide simplified connectivity to a variety of external peripheral devices. Wi-Fi capabilities and two RJ-45 Ethernet connectors ensure uninterrupted connection of the system to an external LAN.

The AFL-08B panel PC is an elegant yet sophisticated system that is as easily implemented in commercial, industrial, and corporate environments as the home.

Applications

  •     Point-of-information / Point-of sale terminals
  •     Interactive kiosks
  •     Entertainment terminals
  •     Banking / Office automation
  •     Production process control
  •     Factory automation systems
Manuals
afl-08b.pdf
Data Sheets

Specifications


Processor
CPU
Fanless Atom N270
Clock Speed
1.6 GHz
Memory
Memory Misc.
  • Memory: One 200 pin SODIMM socket up to 2GB DDR, 1GB built-in.
  • SSD: Supports one internal Type II CompactFlash™ socket
Primary IO
GPIO
2 serial ports: RS-232 x 1, RS-232/422/485 x 1. 1 parallel port, 2 USB 2.0 ports. Two RJ-45 GbE LAN ports. One Audio line-out jack.
Disk Interface
CompactFlash Type II socket IDE
Audio
AMP 1.5W + 1.5W internal speakers
Video Out
8
Ethernet
2 x RJ-45 Ethernet connectors
USB
2x USB 2.0
Serial Ports
1x RS-232, 1x RS-232/422/485
Primary I/O Misc.
  • Network (LAN): Wireless LAN 802.11 b/g PCIe mini card module
  • Additional I/O: 1 parallel port, one audio line-out jack
Secondary IO
Timers/ Counters/ PWM
Watchdog Timer: 255 level timer interval, setup by software, system reset
Display
Display Type
LCD
Resolution
800 × 600 in
Pixel Pitch
0.0675 × 0.2025 in
LCD Colors
256
Viewing Angle
130 H 120 V
Luminance
300 nits
LCD Misc.
  • Backlight MBTF: 30,000 hrs. (LED Backlight)

Mechanical and Environmental


Dimensions
Size
9.2" ×7.2" ×1.6" (233mm × 182mm × 40mm)
Weight
0.8 kg
Power Requirements
Power Misc.
  • Output Rating : 36 Watts
  • Input Voltage: 90-264VAC @50/60 12VDC
  • Output Voltage: 12VDC
Environmental
Low Operating Temperature-10 C (14 F)
High Operating Temperature50 C (122 F)
Environmental Misc.
  • Relative Humidity: 10 ~ 95% @ 40° C (non-condensing)
  • EMC: CE, FCC, CCC

Pricing


Pricing correct as of January 2021. Please contact EMAC for Current Pricing and Lead Time. Due to volatility in the electronics industry pricing is subject to change.

OEM / Quantity Pricing Available on Request - Less Services

(Single Unit Pricing. Includes: Integration, Setup,Testing, & Enhanced Support)

Product # Description Price
PPC-AFL-08B PPC 8" w/ Atom 1.6GHz, WLAN, 1GB RAM, CAM (SSD/HDD not included) $876.00
