SIB-S202


  •  Intel® Atom™ E3900 series
  •  Onboard 4GB LPDDR4-2400MT/s, 32GB eMMC
  •  Independent display by HDMI
  •  Semi-Industry Fanless slim systen, Din Rail or Wall mount design
  •  Support HDMI x 1 , GbE x 2 USB 3.0 x 2, COM x 2, DIO x 2
  •  Flexible expansion M.2 E key, F/S miniPCIe
  •  12V power input, default is 12V phoenix 2 pin connector
  •  Advantech WISE-PaaS/DeviceOn support

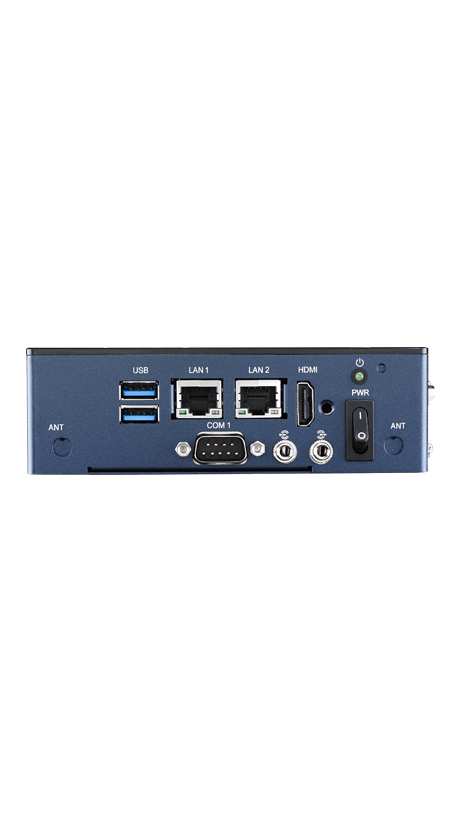

SIB-S202 is a small, palm-sized, fanless embedded system that supports Din rail/ wall/desk mounting. SIB-S202 features front I/O to ease DIN rail assembly and mounting. Rear I/O ports facilitate expansion and upgrade with extension modules on demand. SIB-S202 is a semi-industrial expandable system easily installed in machine cabinets. This system is designed for limited space machine equipment applications in factory automation, equipment integration, and kiosks.

Features


  •  Intel® Atom™ E3900 series
  •  Onboard 4GB LPDDR4-2400MT/s, 32GB eMMC
  •  Independent display by HDMI
  •  Semi-Industry Fanless slim systen, Din Rail or Wall mount design
  •  Support HDMI x 1 , GbE x 2 USB 3.0 x 2, COM x 2, DIO x 2
  •  Flexible expansion M.2 E key, F/S miniPCIe
  •  12V power input, default is 12V phoenix 2 pin connector
  •  Advantech WISE-PaaS/DeviceOn support

Overview


SIB-S202 is a small, palm-sized, fanless embedded system that supports Din rail/ wall/desk mounting. SIB-S202 features front I/O to ease DIN rail assembly and mounting. Rear I/O ports facilitate expansion and upgrade with extension modules on demand. SIB-S202 is a semi-industrial expandable system easily installed in machine cabinets. This system is designed for limited space machine equipment applications in factory automation, equipment integration, and kiosks.

Easy & Simple Design SIB-S202 is powered by an Intel® Atom™ E3950/E3930 to deliver high performance with low power consumption. SIB-S202 supports up to 2x COM port, 2x USB 3.0, 2x GbE LAN, one M.2 E key, mSATA/mPCIe, and on-board 4 GB LPDDR4 memory and 32 GB eMMC storage for rugged environments. SIB-S202 passes several worldwide certifications — including CE/FCC, VCCI, and eventually CB, UL, CCC, and BSMI.

Manuals
EPC-S202 manual.pdf
Data Sheets
EPC-S202_Datasheet.pdf

Specifications


Processor
CPU
Intel® Atom™ E3900 series
Clock Speed
2 GHz
Memory
RAM
Onboard 4GB
RAM Type
LPDDR4-2400MT/s
Primary Flash
32 GB eMMC onboard
Secondary Flash
mSATA
Memory Misc.

Onboard 4GB LPDDR4-2400MT/s, 32GB eMMC

Primary IO
GPIO
2x DIO (8-Bit GPIO)
Video Out
HDMI 1.4b: up to 3840 x 2160 at 30Hz
Ethernet
2 x RJ-45 10/100/1000 Mbps
USB
2x USB 3.0
Serial Ports
2x serial (1x RS232/422/485, 1x RS232)
Secondary IO
Misc
Operating Systems
EMAC OE Linux, WES 7 - Windows Embedded Standard 7, Windows 10 IoT Enterprise LTSC

Mechanical and Environmental


Dimensions
Size
5.5" ×4" ×1.7" (139mm × 101mm × 43mm)
Weight
0.6 kg
Dimensions Misc.

Mounting Desk/Wall mounting, Din rail mounting

Power Requirements
Power Misc.

Power type Vin: 12V ± 10%
Power Input voltage AT
Connector type 2 Pin Phoenix DC Plug in

Environmental
Low Operating Temperature-20 C (-4 F)
High Operating Temperature60 C (140 F)
Upper Operating Humidity
95%
Environmental Misc.

Vibration During Operation 3 Grms, IEC 60068-2-64, random vibration, 5 ~ 500 Hz, 1 hr/axis
Shock During Operation 30G, IEC60068-2-27, half sine, 11m duration

Pricing


Pricing correct as of January 2021. Please contact EMAC for Current Pricing and Lead Time. Due to volatility in the electronics industry pricing is subject to change.

OEM / Quantity Pricing Available on Request - Less Services

(Single Unit Pricing. Includes: Integration, Setup,Testing, & Enhanced Support)

Product # Description Price
SIB-S202E-000R1 Intel E3950, 12VDC, HDMI, DIO, COM, 2 LAN $446.00
