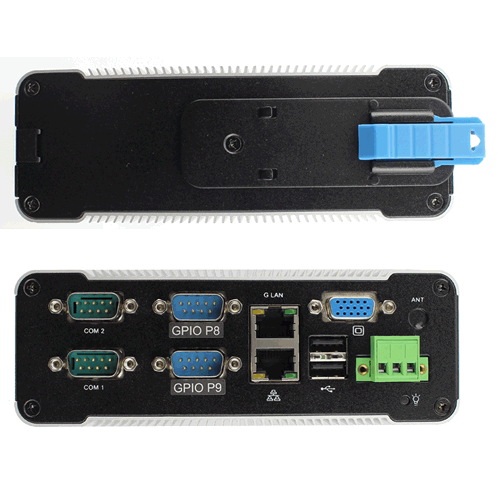

SIB-DP30V

  • Vortex86DX2 933 MHz
  • 1GB/2GB DDR2 RAM
  • 2x RS-232/422/485
  • 3x USB 2.0 Ports
  • Gigabit & 10/100 Ethernet
  • 16-BIT GPIO
  • DIN Rail Mount

The DIN PC-333x Series is an innovative device that provides a perfect balance between performance and energy efficiency. The DIN PC-333x is Fanless designed with wide operating temperature range of up to 50°C, making it suitable in warehouse and factory environments. The low power design is ideal for M2M, IOT and Industrial Automation applications where constant on operations are required.

Features

  • Vortex86DX2 933 MHz
  • 1GB/2GB DDR2 RAM Onboard
  • 2x RS-232/422/485
  • 3x USB 2.0 Ports
  • 10/100/100 LAN and 10/100 LAN
  • 16-BIT GPIO
  • AMI BIOS
  • VGA
  • 1x SD Slot
  • 1x SATA
  • SD, SDHD Support (Internal)
  • SATA DOM Support (Internal)
  • TTL Level RS-232 (Optional)
  • DIN Rail Mounting Support
  • Auto Power On
  • WiFi (Optional)
  • DC +8 ~ +24V (Pluggable Terminal Block, 3-Pin 5.00 mm Pitch)
  • 152 x 104 x 54mm
  • 5 ~ 50°C

Overview

The DIN PC-333x Series is an innovative device that provides a perfect balance between performance and energy efficiency. The DIN PC-333x is Fanless designed with wide operating temperature range of up to 50°C, making it suitable in warehouse and factory environments. The low power design is ideal for M2M, IOT and Industrial Automation applications where constant on operations are required.

The DIN PC-333x Series features DMP ultra low power 933MHz Vortex86DX2 CPU, Onboard 1GB / 2GB DDR2 RAM, two independent Ethernet, and various I/O ports. Supported operating systems such as Microsoft Windows Embedded and Linux OS, users can integrate applications easily with a platform that provides versatile functions to fulfill diverse requirements.

With compact dimensions of 152 x 104 x 54 mm (W x H x D), the DIN PC-333x Series fits in small control boxes, as well as directly in a machine or the machine stand. With DIN rail form factor, it supports DIN rail in top hat rail section EN 50022 version. All DIN PC-333x Series’ interfaces are on the front side, so it can be cabled up easily. The DIN PC-333x Series is an ideal choice for embedded controllers used in IOT, Machine to Machine "M2M" and for other industrial automation applications. While multiple the network connections makes it easy to setup an IOT gateway on existing platforms, while adding the optional WIFI can extend the gateway to connect to newer devices.

Manuals
din_pc-333x_manual.pdf
Download (PDF)
Data Sheets
din_pc-333x_ds.pdf
Download (PDF)

Specifications

Processor
CPU
Vortex86DX2
Clock Speed
933 MHz
Memory
RAM Type
DDR2 (Up to 2GB DDR2)
Primary Flash
1x SATA SSD or DOM
Secondary Flash
1x SD Slot (Internal)
BIOS/ Bootloader
AMI BIOS
Primary IO
GPIO
2x 8-bit
SDIO
16-Bit GPIO (optional)
Disk Interface
1x SATA
Video Out
VGA
Ethernet
1x 10/100/1000 and 1x10/100 Ethernet
USB
3x USB 2.0 Ports
Serial Ports
2x RS-232/422/485 (GPIO Optional)
Secondary IO
Misc
Operating Systems
EMAC OE Linux, MicroPython, FreeRTOS, EMAC OE, Qt, ROM-DOS 6.22 / MS-DOS 6.22

Mechanical and Environmental

Dimensions
Size
6" ×4.1" ×2.13" (152mm × 104mm × 54mm)
Weight
760 g (1 lbs)
Power Requirements
Voltage
8 V
Power Misc.

DC +8 ~ +24V (Pluggable Terminal Block, 3-Pin 5.00 mm Pitch)
Environmental
Low Operating Temperature5 C (41 F)
High Operating Temperature50 C (122 F)
Environmental Misc.

5 ~ 50°C

Pricing

Pricing correct as of January 2021. Please contact EMAC for Current Pricing and Lead Time. Due to volatility in the electronics industry pricing is subject to change.

OEM / Quantity Pricing Available on Request - Less Services

(Single Unit Pricing. Includes: Integration, Setup,Testing, & Enhanced Support)

Product # Description Price
SIB-DP30V-152-R D-3330-851C1G2, Vortex86DX2 933MHz CPU, 1GB RAM, 1xRS232, 1xRS485, 3xUSB2, 1x LAN, 1xGigLAN,16xGPIO, VGA $235.00
SIB-DP30V-202-R D-3330-C2G2, Vortex86DX2 933MHz CPU, 1GB RAM, 2-RS232, 3xUSB2, 1x LAN, 1xGigLAN, 16x GPIO, VGA $235.00
SIB-DP30V-270-R D-3330-851221C2, Vortex86DX2 933MHz CPU, 1GB RAM, 1xRS-422, 1xRS-485, 3xUSB2, 1x LAN, 1xGigLAN, 16x GPIO, VGA $249.00
SIB-DP32V-152-R D-3332-851C1G2, Vortex86DX2 933MHz CPU, 2GB RAM, 1xRS232, 1xRS485, 3xUSB2, 1x LAN, 1xGigLAN,16xGPIO, VGA $256.00
SIB-DP32V-202-R D-3332-C2G2, Vortex86DX2 933MHz CPU, 2GB RAM, 2-RS232, 3xUSB2, 1x LAN, 1xGigLAN, 16x GPIO, VGA $256.00
SIB-DP32V-270-R D-3332-851221C2, Vortex86DX2 933MHz CPU, 2GB RAM, 1xRS-422, 1xRS-485, 3xUSB2, 1x LAN, 1xGigLAN, 16x GPIO, VGA $264.00

Peripheral Options

Product # Description Price
Peripherals
PER-USB-00006-R USB WLAN WiFi Module Internal $31.00
PER-FLS-00232-R 16GB SATA DOM 7+15PIN MLC Call
Operating Systems
SL05x-XON-xx EMAC OE Linux 5.x for x86 (Free installation at time of purchase of SBC & media) Free
SD622-000-0005 ROM DOS 6.22 - ROM DOS 6.22 LICENSE ROM-DOS IS GUARANTEED BY DATALIGHT TO BE 100% COMPATIBLE WITH MS-DOS 6.22 ROM-DOS LICENSES SOLD ONLY WITH HARD DRIVE OR FLASH DRIVE MEDIA $35.00
SD622-000-0010 MS-DOS 6.22 - MSDOS 6.22 LICENSE MS-DOS 6.22 LICENSES are EOL and no longer SOLD, see ROM-DOS 6.22 Part number: SD622-000-0005 as alternate. Call
SC600-000-0010D Windows CE 6.0 Pro License (Basic configured installation included with License, Flash and SBC purchase; SOLD ONLY WITH HARD DRIVE OR FLASH DRIVE MEDIA) $25.00
SX300-000-0000D Windows Embedded Standard 2009 (WES09) & License (Base configured installation included with License, Flash and SBC purchase; SOLD ONLY WITH HARD DRIVE OR FLASH DRIVE MEDIA) $125.00
S7000-NOL-00020 Windows Embedded Standard 7 (WES7) & License. SOLD ONLY WITH HARD DRIVE OR FLASH DRIVE MEDIA (EOL 10/13/2020) $125.00

Additional Options
