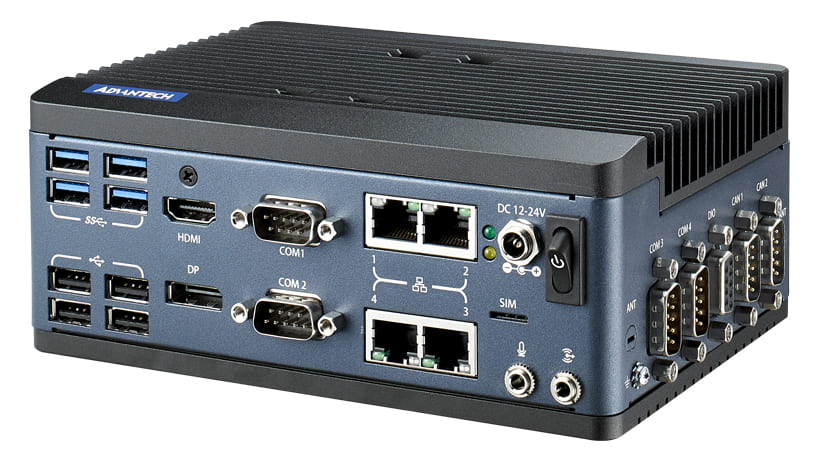

SIB-A1240 Box IPC is an ideal, application-ready, system platform solution. All electronics are protected in a compact sealed case for easy embedding in the customer’s own housing, or as a stand-alone unit where space is limited. offering 4 POE gigabit Ethernet ports to connect devices, such as cameras, VoIP phones or IOT sensor nodes to.
SIB-S202 is a small, palm-sized, fanless embedded system that supports Din rail/ wall/desk mounting. SIB-S202 features front I/O to ease DIN rail assembly and mounting.
SIB-EB8DX
- Vortex86DX 800MHz CPU
- VDX-6328RD Board
- 256MB DDR2 (512MB Optional)
- 4x RS232 (1x RS232/422/485)
- 3x USB 2.0 Ports
- 1x 10/100 Ethernet
22Spi411SS55 The EMAC Vortex Server-In-a-Box (SIB), is a low cost, small footprint, yet powerful Server. The Vortex SIB utilizes the Vortex86DX 6328RD, 800MHz fanless processor allowing it to run Linux and WinCE Operating Systems. Like all SIBs, the Vortex SIB has no moving parts and features a rugged enclosure design making it an ideal choice for most industrial applications. The Vortex SIB is just as comfortable in a basement wiring closet as it is on a desktop.
Features
- Vortex86DX 800MHz CPU
- VDX-6328RD Board
- 256MB DDR2 (512MB Optional)
- 4x RS232 (1x RS232/422/485)
- 1x LPT Parallel Port
- 3x USB 2.0 Ports
- 1x 10/100 Ethernet
- 4MB SPI Flash Onboard
- Compact Flash Type I/II
- 44-pin IDE to MicroSD (Optional)
- 16 GPIO (via DB25F connector)
- VGA/LCD/LVDS
- PWM 16-24 Channels
- Watchdog Timer
- 102 x 146mm (4.01" x 5.75")
- Single Voltage +5V @ 840mA
- Wide Temperature
- -20°C - +70°C
- -40°C ~ +85° (Optional)
Overview
The EMAC Vortex Server-In-a-Box (SIB), is a low cost, small footprint, yet powerful Server. The Vortex SIB utilizes the Vortex86DX 6328RD, 800MHz fanless processor allowing it to run several Operating Systems. Like all SIBs, the Vortex SIB has no moving parts and features a rugged enclosure design making it an ideal choice for most industrial applications. The Vortex SIB is just as comfortable in a basement wiring closet as it is on a desktop.
The Vortex SIB is suitable for broad range of data-acquisition, Industrial automation, Process control, Automotive controller, AVL, Intelligent Vehicle management device, Medical device, Human machine interface, etc.
Purchase a EMAC SIB and you should be up, running and building applications the first day.
| Manuals | |
|---|---|
| vdx-6328.pdf | Download (PDF) |
| VDX-6328RD-NF_UM_v1r1A.PDF | Download (PDF) |
| Data Sheets | |
|---|---|
| eb_20X_datasheet.pdf | Download (PDF) |
| VDX-6328RD-NF_DS.pdf | Download (PDF) |
Specifications
| Processor | |
|---|---|
| CPU | Vortex86DX |
| Clock Speed | 800 MHz |
| Memory | |
|---|---|
| RAM Type | 256/512 MB DDR2 |
| Primary Flash | Compact Flash Type I/II |
| Secondary Flash | 4 MB SPI Onboard |
| BIOS/ Bootloader | AMI BIOS |
| Primary IO | |
|---|---|
| GPIO | 16x GPIO |
| Disk Interface | 1x EIDE, Compact flash |
| Audio | CM119 USB Audio Controller |
| Video Out | VGA/LCD/LVDS |
| Ethernet | 1x 10/100 Ethernet |
| USB | 3x USB 2.0 Ports |
| Serial Ports | 4x RS-232 (1xRS-232/422/485) |
| Secondary IO | |
|---|---|
| Timers/ Counters/ PWM | PWM 16-24 Channel |
| LPT Port | Yes
|
| PS/2 | Yes
|
| Power Supply | Single Voltage +5V @840mA |
| Misc | |
|---|---|
| Operating Systems | EMAC OE Linux, MicroPython, FreeRTOS, EMAC OE, Qt |
Mechanical and Environmental
| Dimensions | |
|---|---|
| Size | 6" ×10" ×2.25" (152mm × 254mm × 57mm) |
| Weight | 150 g (0 lbs) |
| Power Requirements | |
|---|---|
| Voltage | 5 V |
| Typical Current | 840 mA |
| Environmental | |
|---|---|
| Low Operating Temperature | -20 C (-4 F) |
| High Operating Temperature | 70 C (158 F) |
| Environmental Misc. | -40°C ~ +85°C (Optional) |
Pricing
Pricing correct as of January 2021. Please contact EMAC for Current Pricing and Lead Time. Due to volatility in the electronics industry pricing is subject to change.
OEM / Quantity Pricing Available on Request - Less Services
(Single Unit Pricing. Includes: Integration, Setup,Testing, & Enhanced Support)
| Product # | Description | Price |
|---|---|---|
| SIB-EB8DX-001-R | EB-208 + VDX-6328RD-NF, 3.5" SBC Chassis+SBC | $385.00 |
| SIB-EB8DX-001-X | EB-208 + VDX-6328RD-NF-X, 3.5" SBC Chassis+SBC (-40°C to 80°C Option) | Call |
Peripheral Options
| Product # | Description | Price |
|---|---|---|
| Peripherals | ||
| PER-FLS-00053-R | 8GB CompactFlash Card Standard (-25°C to 85°C) | Call |
| PER-FLS-00050-R | 4GB CompactFlash Card Industrial Temp. (-40~85°C) | Call |
| Power Supplies | ||
| PER-PWR-00070-R | PDX/eBox 5v, 4A, 20W Power Supply | $27.00 |
| PER-PWR-00071-R | PDX/5v, 4A, 20W Power Supply UK | $27.00 |
| PER-PWR-00072-R | PDX/5v, 4A, 20W European Power | $27.00 |
| Operating Systems | ||
| SL05x-XON-xx | EMAC OE Linux 5.x for x86 (Free installation at time of purchase of SBC & media) | Free |
| SD622-000-0005 | ROM DOS 6.22 - ROM DOS 6.22 LICENSE ROM-DOS IS GUARANTEED BY DATALIGHT TO BE 100% COMPATIBLE WITH MS-DOS 6.22 ROM-DOS LICENSES SOLD ONLY WITH HARD DRIVE OR FLASH DRIVE MEDIA | $35.00 |
| SD622-000-0010 | MS-DOS 6.22 - MSDOS 6.22 LICENSE MS-DOS 6.22 LICENSES are EOL and no longer SOLD, see ROM-DOS 6.22 Part number: SD622-000-0005 as alternate. | Call |
| SC600-000-0010D | Windows CE 6.0 Pro License (Basic configured installation included with License, Flash and SBC purchase; SOLD ONLY WITH HARD DRIVE OR FLASH DRIVE MEDIA) | $25.00 |
| SX300-000-0000D | Windows Embedded Standard 2009 (WES09) & License (Base configured installation included with License, Flash and SBC purchase; SOLD ONLY WITH HARD DRIVE OR FLASH DRIVE MEDIA) | $125.00 |
