SIB-A1123


  • Intel® Celeron J1900 QC 2.0GHz SoC or  Intel® Atom™ E3825 DC 1.3GHz SoC
  • Up to 8 GB DDR3L SODIMM
  • Up to 2x RS-232/422/485
  • Up to 2x USB 2.0 Ports & 1x USB 3.0 Port
  • 10/100/1000 Mbps
  •  VGA or 2xHDMI

The SIB-A1123 fanless Embedded Box Computer is an ideal, application-ready system solution. All electronics are protected in a compact, sealed, aluminum case for easy embedding in the customer's own housing, or as a stand-alone application where space is limited and the environment harsh. The solid, sealed aluminum case offers vibration and dust resistance while also providing a passive cooling solution. The SIB-A1123 provides system integrators with a turn-key solution and versatile application development path without breaking the bank or missing time-to-market deadlines.

Features


  • Intel® Celeron J1900 QC 2.0GHz SoC or Intel® Atom™ E3825 DC 1.3GHz SoC
  • Up to 8 GB DDR3L SODIMM 1333/1066 MHz
  • Up to 2x RS-232/422/485
  • Up to 2x USB 2.0 Ports & 1x USB 3.0 Port
  • Up to 2x Gig LAN 10/100/1000 Mbps

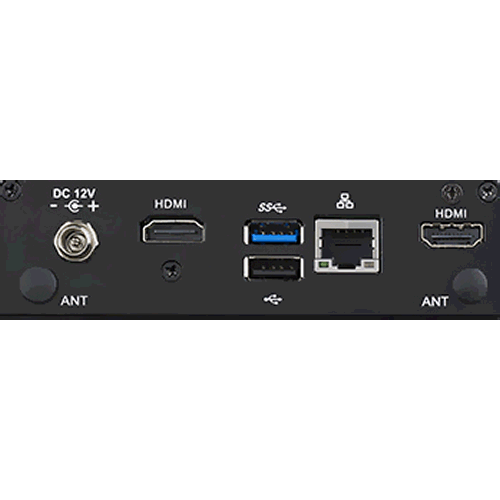

  • VGA or 2xHDMI
  • 1x 2.5" SATA HDD/SSD Bay
  • 1x Full-size Mini PCIe, support WLAN or WWAN module
  • 1x Half-size Mini PCIe, support Half-size mSATA module
  • ALC-888S, High Definition Audio. Line-out & Line-in
  • AMI 64 Mbit Flash BIOS
  • Optional VESA / DIN Rail / Wall Mounting kits
  • Threaded DC jack design
  • Power Input: Single DC 12V
  • RTC battery: 3 V/210 mAh
  • SIB-A1123C/L: -30 ~ 70° C (With extended temperature SSD/mSATA devices)
  • 0 ~ 40° C (With standard temperature HDD/SSD/mSATA devices)
  • SIB-A1123H: -20 ~ 60° C (With extended temperature SSD/mSATA devices)
  • 0 ~ 40° C (With standard temperature HDD/SSD/mSATA devices)
  • Relative humidity: 95% @ 40°C (non-condensing)
  • 5.27" x 1.7" x 3.71" (133.8 x 43.1 x 94.2 mm )

Overview


The SIB-A1123 fanless Embedded Box Computer is an ideal, application-ready system solution. All electronics are protected in a compact, sealed, aluminum case for easy embedding in the customer's own housing, or as a stand-alone application where space is limited and the environment harsh. The solid, sealed aluminum case offers vibration and dust resistance while also providing a passive cooling solution. The SIB-A1123 provides system integrators with a turn-key solution and versatile application development path without breaking the bank or missing time-to-market deadlines.

SIB-A1123 is designed as a palm-size fanless embedded system and occupies only 133.8 x 43.1 x 94.2 mm (5.27" x 1.70" x 3.71"). The rugged, cast aluminum case not only provides great protection from EMI, shock/vibration, cold and heat, but also passive cooling for quiet, reliable operation. SIB-A1123 meets demands by offering up to 2 x HDMI, 1 x VGA, 2 x GbE LAN, 3 x USB 2.0 ports, and 2 x COM ports; all packed into a compact rugged unit and powered by an Intel Celeron J1900 QC 2.0GHz / E3825 DC 1.3GHz processor. SIB-A1123 also supports both 2.5" SATA HDD, mSATA and SSD for storage options even though it is a palm-size system. Besides, SIB-A-1123 is a low-power-consumption system and it is powered by DC 12 V input. The SIB-A1123 provides for diversified application fields.

Manuals
ARK-1123_User Manual_ed.1_Final.pdf
Data Sheets
ARK-1123L_DS.pdf
ARK-1123H_DS.pdf
ARK-1123C_DS.pdf

Specifications


Processor
CPU
Intel® Celeron™ J1900 QC or Intel® Atom™ E3825 DC
Clock Speed
2 GHz
Memory
RAM Type
DDR3L 1333/1066 MHz
Primary Flash
Up to 2x RS-232/422/485
BIOS/ Bootloader
AMI 64 Mbit Flash BIOS
Memory Misc.

Up to 8GB DDR3L SODIMM

Primary IO
GPIO
8 bit GPIO
Disk Interface
2.5 Inch SATA HDD/SSD Bay
Audio
ALC-888S
Video Out
VGA or 2x HDMI
Ethernet
10/100/1000 Mbps with Up to 2x RJ45
USB
Up to 2x USB 2.0 Ports & 1x USB 3.0 Port
Serial Ports
Up to 2x RS-232/422/485
Secondary IO
Power Supply
12 V DC
Misc
Operating Systems
EMAC OE Linux, MicroPython, FreeRTOS, EMAC OE, Yocto, Qt, ROM-DOS 6.22 / MS-DOS 6.22

Mechanical and Environmental


Dimensions
Size
5.27" ×1.7" ×3.71" (133mm × 43mm × 94mm)
Power Requirements
Voltage
12 V
Power Misc.

RTC battery: 3 V/210 mAh

Environmental
Low Operating Temperature-30 C (-22 F)
High Operating Temperature70 C (158 F)
Upper Operating Humidity
95%
Environmental Misc.
-30° ~ 70° C
Relative humidity: 95% @ 40°C (non-condensing)

Pricing


Pricing correct as of January 2021. Please contact EMAC for Current Pricing and Lead Time. Due to volatility in the electronics industry pricing is subject to change.

OEM / Quantity Pricing Available on Request - Less Services

(Single Unit Pricing. Includes: Integration, Setup,Testing, & Enhanced Support)

Product # Description Price
SIB-A1123-C00-R ARK-1123C, Intel® Atom™ E3825 Dual Core 1.33 GHz, 2x COM, 1xUSB3, 2xUSB2, 2x GigLAN, VGA Call
SIB-A1123-H00-R ARK-1123H, Intel® Celeron J1900 QC 2.0 GHz, 1xCOM,1xUSB3, 2xUSB2, 2x GigLAN, 2x HDMI Call
SIB-A1123-L00-R ARK-1123L, Intel® Atom™ E3825 DC 1.33GHz, 2x COM 1xUSB3, 1xUSB2, 1xGigLAN, VGA Call

Peripheral Options


Product # Description Price
Peripherals
PER-RAM-00161 4GB DDR3L 1.35V SODIMM Call
PER-RAM-00165 2GB DDR3L 1.35V SODIMM (Industrial Temp -40 to 85C) Call
PER-FLS-00091-R mSATA Flash module 32GB MLC Std Call
PER-FLS-00102-R mSATA Flash module 32GB MLC (-40 to 85°C) Call
Cables & Adapters
CAB-80-001-1 CABLE POWER 110V AC GND OUTLET $3.00
Operating Systems
SL05x-XON-xx EMAC OE Linux 5.x for x86 (Free installation at time of purchase of SBC & media) Free
SX300-000-0000D Windows Embedded Standard 2009 (WES09) & License (Base configured installation included with License, Flash and SBC purchase; SOLD ONLY WITH HARD DRIVE OR FLASH DRIVE MEDIA) $125.00
S7000-NOL-00020 Windows Embedded Standard 7 (WES7) & License. SOLD ONLY WITH HARD DRIVE OR FLASH DRIVE MEDIA (EOL 10/13/2020) $125.00
