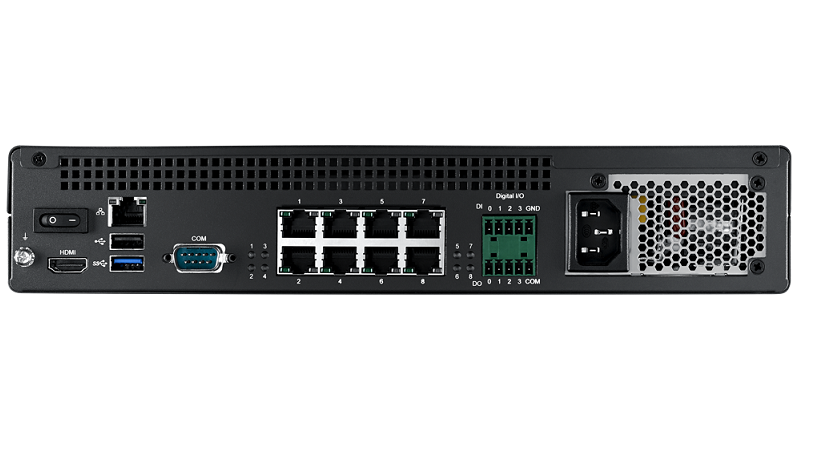

SIB-710IVA NVIDIA Jetson Nano 8x POE Video


  • NVIDIA Jetson™ NANO embedded
  • Support 8ch PoE Video Input
  • Support 2 x 3.5" HDD
  • Low power consumption
  • H.264 / H.265 camera supported

SIB-710IVA is an ARM-based system that uses the integrated NVIDIA® Jetson™ NANO System-on-Module processor, providing 128 CUDA® cores. It is designed for the Edge AI video
system which supports rich I/O with low power consumption. The system has 4GB LPDDR4 memory, 4K video decode/encode, 8ch POE and 2 x 3.5" HDD expansion.

Features


  • NVIDIA Jetson® NANO embedded
    • CPU Quad Core ARM Cortex A57 (Max. Operating Frequency: 1.43GHz)
    • GPU Maxwell GPU, 128 CUDA core, Performance up to 512 GFLOPS (FP16) (Max. Frequency: 921MHz)
  • 1x 10/100/1000 LAN ports embedded
    • Intel i211 network controllers
  • 8x POE
    • IEEE 802.3af with 15.4W per device
    • MICROSEMI PD69104B1ILQ LAN with Realtek RTL8316SI switch
    • 10/100 Mbps
  • 4GB LPDDR4 onboard
  • 16GB of eMMC Flash onboard
  • HDMI
  • Mini-PCIe connector
  • M.2 2280 M-Key
  • 8x DIO
  • Micro SD
  • Linux OS with BSP (board support package)
  • Supports deep learning trained models
  • Low Power Consumption

Overview


SIB-710IVA is an ARM-based system that uses the integrated NVIDIA® Jetson™ NANO System-on-Module processor, providing 128 CUDA® cores. It is designed for the Edge AI video
system which supports rich I/O with low power consumption. The system has 4GB LPDDR4 memory, 4K video decode/encode, 8ch POE and 2 x 3.5" HDD expansion.

Manuals
Data Sheets
MIC-710IVA_Datasheet.pdf

Specifications


Processor
CPU
nVIDIA Nano Quad Core ARM Cortex A57 + Maxwell GPU /w 128 CUDA core
Clock Speed
1.43 GHz
Memory
RAM
4GB LPDDR4 RAM onboard
Primary Flash
16G of eMMC
Secondary Flash
2x 3.5
Memory Misc.

Maxwell GPU, 128 CUDA core, Performance up to 512 GFLOPS (FP16) (Max. Frequency: 921MHz)

Primary IO
GPIO
8x DIO
Disk Interface
SATA
Video Out
HDMI (Max. resolution 3840x2160 @ 60Hz)
Ethernet
1x Intel i211 10/100/1000 BaseT gigabit & 8x POE 802.3af
USB
1x USB 3.0, 1x USB 2.0 & 1x USB OTG
Serial Ports
1x RS485
Primary I/O Misc.

Power Switch Power ON/OFF Switch x 1

COM RS-485 x 1

  • POE:
    • Controller MICROSEMI PD69104B1ILQ
    • LAN Switch Realtek RTL8316SI
    • Bandwidth 10/100 Mbps
    • Compliant IEEE 802.3af
    • Power Output 15.4W
Secondary IO
Power Supply
AC100-240V 250W ATX
Misc
Operating Systems
EMAC OE Linux
Operating Systems Compatibility

Ubuntu 18.04

Mechanical and Environmental


Dimensions
Size
11.8" ×13" ×2.24" (299mm × 330mm × 56mm)
Weight
3 kg
Power Requirements
Voltage
100 V
Power Misc.

Power Supply Voltage AC100-240V 250W ATX

Environmental
Low Operating Temperature0 C (32 F)
High Operating Temperature40 C (104 F)
Upper Operating Humidity
95%
Environmental Misc.

Vibration 0.5 Grms @ 5 ~ 500 Hz, random, 1 hr/axis

Pricing


Pricing correct as of January 2021. Please contact EMAC for Current Pricing and Lead Time. Due to volatility in the electronics industry pricing is subject to change.

OEM / Quantity Pricing Available on Request - Less Services

(Single Unit Pricing. Includes: Integration, Setup,Testing, & Enhanced Support)

Product # Description Price
SIB-710IV-A00 MIC-710IVA, Nvidia Jetson Nano, 4GB DDR4, 16GB eMMC, 2x 3.5" SATA drives, 1x RS485, 1x USB3, 1x USB2, 1x GbE LAN, 8x POE LAN, 4x GPI, 4x GPO, HDMI, 250wPS (0°-40°C) $809.00
