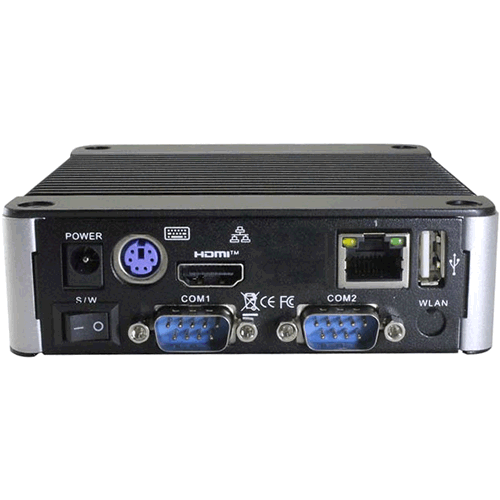

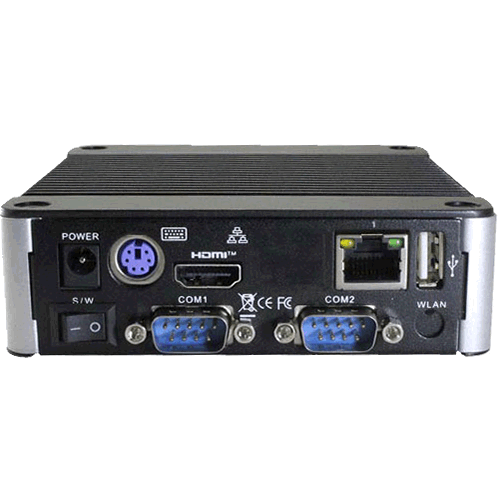

SIB-EB30H-C

  • Vortex86DX2 933MHz
  • 1GB/2GB DDR2 RAM
  • Up to 4x RS-232
  • 3x USB 2.0 Ports
  • 1x 10/100 Ethernet
  • HDMI Video Output
The EB-3330 & 3332 series is a revolutionary device which is especially designed for limited physical space and temperature concerns. No matter you are in a jammed office, a crowded place, or public transportation, the EB-3330 & 3332 can be easily integrated with a VESA LCD to bring it to access at any time.

Features

  • Vortex86DX2 933MHz
  • 1GB/2GB DDR2 RAM Onboard
  • Up to 4x RS-232 Ports
  • 3x USB 2.0 Ports
  • 1x 10/100 Ethernet
  • HDMI Video Output
  • 1x SD slot
  • 1x SATA 2.0
  • 2.5" SATA HDD/SSD Support
  • SD, SDHC Support
  • AMI BIOS
  • 1x HD Audio Mic In
  • 1x PS/2 for Keyboard/Mouse
  • 1x Line Out (Optional)
  • TTL Level RS-232 (Optional)
  • Auto Power On
  • Ultra Low Power
  • Includes 15V 1.5A wall Mount Power supply.
  • Fanless Design
  • Wifi (Optional)
  • 115 x 115 x 35mm
  • DC +8V ~ +15V
  • 5 ~50° C

Overview

The EB-3330 & 3332 series is a revolutionary device which is especially designed for limited physical space and temperature concerns. No matter you are in a jammed office, a crowded place, or public transportation, the EB-3330 & 3332 can be easily integrated with a VESA LCD to bring it to access at any time.

It can be attached to any VESA mounting fixture; allowing it to be securely mounted onto desks, walls, or buildings, and thereby optimizes your work area.

It can also be attached directly to any size LCD for a mobile system for the use at trade shows, presentations, promotions, etc. Unlike traditional portable laptop design, the EB-3330 & 3332 series can be used with a large size LCD. Furthermore, with FANLESS design, the EB-3330 & 3332 series is ideal to be used in the environment where temperature demand is critical.

So, if you are looking for a device that is able to provide you with more mobility & space but at the same time uses less power consumption, then the EB-3330 & 3332 series will be surely meet your need.

The VESA® FDMI™ Standard defines mounting interfaces, hole patterns and associated cable/power supply locations for LCD monitors, plasma displays and other flat panel devices. The EB-3330 & 3332 series is designed to fit this standard to make monitor attachment quickly and easily.

Manuals
ebox-333x_series_user_manual.pdf
Download (PDF)
Data Sheets
ebox-333x_vga_lan2_rs-232_series.pdf
Download (PDF)
ebox-333x_vga_lan1_rs-232_series.pdf
Download (PDF)
ebox-333x_hdmi_lan2_rs-232_series.pdf
Download (PDF)
ebox-333x_hdmi_lan1_rs-485_series.pdf
Download (PDF)
ebox-333x_hdmi_lan1_rs-232_series.pdf
Download (PDF)
EBOX-333x_VGA_LAN1_RS-485_Series.pdf
Download (PDF)

Specifications

Processor
CPU
Vortex86DX2
Clock Speed
933 MHz
Memory
RAM Type
DDR2 (Up to 2GB DDR2)
Primary Flash
1x 2.5 inch SATA HDD/SSD or DOM
Secondary Flash
1x SD slot
BIOS/ Bootloader
AMI BIOS
Primary IO
Disk Interface
1x SATA 2.0
Audio
HD Audio Mic In
Video Out
HDMI
Ethernet
1x 10/100 Ethernet
USB
3x USB 2.0 Ports
Serial Ports
Up to 4x RS-232
Secondary IO
PS/2
Yes
Power Supply
DC +8V ~ +15V (Included Wall Mount 15V 1.5A power supply)
Misc
Operating Systems
EMAC OE Linux, MicroPython, FreeRTOS, EMAC OE, Qt, ROM-DOS 6.22 / MS-DOS 6.22

Mechanical and Environmental

Dimensions
Size
4.5" ×4.5" ×1.38" (114mm × 114mm × 35mm)
Weight
500 g (1 lbs)
Power Requirements
Voltage
8 V
Power Misc.

DC +8 ~ +15V
Environmental
Low Operating Temperature5 C (41 F)
High Operating Temperature50 C (122 F)

Pricing

Pricing correct as of January 2021. Please contact EMAC for Current Pricing and Lead Time. Due to volatility in the electronics industry pricing is subject to change.

OEM / Quantity Pricing Available on Request - Less Services

(Single Unit Pricing. Includes: Integration, Setup,Testing, & Enhanced Support)

Product # Description Price
SIB-EB30H-201-R EB-3330-C2DMI, Vortex86DX2 933MHz, 1GB RAM, 2x RS-232, 3xUSB2, 1xLAN, HDMI $209.00
SIB-EB30H-401-R EB-3330-C4DMI, Vortex86DX2 933MHz, 1GB RAM, 4x RS-232, 3xUSB2, 1xLAN, HDMI $235.00
SIB-EB32H-201-R EB-3332-C2DMI, Vortex86DX2 933MHz, 2GB RAM, 2x RS-232, 3xUSB2, 1xLAN, HDMI $216.05
SIB-EB32H-401-R EB-3332-C4DMI, Vortex86DX2 933MHz, 2GB RAM, 4x RS-232, 3xUSB2, 1xLAN, HDMI $253.00

Peripheral Options

Product # Description Price
Peripherals
PER-USB-00006-R USB WLAN WiFi Module Internal $31.00
PER-FLS-00232-R 16GB SATA DOM 7+15PIN MLC Call
Operating Systems
SL05x-XON-xx EMAC OE Linux 5.x for x86 (Free installation at time of purchase of SBC & media) Free
SD622-000-0005 ROM DOS 6.22 - ROM DOS 6.22 LICENSE ROM-DOS IS GUARANTEED BY DATALIGHT TO BE 100% COMPATIBLE WITH MS-DOS 6.22 ROM-DOS LICENSES SOLD ONLY WITH HARD DRIVE OR FLASH DRIVE MEDIA $35.00
SD622-000-0010 MS-DOS 6.22 - MSDOS 6.22 LICENSE MS-DOS 6.22 LICENSES are EOL and no longer SOLD, see ROM-DOS 6.22 Part number: SD622-000-0005 as alternate. Call
SC600-000-0010D Windows CE 6.0 Pro License (Basic configured installation included with License, Flash and SBC purchase; SOLD ONLY WITH HARD DRIVE OR FLASH DRIVE MEDIA) $25.00
SX300-000-0000D Windows Embedded Standard 2009 (WES09) & License (Base configured installation included with License, Flash and SBC purchase; SOLD ONLY WITH HARD DRIVE OR FLASH DRIVE MEDIA) $125.00
S7000-NOL-00020 Windows Embedded Standard 7 (WES7) & License. SOLD ONLY WITH HARD DRIVE OR FLASH DRIVE MEDIA (EOL 10/13/2020) $125.00
