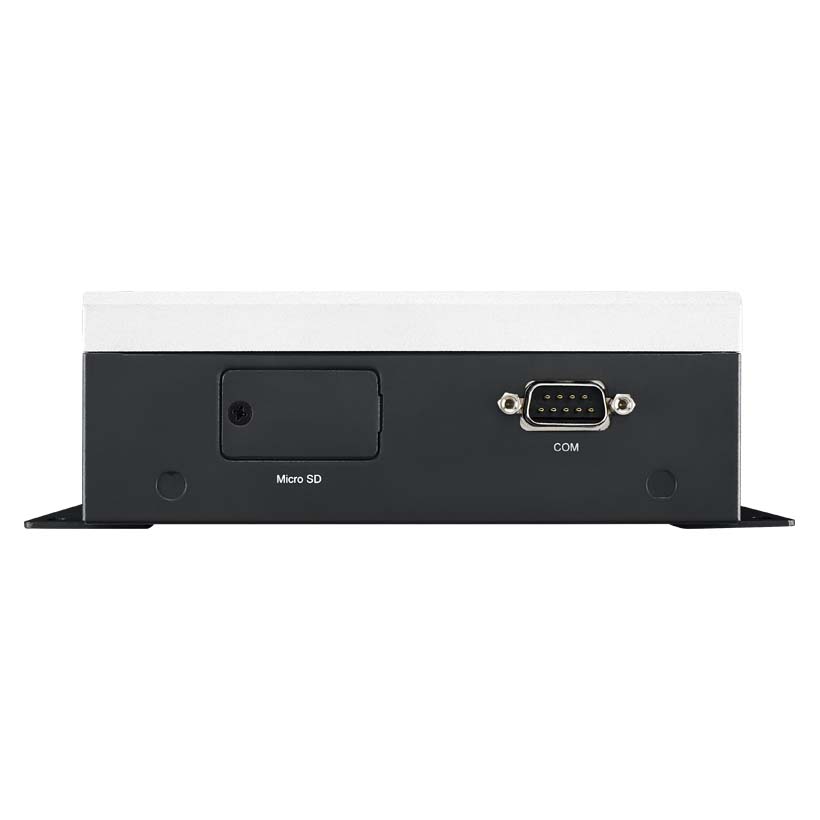

SIB-710AI NVIDIA Jetson NANO AI


  • Fanless and compact design
  • NVIDIA Jetson® NANO embedded
  • 2x 10/100/1000 LAN ports embedded
  • Linux OS with BSP (board support package)
  • Supports deep learning trained models
  • Wide-operating temperature range

Embedded Box Edge AI Inference Computer with NVIDIA Jetson for real-time video image applications targeted to surveillance, transportation, and manufacturing sectors.

Features




  • NVIDIA Jetson® NANO embedded
    • CPU Quad Core ARM Cortex A57 (Max. Operating Frequency: 1.43GHz)
    • GPU Maxwell GPU, 128 CUDA core, Performance up to 512 GFLOPS (FP16) (Max. Frequency: 921MHz)
  • 2x 10/100/1000 LAN ports embedded
    • Intel i211 network controllers
  • 4GB LPDDR4 onboard
  • 16GB of eMMC Flash onboard
  • HDMI
  • Mini-PCIe connector
  • M.2 2280 M-Key
  • Micro SD
  • Linux OS with BSP (board support package)
  • Supports deep learning trained models
  • Wide-operating temperature range
  • Fanless and compact design

Overview


Embedded Box Edge AI Inference Computer with NVIDIA Jetson for real-time video image applications targeted to surveillance, transportation, and manufacturing sectors.

Manuals
Data Sheets
MIC-710AI_Datasheet.pdf

Specifications


Processor
CPU
nVIDIA Nano Quad Core ARM Cortex A57 + Maxwell GPU /w 128 CUDA core
Clock Speed
1.43 GHz
Memory
RAM
Onboard DDR4
RAM Type
4GB LPDDR4
Primary Flash
16G of eMMC
Secondary Flash
SD card
Primary IO
GPIO
4-bit In, 4-bit Out
Disk Interface
M.2 2280 M Key, Micro SD card
Video Out
HDMI (Max. resolution 3840x2160 @ 60Hz)
Ethernet
2x Gigabit Ethernet (10/100/1000 Mbps) Intel i211
USB
1x USB 3.0, 1x USB 2.0, 1x USB 2.0 internal.
Serial Ports
1 x RS-232/RS-422/RS-485
Primary I/O Misc.

8 bit DI/DO (4 in & 4 out)

1 x Power on/off switch



Secondary IO
Power Supply
Power Adaptor: 19-24V (1.5A-1.18A)
Misc
Operating Systems
EMAC OE Linux
Operating Systems Compatibility

Linux OS with BSP (board support package)

Mechanical and Environmental


Dimensions
Size
5.7" ×4.6" ×2.4" (144mm × 116mm × 60mm)
Weight
1.2 kg
Dimensions Misc.

Desktop/wall mount

Power Requirements
Voltage
19 V
Typical Voltage
19 V
Power Misc.

Power Adaptor: 19-24V (1.5A-1.18A)

Terminal Block 2 Pin.

Environmental
Low Operating Temperature-10 C (14 F)
High Operating Temperature60 C (140 F)
Upper Operating Humidity
95%

Pricing


Pricing correct as of January 2021. Please contact EMAC for Current Pricing and Lead Time. Due to volatility in the electronics industry pricing is subject to change.

OEM / Quantity Pricing Available on Request - Less Services

(Single Unit Pricing. Includes: Integration, Setup,Testing, & Enhanced Support)

Product # Description Price
SIB-710AI-000R1 MIC-710AI, Nvidia Jetson Nano 4x1.43Ghz, 4GB LPDDR4 RAM, 16GB eMMC Flash, M.2 2280 flash, Micro SD, 1x COM, 1x USB3, 1x USB2, 2x GbE, HDMI, -10° to 60°C $725.00
