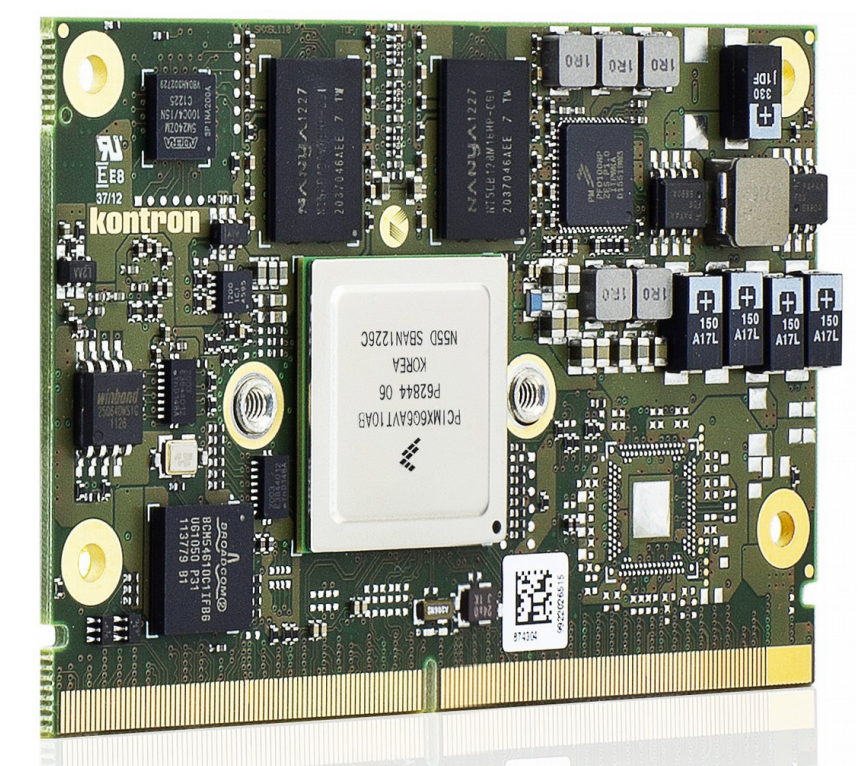

The highly scalable SMARC-sAMX6i modules with single, dual or quad core Freescale i MX6 processors cover an extremely wide performance range. Based on the ARM Cortex A9 technology, they enable an efficient development of smart devices in an extremely compact, fanless design with balanced processor and graphics performance. The X86 alike interfacing of SMARC-sAMX6i allows an easy integration in any kind of application.
Features
- Freescale™ i.MX6 family SoC
- Scalable from Solo Core up to Quad Core
- Industrial Temperature Operation
- Robust SMARC input offerings
- ARM specific featureset incl. PCIe and graphic
- Up to 64GB NAND/eMMC on-module (Custom Option)
- Gigabit Ethernet
- 4x Serial ports
- Up to 3x PCIe x1, MLB150, 12xGPIOs, SDIO, SATA eMMC, 2x SPI, 5x I2C, 2x I2S, SPDIF, WDT, 2x CAN, Battery and System Management
Overview
The highly scalable SMARC-sAMX6i modules with single, dual or quad core Freescale i MX6 processors cover an extremely wide performance range. Based on the ARM Cortex A9 technology, they enable an efficient development of smart devices in an extremely compact, fanless design with balanced processor and graphics performance. The X86 alike interfacing of SMARC-sAMX6i allows an easy integration in any kind of application.
The SMARC™ standard was developed especially for new modules with ARM- and SOC-processors and is characterized by the extremely flat build of its form factor. It is based on the MXM 3.0 connector with 314 pins and a construction height of just 4.3 millimeters and it thus allows robust and flatly constructed designs with a cost-effective card edge connector. The connector is also available in a shock- and vibration-resistant version for rough environmental conditions. Furthermore, the standard integrates dedicated interfaces for the latest ARM and SOC processors which not only means LVDS, 24-bit RGB and HDMI support but also support of embedded DisplayPort for future designs. In addition, and for the first time, dedicated camera interfaces are being incorporated into a COM standard. OEMs profit from minimized design effort and bill of material costs. SMARC™ defines two different module sizes in order to offer a high level of flexibility regarding different mechanical requirements: a short modules measuring 82 mm x 50 mm and a full-size module measuring 82 mm x 80 mm.
SMARC™ is the low-power embedded architecture platform for computer-on-modules based on ARM technology.
» Creating mobile, embedded, connected solutions
» Scalable building blocks
» Optimized pin-out definition for ARM technology
» Ultra low-power, low-profile solutions
» Constructed to withstand harsh industrial environments
Manuals |
---|
Data Sheets | |
---|---|
ROM-51003-datasheet_smarc-samx6i.pdf | Download (PDF) |
Specifications
Processor | |
---|---|
CPU | Freescale i.MX6 |
Clock Speed | 800 MHz |
Processor Misc. | Freescale i.MX 6 Solo, Dual and Quad Core ARM Cortex-A9 800 MHz |
Memory | |
---|---|
RAM | up to 2 GB DDR3 Memory onboard |
Primary Flash | up to 32GB onboard eMMC(SLC) |
Secondary Flash | SD Card / eMMC support |
BIOS/ Bootloader | U-Boot Boot loader |
Memory Misc. | Max Memory is 1GB for Solo CPU |
Primary IO | |
---|---|
GPIO | 12x GPIO |
SDIO | 1x SDIO |
Disk Interface | 1x SATA II |
Audio | I2S interface |
Video Out | LVDS, HDMI and TTL LCD |
Ethernet | Broadcom Phy Gigabit Ethenret |
USB | 3x USB 2.0 |
Serial Ports | 4x COM ports |
Primary I/O Misc. | SATA is not available on modules with i.MX6 solo processor. |
Secondary IO | |
---|---|
CAN | 2x CAN 2.0B |
SPI | 2x SPI |
Video Capture | 2x CSI camera support |
I2C | 5x I2C |
Expansion | |
---|---|
Bus Expansion | SMARC Spec v1.1 |
Bus Misc. | 3x PCIe x1
|
Misc | |
---|---|
Operating Systems | EMAC OE Linux |
Operating Systems Compatibility | Aviliable upon request:
|
SOM Type | Microcontroller SODIMM Modules |
Mechanical and Environmental
Dimensions | |
---|---|
Size | 3.23" ×1.97" (82mm × 50mm) |
Power Requirements | |
---|---|
Power Misc. | 3V to 5.25V - Operates directly from single level Lithium Ion cells, or fi xed 3.3V or 5V power supplies i.MX6 solo
i.MX6 quad
|
Environmental | |
---|---|
Low Operating Temperature | -40 C (-40 F) |
High Operating Temperature | 85 C (185 F) |
Upper Operating Humidity | 90% |
Pricing
Pricing correct as of January 2021. Please contact EMAC for Current Pricing and Lead Time. Due to volatility in the electronics industry pricing is subject to change.
OEM / Quantity Pricing Available on Request - Less Services
(Single Unit Pricing. Includes: Integration, Setup,Testing, & Enhanced Support)
Product # | Description | Price |
---|---|---|
ROM-51003-081-R | 51003-0540-08-1, SMARC-sAMX6i, i.MX6 1x800MHz, 512MB DDR3, 4GB eMMC, 4xCOM, 3xUSB2, GbE, 2xCAN, HDMI (-40~85C) | Call |
ROM-51003-082-R | 51003-1040-08-2, SMARC-sAMX6i, i.MX6 2x800MHz, 1GB DDR3, 4GB eMMC, SATA, 4xCOM, 3xUSB2, GbE, 2xCAN, HDMI (-40~85C) | Call |
ROM-51003-084-R | 51003-1040-08-4, SMARC-sAMX6i, i.MX6 4x800MHz, 1GB DDR3, 4GB eMMC, SATA, 4xCOM, 3xUSB2, GbE, 2xCAN, HDMI (-40~85C) | Call |
Carrier Board Options
Peripheral Options
Product # | Description | Price |
---|---|---|
Peripherals | ||
PER-FAN-00104-R | heat spreader for SMARC-sAMX6 full size | $15.00 |
PER-HDW-00001-R | Mounting Kit for SMARC Module (screws) | $5.00 |
COM-51100-DEV-R | 51100-0000-00-0, SMARC (ULP-COM) Evaluation Carrier | Call |
COM-S1100-SSK-R | 51100-0000-00-S, SMARC StarterKit Includes-Evalutation carrier, 10" display with touch, 12V power supply, cables, accessories. (Less SMARC Module and cooling solution) | $1869.00 |
