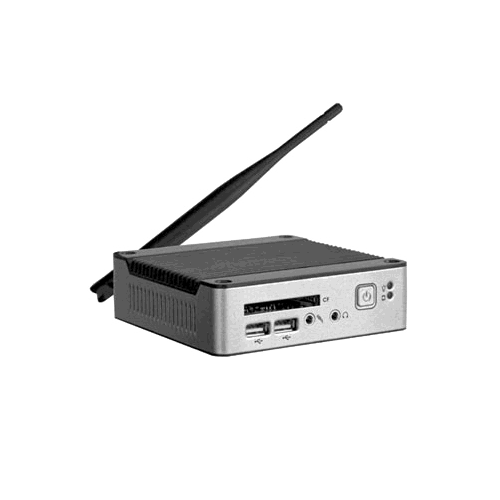

Compact Deluxe Server-In-a-Box (SIB) EBOX-4300

  • Ultra Low Power, Small Fanless Embedded PC
  • VIA Eden 500MHZ fanless processor
  • 512MB DDR2 onboard, Compact Flash Slot
  • 10/100 Base-T Ethernet, 3x USB 2.0, 2x RS-232
  • Mini-PCI Socket, Optional wireless LAN

The EMAC Compact Server-In-a-Box (SIB), is a low cost, small footprint, yet powerful Server. The Compact SIB utilizes the Vortex 486 class, 1GHz fanless processor allowing it to run Linux, WinCE and even XPE* Operating Systems. Like all SIBs, the standard Compact SIB has no moving parts and features a rugged enclosure design making it an ideal choice for most industrial applications.

Features

  • Fanless x86 500MHz CPU
  • 512MB DDR2 On Board
  • Compact flash or EmbedDisk Internal Flash Disk
  • 10/100 Base-T Ethernet
  • Extremely Reliable (No Moving Parts)
  • Compact Flash Socket
  • SD Flash Socket
  • 3 USB 2.0 Host Ports
  • Analog SVGA Video
  • 2 RS232 Serial Ports
  • On Board AC97 Audio
  • PS/2 Keyboard & Mouse Port
  • Bus expansion with onboard Mini-PCI connector
  • VESA hole pattern allows SIB to directly bolt to LCD monitor
  • Power supply and enclosure included.

Overview

The EMAC Compact Server-In-a-Box (SIB), is a low cost, small footprint, yet powerful Server. The Compact SIB utilizes the Vortex 486 class, 1GHz fanless processor allowing it to run Linux, WinCE and even XPE* Operating Systems. Like all SIBs, the standard Compact SIB has no moving parts and features a rugged enclosure design making it an ideal choice for most industrial applications. The Compact SIB is just as comfortable in a basement wiring closet as it is on a desktop.

Purchase a EMAC SIB and you should be up, running and building applications the first day.

*Note: while the Compact SIB can run XPE its graphic capabilities are limited. If advanced graphic capabilities are required under XPE please choose the Deluxe Compact SIB.

Click Here for more information on EMAC's Linux for SIBs.
Click Here for more information on EMAC's XPE for SIBs.

Manuals
ebox_4300_manual.pdf
Download (PDF)
Data Sheets
4300-DS.pdf
Download (PDF)

Specifications

Processor
CPU
VIA Eden ULV
Clock Speed
500 MHz
Processor Misc.

VIA Eden ULV 500MHz
Memory
RAM Type
DDR2
Primary Flash
Compact Flash
Secondary Flash
EmbedDisk
Memory Misc.

Compact Flash Socket

Micro SD Flash Socket

Up to 512MB DDR2 RAM (Optional)

Up to 1GB EmbedDisk (Optional) (or) Up to 64GB Compact Flash (Optional)
Primary IO
Audio
On Board AC 97 Audio line in and mic out
Video Out
15-pin D-type female VGA connector
Ethernet
10/100 Base-T Ethernet
USB
3x USB 2.0 Host Ports
Serial Ports
2 RS232 Serial Ports
Secondary IO
PS/2
Yes
Power Supply
Power Supply Voltage: +5V (4.57 ~ 5.25 V) (Power Supply Provided)
Secondary I/O Misc.

Internal Wireless 802.11g w/ 4dbi antenna (Optional)

Wireless antennas remote magnet-mount 7dbi and remote 15dbi directional (Optional)
Misc
Operating Systems
EMAC OE Linux, FreeRTOS, EMAC OE, Yocto

Mechanical and Environmental

Dimensions
Size
4.53" ×4.53" ×1.38" (115mm × 115mm × 35mm)
Weight
505 g (1 lbs)
Dimensions Misc.

VESA hole pattern allows SIB to directly bolt to LCD monitor
Power Requirements
Voltage
5 V
Typical Voltage
5 V
Typical Current
2 A
Power Misc.
  • Power Supply Voltage: +5V (4.57 ~ 5.25 V) (Power Supply Provided)
  • Maximum Power Requirements: +5V @ 2.0 A (typical)
Environmental
Low Operating Temperature5 C (41 F)
High Operating Temperature50 C (122 F)
Upper Operating Humidity
90%
Related Products
SIB-EB30V-C

Pricing

Pricing correct as of January 2021. Please contact EMAC for Current Pricing and Lead Time. Due to volatility in the electronics industry pricing is subject to change.

OEM / Quantity Pricing Available on Request - Less Services

(Single Unit Pricing. Includes: Integration, Setup,Testing, & Enhanced Support)

Product # Description Price
EBOX-4300 EBOX-4300-JSK, VIA Eden 500MHz, 512MB RAM, 2COM, 3xUSB2, 10/100, VGA (limited stock remains) $349.00
