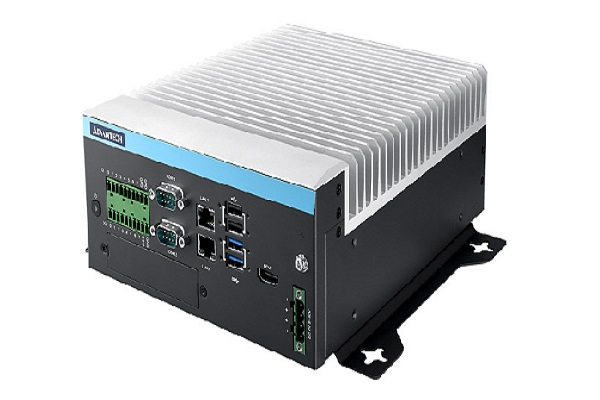

Embedded Box Edge AI Inference Computer with NVIDIA Jetson for real-time video image applications targeted to surveillance, transportation, and manufacturing sectors.

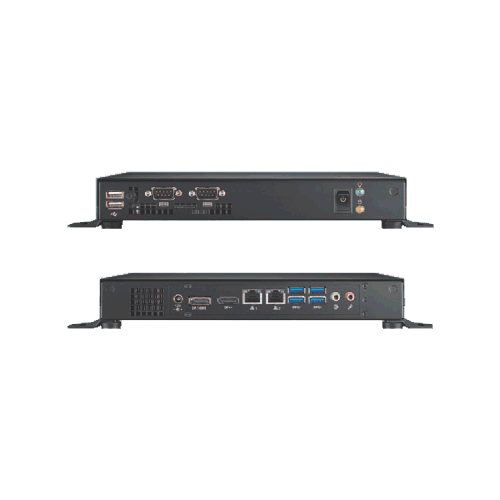

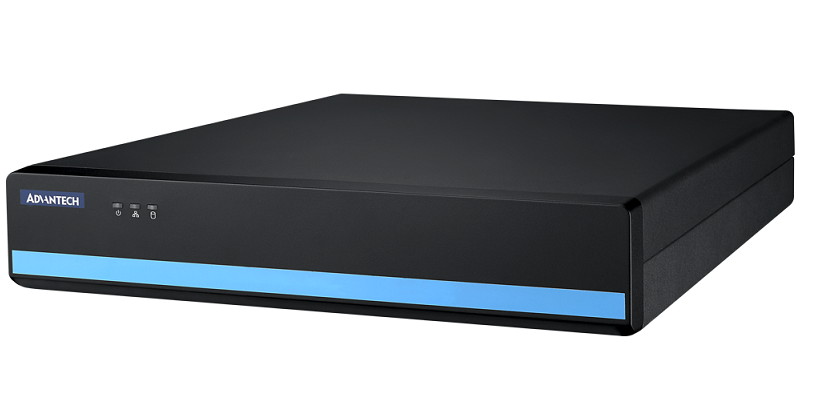

SIB-A1230
- 4rd Gen. Intel® Core™ i5-4300U or Intel® Celeron™ 2980U
- Up to 16 GB DDR3L SODIMM SDRAM
- 2.5 inch SATA HDD/SSD
- 2x USB 2.0 & 4x USB 3.0 Ports
- 2x 10/100/1000 Mbps
- 1x HDMI & 1x DP++
Ultra Thin Embedded Mini-ITX Box. Economic embedded system with 5 yrs longevity. Easy opening design, quick installation for additional peripherals. Shock-resistant 2.5" drive bay. Low power and low noise design. Locking type DC power jack
Features
- 4rd Gen. Intel® Core™ i5-4300U or Intel® Celeron™ 2980U (on board) or 4th Gen Intel® Core™ ULT + Lynx Point-LP
- 16x GB DDR3L 1600 MHz SDRAM
- Up to 16 GB at 8 GB per SODIMM.
- 2 x 204 PIN DDR3 SODIMM (Non-ECC)
- 2.5 inch SATA HDD/SSD or mSATA
- Integrated Intel HD Graphics
- 2x RS-232
- 2x USB 2.0 & 4x USB 3.0 Ports
- 2x 10/100/1000 Mbps with RJ-45
- 1x HDMI & 1x DP++
- 2x Mini-PCIe (1x Full-Size & 1x Half-Size, fullsize is mSATA shared)
- AMI EFI 128 Mbit, SPI
- Realtek ALC892, High Definition Audio(HD) 2x (Line-Out, Mic-In)
- 2x Power LED, HDD LED
- Optional WiFi
- 1 Power Button
- Economic embedded system with 5 yrs longevity
- Easy opening design, quick installation for additional peripherals
- Low power and low noise design
- 12V DC power input
- 13.8W (idle with Core i5); 31.92W (full load with Core i5)
- Operating Temperature: 0 ~ 40° C (32 ~ 104° F)
- Humidity: 10~85% @ 40°C, non-condensing
- Ultra Thin design with 35mm in height
- 250 x 35 x 190 mm (9.84" x 1.38" x 7.48")
Overview
Ultra Thin Embedded Mini-ITX Box. Economic embedded system with 5 yrs longevity. Easy opening design, quick installation for additional peripherals. Shock-resistant 2.5" drive bay. Low power and low noise design. Locking type DC power jack
| Manuals | |
|---|---|
| AIMB-B1000_Series_user_manual.pdf | Download (PDF) |
| Data Sheets | |
|---|---|
| AIMB-B1000_DS.pdf | Download (PDF) |
Specifications
| Processor | |
|---|---|
| CPU | 4rd Gen. Intel® Core™ i5-4300U or Intel® Celeron™ 2980U |
| Memory | |
|---|---|
| RAM Type | DDR3L 1600 MHz SODIMM |
| Primary Flash | 2.5 inch SATA HDD/SSD |
| Secondary Flash | mSATA |
| BIOS/ Bootloader | AMI EFI |
| Memory Misc. | Up to 16GB DDR3L in 2 SODIMM modules |
| Primary IO | |
|---|---|
| Disk Interface | SATA III |
| Audio | Realtek ALC892 |
| Video Out | HDMI & DP++ |
| Ethernet | 2x 10/100/1000 Mbps with RJ-45 |
| USB | 2x USB 2.0 & 4x USB 3.0 Ports |
| Serial Ports | 2x RS-232 |
| Secondary IO | |
|---|---|
| Power Supply | 12V DC power input |
| Misc | |
|---|---|
| Operating Systems | EMAC OE Linux, WES 7 - Windows Embedded Standard 7, Windows 10 IoT Enterprise LTSC |
Mechanical and Environmental
| Dimensions | |
|---|---|
| Size | 9.84" ×1.38" ×7.48" (249mm × 35mm × 189mm) |
| Weight | 1.8 kg |
| Dimensions Misc. | 250 x 35 x 190 mm (9.84" x 1.38" x 7.48") |
| Power Requirements | |
|---|---|
| Voltage | 12 V |
| Environmental | |
|---|---|
| Low Operating Temperature | 0 C (32 F) |
| High Operating Temperature | 40 C (104 F) |
| Upper Operating Humidity | 85% |
| Environmental Misc. | 0 ~ 40° C (32 ~ 104° F)
10~85% @ 40°C, non-condensing
|
Pricing
Pricing correct as of January 2021. Please contact EMAC for Current Pricing and Lead Time. Due to volatility in the electronics industry pricing is subject to change.
OEM / Quantity Pricing Available on Request - Less Services
(Single Unit Pricing. Includes: Integration, Setup,Testing, & Enhanced Support)
| Product # | Description | Price |
|---|---|---|
| SIB-A1230-000-R | AIMB-B12300, 4rd Gen. Intel® Core™ Celeron™ 2980U, 2xRS232, 2xUSB2, 4xUSB3, 2x Gig-LAN, Audio, HDMI/DP & DP++ | $415.00 |
| SIB-A1235-000-R | AIMB-B12305, 4th Gen Intel® Core™ i5-4300U, 2xRS232, 2xUSB2, 4xUSB3, 2x Gig-LAN, Audio, HDMI/DP & DP++ | $924.00 |
Peripheral Options
| Product # | Description | Price |
|---|---|---|
| Peripherals | ||
| PER-RAM-00161 | 4GB DDR3L 1.35V SODIMM | Call |
| PER-RAM-00165 | 2GB DDR3L 1.35V SODIMM (Industrial Temp -40 to 85C) | Call |
| PER-FLS-00091-R | mSATA Flash module 32GB MLC Std | Call |
| PER-FLS-00102-R | mSATA Flash module 32GB MLC (-40 to 85°C) | Call |
| Cables & Adapters | ||
| CAB-80-001-1 | CABLE POWER 110V AC GND OUTLET | $3.00 |
| PER-PWR-00088 | 1757003064 Adapter DC 12V @ 7A for 84W, AC: 100-240VAC, 1.3A 50-60Hz | $40.00 |
| Operating Systems | ||
| SL05x-XON-xx | EMAC OE Linux 5.x for x86 (Free installation at time of purchase of SBC & media) | Free |
| S7000-NOL-00020 | Windows Embedded Standard 7 (WES7) & License. SOLD ONLY WITH HARD DRIVE OR FLASH DRIVE MEDIA (EOL 10/13/2020) | $125.00 |
| SW010-LBS000X0V | Win10 IoT Ent LTSB 2016 Value Pentium, Rest of Celeron, Core i3, Core i5, Core M AMD R-Series, A10, A8 Rest of FX Models (Basic configured installation included with License, Flash and SBC purchase; SOLD ONLY WITH HARD DRIVE OR FLASH DRIVE MEDIA) | $100.00 |
