The PC/104 Can-Tainer™

• Rugged anodized alumnium
• Isolating shock mount
• Internal stack vibration mount
• Internal rubberized corners allow easy insertion of PC/104 modules
• Protection from high frequency vibration and low frequency G-forces

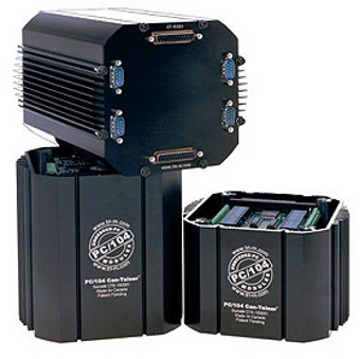

The PC/104 Can-Tainer™ is a new and unique design specifically intended to protect PC/104 electronics such as instrumentation, data collectors, remote terminals, SCADA packages or other solutions that operate in hostile environments. These enclosures accommodate any number of PC/104 modules, their cabling and peripherals, with maximum flexibility in a minimum amount of space.

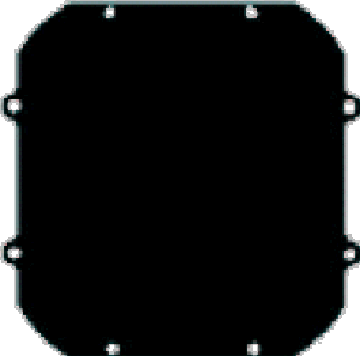

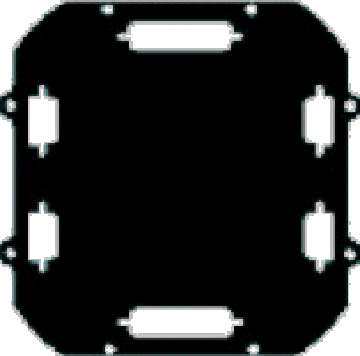

When deploying electronics in mobile or vehicle applications, vibration and G-forces can greatly reduce their life expectancy and reliability. The Can-Tainer™ ensures the PC/104 modules receive maximum protection from vibration and G-forces. This is accomplished using a dual system of isolating and absorbing rubber mountings. Internally, each corner of the PC/104 stack is held in place by a rubber corner system which isolates the PC/104 cards from the extruded aluminium enclosure as it absorbs high frequency vibration. Externally, the anodized aluminium enclosure mates with a thick rubber-mounting pad allowing Can-Tainer™ to be attached to a bulkhead while it absorbs low frequency G-forces. The Can-Tainer™ endcaps are available with and without I/O DB9 and DB25 holes.

The standard Can-Tainer™ measures 5.4” x 6.0" (L x W) and comes in many different heights. Custom I/O endcaps can be ordered by modifying standard endcap drawings, available in DXF or PDF format. A wide variety of other accessories including mini-fan kit, cable kit &,vertical dividers are also offered. For further detailed information, please contact us.

Additional Options
