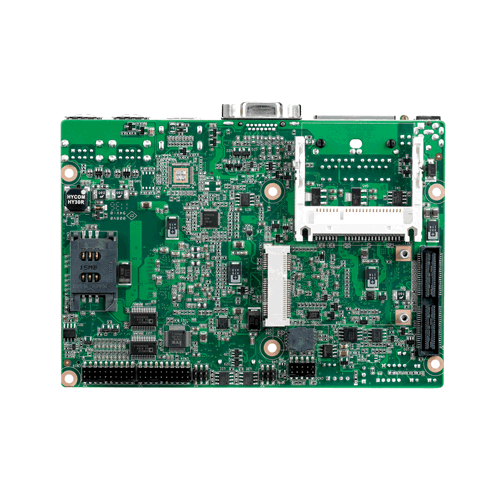

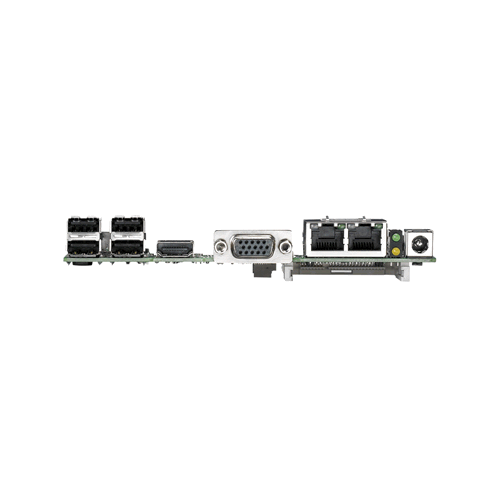

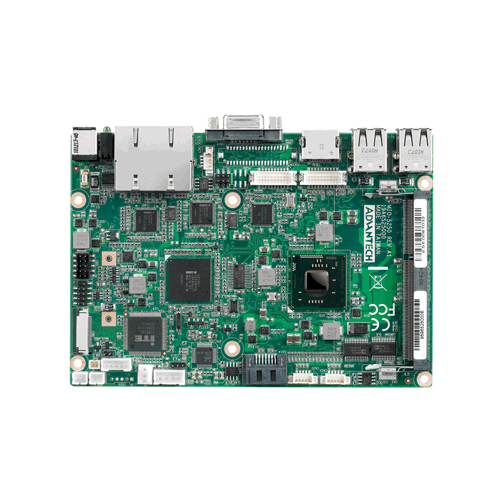

MIO-5250 3.5" SBC
22Mpi711MM55
22Mpi811MM55
22Mpi111MM55 The manufacturer created the stackable architecture MI/O Extension Single Board Computer as a SBC design with flexible and multiple I/O support (hence the name MI/O) and united extended interface connector. MIO-5250 is a MI/O-Compact SBC (Single oard Computer) with Intel® Atom™ Cedar Trail ultra low power solution supporting up to 4GB 800/1066MHz DDR3, 6 USB2.0, SATAII (300 MBs), 4 COM and 2 GbE (up to 1000 Mbps). MIO-5250 supports dual displays, including VGA+LVDS, VGA+HDMI, and HDMI+LVDS. Also have flexible storage option, including mSATA and CFast. In addition, MIO-5250 supports DisPlayPort, PCIe x1, USB2.0, LPC, SMBus, HD audio line out and Power from MIOe. Users can choose from a standard module or design their own modules to secure domain knowledge and expedite their design schedule.
Features
- Embedded Intel® Atom™ N2600/D2550 Dual Core 1.6GHz/ 1.86GHz
- Up to 4 GB DDR3 800MHz (N2600)/DDR3 1066 MHz (D2550)
- 2x RS-232, 2x RS232/422/485
- 2x 10/100/1000Mbps with 2x RJ45 on Rear I/O
- 1x SATA II, 1x mSATA/CFast
- DirectX 9 18/24-bit LVDS1/48-bit LVDS2/HDMI/VGA
- 2x USB 2.0 Ports
- DirectX 9, multiple display: 18/24-bit LVDS1, 48-bit LVDS2, HDMI, VGA
- Flexible design using integrated multiple I/O: MIOe to approach vertical applications & keep domain knowhow.
- 2 GbE support, HD Audio, Rich I/O interface with 4 COM, 1 SATA, I2C or SMBus, 8-bit GPIO, PCIe Mini Card & CFast
- Supports iManager, SUSIAccess and Embedded Software APIs
- Realtek ALC892 (HD) Line-in Line out / Mic-in / Optional via MIOe
- 8-bit GPIO
- Watchdog
- AMI EFI 16Mbit
- Single 12V ± 10%
- Operating temperature: 0 ~ 60°C (32~140°F)
- Operating Humidity: 0% ~ 90% Relative Humidity, non-condensing
- Dimensions: 146 x 102 x .20mm
Overview
The manufacturer created the stackable architecture MI/O Extension Single Board Computer as a SBC design with flexible and multiple I/O support (hence the name MI/O) and united extended interface connector. MIO-5250 is a MI/O-Compact SBC (Single oard Computer) with Intel® Atom™ Cedar Trail ultra low power solution supporting up to 4GB 800/1066MHz DDR3, 6 USB2.0, SATAII (300 MBs), 4 COM and 2 GbE (up to 1000 Mbps). MIO-5250 supports dual displays, including VGA+LVDS, VGA+HDMI, and HDMI+LVDS. Also have flexible storage option, including mSATA and CFast. In addition, MIO-5250 supports DisPlayPort, PCIe x1, USB2.0, LPC, SMBus, HD audio line out and Power from MIOe. Users can choose from a standard module or design their own modules to secure domain knowledge and expedite their design schedule.
| Manuals | |
|---|---|
| MIO-5250_User_Manual_Ed.3_FINAL.pdf | Download (PDF) |
| Data Sheets | |
|---|---|
| MIO-5250_DS.pdf | Download (PDF) |
| ACK-A004E_DS.pdf | Download (PDF) |
Specifications
| Processor | |
|---|---|
| CPU | Embedded Intel® Atom™ N2600 or D2550 Dual Core |
| Clock Speed | 1.86 GHz |
| Processor Misc. | CPU: Intel® Atom
• N2600 (Dual Core 1.6GHz) on MIO-5250N-S6A1E • D2550 (Dual Core 1.86GHz) on MIO-5250D-S8A1E Chipset: Intel® Atom N2600 / D2550 + NM10
|
| Memory | |
|---|---|
| RAM | Up to 4 GB DDR3 800MHz (N2600) / DDR3 1066 MHz (D2550) |
| BIOS/ Bootloader | AMI EFI 16Mbit |
| Primary IO | |
|---|---|
| GPIO | 8-bit GPIO |
| Disk Interface | 1x SATA II / 1x mSATA / CFast |
| Audio | Realtek ALC892 (HD) Line-in Line out / Mic-in / Optional via MIOe |
| Video Out | Realtek ALC892 (HD) Line-in / Line out / Mic-in / Amplifier Optional via MIOe |
| Ethernet | 2x 10/100/1000Mbps with 2x RJ45 on Rear I/O |
| USB | 2x USB 2.0 Ports |
| Serial Ports | 2x RS-232 / 2x RS232/422/485 |
| Secondary IO | |
|---|---|
| Display | |
|---|---|
| Display Type | DirectX 9 and OpenGL3.0 support |
| Chipset | Integrated Intel GMA 3600 series |
| CRT-VGA Interface | Up to 1920 x 1200 |
| LVDS Interface | 18/24-bit LVDS1: up to 1366 x 768 (N2600) / 1440 x 900 (D2550) / 48-bit LVDS2: 1920 x 1200 (only for MIO-5250D-S8A1E) |
| HDMI/DVI Interface | Supports 1920 x 1200 / Max data rate: Up to 1.65 Gb/s / Supports HDMI v1.3 Up to 1080p support |
| Multi-Display | DirectX 9 18/24-bit LVDS1 / 48-bit LVDS2 / HDMI / VGA |
| Expansion | |
|---|---|
| Bus Expansion | Full-size Mini PCIe with SIM Holder / CFast / MIOe |
| Misc | |
|---|---|
| Operating Systems | EMAC OE Linux, ROM-DOS 6.22 / MS-DOS 6.22 |
Mechanical and Environmental
| Dimensions | |
|---|---|
| Size | 5.7" ×4" (144mm × 101mm) |
| Weight | 0.74 kg |
| Dimensions Misc. | 146 x 102 x 29 mm (5.7" x 4"), same as 3.5" |
| Power Requirements | |
|---|---|
| Voltage | 12 V |
| Environmental | |
|---|---|
| Low Operating Temperature | 0 C (32 F) |
| High Operating Temperature | 60 C (140 F) |
| Upper Operating Humidity | 90% |
| Environmental Misc. | Operating temperature: 0 ~ 60°C (32~140°F)
Operating Humidity: 0% ~ 90% Relative Humidity, non-condensing
Storage temperature: -40~85°C
|
| Related Products | |
Pricing
Pricing correct as of January 2021. Please contact EMAC for Current Pricing and Lead Time. Due to volatility in the electronics industry pricing is subject to change.
OEM / Quantity Pricing Available on Request - Less Services
(Single Unit Pricing. Includes: Integration, Setup,Testing, & Enhanced Support)
| Product # | Description | Price |
|---|---|---|
| MIO-5250D-S8A1E | 3.5" SBC, MIO-5250D, D2550 DC, 4xCOM, 6xUSB2, 2xGbE, Audio, VGA, HDMI | Call |
| MIO-5250DZ22GS8A1E | 3.5" SBC, MIO-5250D-IT, D2550 DC, 2GB RAM, 4xCOM, 6xUSB2, 2xGbE, Audio, VGA, HDMI (-40-85C) | Call |
| MIO-5250N-S6A1E | 3.5" SBC, MIO-5250N, N2600 DC, 4xCOM, 6xUSB2, 2xGbE, Audio, VGA, HDMI | Call |
| MIO-5250NZ-2GS6A1E | 3.5" SBC, MIO-5250N-WT, N2600 DC, 2GB RAM, 4xCOM, 6xUSB2, 2xGbE, Audio, VGA, HDMI (-20-80C) | Call |
| MIO-5250NZ22GS6A1E | 3.5" SBC, MIO-5250N-IT, N2600 DC, 2GB RAM, 4xCOM, 6xUSB2, 2xGbE, Audio, VGA, HDMI (-40-85C) | Call |
Peripheral Options
| Product # | Description | Price |
|---|---|---|
| Peripherals | ||
| ACK-A004E-02 | ACK-A004 Chassis for MIO-5250 (4xCOM, 2xLAN, 4xUSB, Audio, internal mount for 2.5" SATA drive.) ** Portions of this Product are made in China: Pricing is subject to change, due to the current US-China Trade Tariff Charges. Please contact EMAC for detailed price quote. | $84.00 |
| PER-FLS-00091-R | mSATA Flash module 32GB MLC Std | Call |
| PER-FLS-00102-R | mSATA Flash module 32GB MLC (-40 to 85°C) | Call |
| PER-PWR-00089 | 1757003995, 12V@5A 60W 4.5mm Barrel jack for SBC, AC 120-240V (requires AC power cable) | $27.00 |
| Memory | ||
| PER-RAM-00130-R | 2GB, DDR3, SODIMM 204P PC3-8500 | Call |
| PER-RAM-00131-R | SODIMM 204P PC3-8500 DDR3 2GB industrial temperature (-40 to 80 C) | Call |
| Operating Systems | ||
| SL05x-XON-xx | EMAC OE Linux 5.x for x86 (Free installation at time of purchase of SBC & media) | Free |
| S7000-NOL-00020 | Windows Embedded Standard 7 (WES7) & License. SOLD ONLY WITH HARD DRIVE OR FLASH DRIVE MEDIA (EOL 10/13/2020) | $125.00 |
