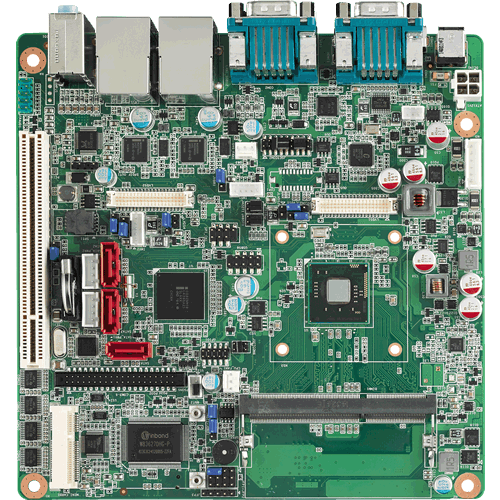

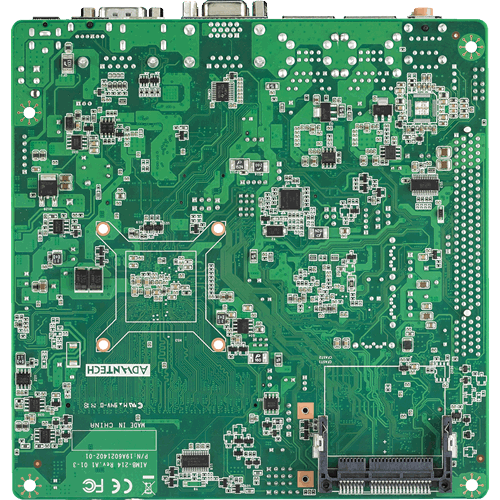

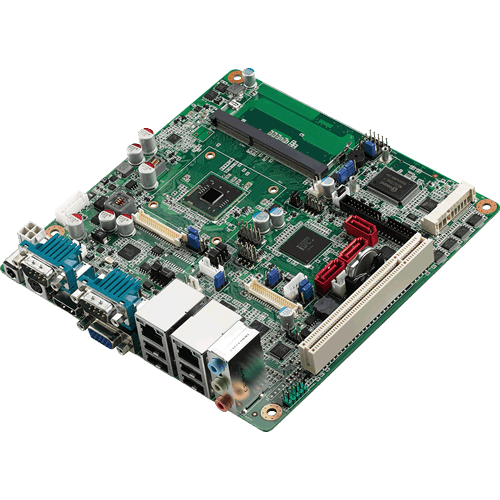

AIMB-214 Mini-ITX
22Api111AA55
22Api111AA55
22Api711AA55
22Api111AA55 The AIMB-214 is designed with the Intel® Atom™ N2600/N2800/D2550/D2700 and the NM10 for industrial applications that require both performance computing and enhanced power management capabilities. The motherboard has on board CPU Intel® Atom™ N2600/N2800/D2550/D2700 dual core 1.6/1.86/1.86/2.13 GHz and DDR3 1066MHz up to 2/4 GB.
Features
- Supports Intel® Atom™ N2600, D2550 or D2700 Dual Core
- Up to 4GB DDR3 1066 MHz SDRAM
- 1x PCI, 1x Mini-PCIe expansion (supports mSATA)
- CFast interface Supports Compact Flash Type II
- 6x Serial Ports (1x RS-232/422/485, 5x RS-232)
- 6x USB 2.0 Ports
- 2x LVDS/HDMI/VGA (eDP optional)
- Lower total cost of ownership with DC12V support, and supports 24/48-bit LVDS
- 2x 10/100/1000 Mbps Ethernet with RJ-45
- 8-bit GPIO
- 2x SATA III
- 3x Audio Line-in/Line-out/Mic-in
- 6x USB 2.0 Ports
- Watchdog Timer
- System reset
- Onboard TPM 1.2 support (optional)
- Supports SUSIAccess and Embedded Software APIs
- Current Consumption: Windows IDOL: 17.8 W (Intel N2600 1.6 GHz processor/DDR3 1333 MHz 4 GB)
- Operating Temperature: 0 ~ 60° C (32 ~ 140° F)
- Dimensions: 170 mm x 170 mm (6.69" x 6.69")
- Power Requirments: Single voltage 12V DC input; 1 x External DC jack; 1x Internal 4-pin (2x2) power connector; Supports AT/ATX mode
Overview
The AIMB-214 is designed with the Intel® Atom™ N2600/N2800/D2550/D2700 and the NM10 for industrial applications that require both performance computing and enhanced power management capabilities. The motherboard has on board CPU Intel® Atom™ N2600/N2800/D2550/D2700 dual core 1.6/1.86/1.86/2.13 GHz and DDR3 1066MHz up to 2/4 GB.

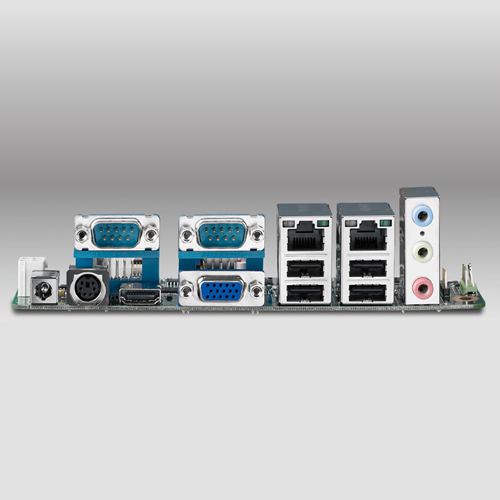

The AIMB-214 has rich I/O connectivity with up to six USB 2.0 ports and six COM ports integrated in a standard 170 x 170 mm form factor. These motherboards also support dual display for LVDS, HDMI, embedded display port and VGA. AIMB-214 also comes with plenty of connectivity and expansion options. CompactFlash, PCI bus, six COM ports, eight USB ports, 8-bit GPIO, two SATA III 6 GB/s connectors, optional TPM security feature, mini SATA and Mini-PCIe expansion slots enable easy integration, while a dual Intel® chipset, 10/100/1000 Mbps Ethernet port is also available to deliver high speed networking.
AIMB-214 is powered by the newest Intel® Atom™ processors which are built on 32nm process technology. The thermal design power rating of the Intel N2600 single core architecture is only 3.5W, while with the dual core processor is only 8W, enabling future power reductions, smaller systems and performance improvements. This is the first Ultra Lower Power mini-ITX board. All these features are packed into a space-saving, power-efficient, and cost-effective Mini-ITX form factor.
| Manuals | |
|---|---|
| AIMB-214_User_Manual.pdf | Download (PDF) |
| Data Sheets | |
|---|---|
| AIMB-214_DS.pdf | Download (PDF) |
Specifications
| Processor | |
|---|---|
| CPU | Intel® Atom™ N2600 or D2550 or D2700 Dual Core |
| Clock Speed | 2.13 GHz |
| Memory | |
|---|---|
| RAM | Up to 4 GB DDR3 1066 MHz SDRAM |
| Primary Flash | CFast interface Supports CFast Flash Type I & II |
| Secondary Flash | 2x SATA SSD/HDD & 1x mSATA |
| BIOS/ Bootloader | AMI 16Mbit SPI |
| Primary IO | |
|---|---|
| GPIO | 8-bit GPIO |
| Disk Interface | 2x SATA III |
| Audio | Line-in/Line-out/Mic-in |
| Video Out | 2x LVDS/HDMI/VGA |
| Ethernet | 2x 10/100/1000 Mbps |
| USB | 6x USB 2.0 Ports |
| Serial Ports | 6x (1x RS-232/422/485 and 5x RS-232) |
| Secondary IO | |
|---|---|
| Display | |
|---|---|
| Chipset | Embedded Intel Gen3.5+ GFX Core |
| CRT-VGA Interface | Supports resolutions up to SXGA 1920 x 1200 pixels + 32-bit + 60Hz refresh rate |
| LVDS Interface | Supports 2x LVDS + LVDS1 is 24-bit Dual Channel up to 1920 x 1200 + LVDS2 is 18/24-bit Single Channel up to 1400 x 900 |
| HDMI/DVI Interface | Supports up to 1920 x 1200 @ 60 MHz |
| Multi-Display | VGA/ LVDS/HDMI |
| Expansion | |
|---|---|
| Bus Expansion | 1 PCI and 1 Mini-PCIe expansion |
| Misc | |
|---|---|
| Operating Systems | EMAC OE Linux, MicroPython, ROM-DOS 6.22 / MS-DOS 6.22 |
Mechanical and Environmental
| Dimensions | |
|---|---|
| Size | 6.69" ×6.69" (169mm × 169mm) |
| Weight | 0.365 kg |
| Dimensions Misc. | 170 mm x 170 mm (6.69" x 6.69") |
| Power Requirements | |
|---|---|
| Voltage | 12 V |
| Max Boot Current | 1.44 A |
| Power Misc. | AIMB-214U sku +12 V @1.44 A
AIMB-214D sku +12 V @1.77 A |
| Environmental | |
|---|---|
| Low Operating Temperature | 0 C (32 F) |
| High Operating Temperature | 60 C (140 F) |
| Upper Operating Humidity | 95% |
| Environmental Misc. | Operating temperature: 0 ~ 60 °C (32 ~ 140 °F, depending on CPU)
Storage temperature: -40 ~ 85 °C (-40 ~ 185 °F) |
| Related Products | |
Pricing
Pricing correct as of January 2021. Please contact EMAC for Current Pricing and Lead Time. Due to volatility in the electronics industry pricing is subject to change.
OEM / Quantity Pricing Available on Request - Less Services
(Single Unit Pricing. Includes: Integration, Setup,Testing, & Enhanced Support)
| Product # | Description | Price |
|---|---|---|
| AIMB-214D-S6A1E | MINI-ITX, AIMB-214D, D2700 DC, 6xCOM, 6xUSB2, 2xGbE VGA, HDMI | Call |
| AIMB-214E-S6A2E | MINI-ITX, AIMB-214E, D2550 DC, 6xCOM, 6xUSB2, 2xGbE, VGA, HDMI | Call |
| AIMB-214U-S6A2E | MINI-ITX, AIMB-214U, N2600 DC, 6xCOM, 6xUSB2, 2xGbE VGA, HDMI | Call |
Peripheral Options
| Product # | Description | Price |
|---|---|---|
| Peripherals | ||
| PER-ENC-00410 | FT-AIMB-214-KIT, FlexiTainer mini-ITX chassis for AIMB-214 | Call |
| PER-FLS-00091-R | mSATA Flash module 32GB MLC Std | Call |
| ARK-6610 | ARK-6610-18ZBE Mini-ITX MB wallmount chassis w/180W PSU & 1slot | $148.00 |
| ARK-6620 | ARK-6620-18ZE, Mini-ITX MB wallmount chassis w/180W PSU & 1slot | $156.00 |
| Memory | ||
| PER-RAM-00130-R | 2GB, DDR3, SODIMM 204P PC3-8500 | Call |
| Operating Systems | ||
| SL05x-XON-xx | EMAC OE Linux 5.x for x86 (Free installation at time of purchase of SBC & media) | Free |
| SX300-000-0000D | Windows Embedded Standard 2009 (WES09) & License (Base configured installation included with License, Flash and SBC purchase; SOLD ONLY WITH HARD DRIVE OR FLASH DRIVE MEDIA) | $125.00 |
| S7000-NOL-00020 | Windows Embedded Standard 7 (WES7) & License. SOLD ONLY WITH HARD DRIVE OR FLASH DRIVE MEDIA (EOL 10/13/2020) | $125.00 |
