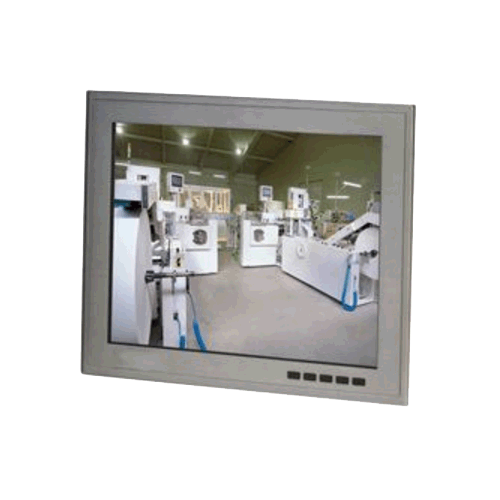

PPC-2173 Rugged 17" Panel PC


  • 17” SXGA (1280 x 1024) TFT LCD Display
  • Intel® Atom™ D2550
  • Up to 4 GB DDR3 Memory
  • 2x RS-232 / 1x RS-232/422/485
  • 2x USB 2.0 Ports
  • 2x Gigabit Ethernet

Receive consultation or quotes about this product from our sales staff.

Request a quote
The PPC-2173 operator panel is an Intel® Atom™ D2550 1.86 GHz processor computer that is designed to serve as a human machine interface (HMI). It is a PC-based system with 17" color TFT LCD display, onboard Ethernet controller, multi-COM port interfaces and an audio controller. With a built-in CFast™ socket, the PPC-2173 is as compact and user friendly as a multi-function computer. In addition, its "fit anywhere" design makes it very flexible and able to be used in many different kinds of installations. It can be Panel/ VESA 100/ wall mounted.

Features


  • 17” SXGA (1280 x 1024) TFT LCD Display
  • IP65 Aluminum Die Cast Front Bezel
  • Intel® Atom™ D2550, 1.86 GHz onboard
  • Up to 4 GB (2 GB Inside)
  • 2x RS-232 / 1x RS-232/422/485
  • 2x USB 2.0 Ports
  • 2x 10/100/1000 Base-T with RJ-45
  • 2.5 Inch SATA Hard Disk Driver / CFast™ Slot (Internal)
  • 1x Mini-PCIe
  • 1x VGA
  • 5-wire Resistive Touch Screen
  • Max. Resolution: 1280 x 1024
  • Max. Colors: 16.7M colors
  • Luminance: 350 cd/m2
  • Viewing Angle: 170°(H), 160°(V)
  • Back Light: LED
  • Back Light MTBF (Hours) 50,000
  • Light Transmission: 80%
  • Life Time: 10 Million Touch
  • Watchdog Timer
  • Rugged HMI Touch Panel Solutions
  • Fanless System
  • Aluminum Die Cast Front Bezel
  • Operating Temperature: -4°F ~ 140°F (-10°C ~ 60°C) w/ Airflow & -4°F ~ 131°F (-10°C ~ 55°C) w/o Airflow
  • Storage Temperature: -20°C ~ 70°C (-20°F ~158°F)
  • Storage Humidity: 10%~95% @40°C; non-condensing
  • Power Requirements: 9~30V DC input, w/3-pin terminal block
  • Gross Weight 18.7 lb (8.5 kg)
  • Dimension 16.56”(W) x 14.08”(H) x 2.87”(D) (420mm x 358mm x 73mm)

Overview


The PPC-2173 operator panel is an Intel® Atom™ D2550 1.86 GHz processor computer that is designed to serve as a human machine interface (HMI). It is a PC-based system with 17" color TFT LCD display, onboard Ethernet controller, multi-COM port interfaces and an audio controller. With a built-in CFast™ socket, the PPC-2173 is as compact and user friendly as a multi-function computer. In addition, its "fit anywhere" design makes it very flexible and able to be used in many different kinds of installations. It can be Panel/ VESA 100/ wall mounted.

For system integrators, this simple, complete, compact and highly integrated system let you easily build an operator panel into your applications. Common industrial applications include factory automation systems, precision machinery, and production process control. It is also suitable for many non-industrial applications, including vending machine, and car park automation. Our operator panel is a reliable, cost-effective solution to your application's processing requirements.

Manuals
AHP-2173 Manual 1st Ed.pdf
Data Sheets
AHP-2173.pdf

Specifications


Processor
CPU
Intel® Atom™ D2550
Clock Speed
1.86 GHz
Memory
RAM
2 GB
RAM Type
Up to 4 GB DDR3 SODIMM Module
Primary Flash
CFAST
Secondary Flash
1x 2.5 inch SATA HDD/SSD or DOM
BIOS/ Bootloader
AMI BIOS
Primary IO
Disk Interface
2.5 Inch SATA Hard Disk Driver / CFast™ Slot (Internal)
Video Out
1x VGA
Ethernet
2x 10/100/1000 Base-T with RJ-45
USB
2x USB 2.0 Ports
Serial Ports
2x RS-232 / 1x RS-232/422/485
Secondary IO
Touch
5-wire Resistive Touch Screen
Display
Display Type
17” SXGA FT LCD Display
Resolution
1280 × 1024 px
LCD Colors
16.7M
Viewing Angle
170°(H), 160°(V)
Luminance
350 cd/m2
LCD Misc.
  • Max. Resolution: 1280 x 1024
  • Back Light: LED
  • Back Light MTBF (Hours) 50,000.
  • Type: 5-wire resistive Touch Screen
  • Light Transmission: 80%
  • Life Time: 10 Million times
Misc
Operating Systems
EMAC OE Linux, XP Embedded (XPE) / WES09, WES 7 - Windows Embedded Standard 7

Mechanical and Environmental


Dimensions
Size
16.56" ×14.08" ×2.87" (420mm × 357mm × 72mm)
Weight
18.7 lb
Dimensions Misc.
Dimension 16.56”(W) x 14.08”(H) x 2.87”(D) (420mm x 358mm x 73mm)
Power Requirements
Power Misc.
DC input 9~30V DC input w/3-pin terminal block
Environmental
Low Operating Temperature-10 C (14 F)
High Operating Temperature60 C (140 F)
Upper Operating Humidity
95%
Environmental Misc.
Operating Temperature
-4°F ~ 140°F (-10°C ~ 60°C) w/ Airflow
-4°F ~ 131°F (-10°C ~ 55°C) w/o Airflow
Storage Humidity: 10%~95% @40°C; non-condensing


Pricing


OEM / Quantity Pricing Available on Request - Less Services

(Single Unit Pricing. Includes: Integration, Setup,Testing, & Enhanced Support)

Product # Description Price
PPC-2173HTT-A1-1011 17" Rugged Fanless Touch Panel with Atom D2550 1.86GHz Onboard 2G RAM $1138.55
