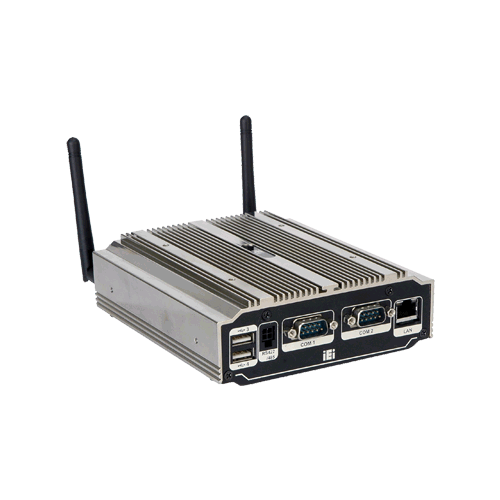

Standard Server-In-a-Box (SIB)


  • Intel® 3rd Gen Atom™ N2600 dual-core processor,
  • Supports DDR3 memory (system max: 2 GB)
  • Flexible VGA and HDMI with dual-display support
  •  Supports PCIe Mini card slot
  • Four USB, one VGA, one HDMI, three COM and audio

Receive consultation or quotes about this product from our sales staff.

Request a quote

The EMAC Server-In-a-Box (SIB), is a low cost, small footprint, yet powerful Server. The Standard SIB utilizes an Atom N2600 CPU. The SIB comes built with a 1.6GHz fanless processor. This allows it to run Linux, Windows CE and even Windows Embedded Operating Systems. The video engine delivers a High Definition visual experience.

Features


  • Slim and compact embedded system design with Intel® 3rd Gen Atom™ N2600 dual-core processor,
  • Supports DDR3 memory (system max: 2 GB)
  • 12V only single voltage design, supports AT/ATX power mode selection
  • Flexible VGA and HDMI with dual-display support
  •  Supports PCIe Mini card slot
  • Four USB, one VGA, one HDMI, three COM and audio



Overview


The EMAC Server-In-a-Box (SIB), is a low cost, small footprint, yet powerful Server. The Standard SIB utilizes an Atom N2600 CPU. The SIB comes built with a 1.6GHz fanless processor. This allows it to run Linux, Windows CE and even Windows Embedded Operating Systems. The video engine delivers a High Definition visual experience.

Like all SIBs, the Standard SIB has no moving parts and features a rugged enclosure design making it an ideal choice for most industrial applications. The SIB is just as comfortable in a basement wiring closet as it is on a desktop.

Purchase a EMAC SIB and you should be up, running and building applications the first day.

Click Here for more information on EMAC's Linux for SIBs.
Click Here for more information on EMAC's XPE for SIBs.

Manuals
Data Sheets
uIBX-210-CV-N2600.pdf

Specifications


Processor
CPU
Intel® Atom™ N2600
Clock Speed
1.6 GHz
Memory
RAM
2 GB
RAM Type
204-pin DDR3 SO-DIMM (system max: 2 GB) Pre-installed 2 GB
Primary Flash
1x 2.5 inch SATA HDD 16GB
Primary IO
Audio
1x Line-out
Video Out
VGA/HDMI
Ethernet
1x RJ-45 1x PCIe GbE by Realtek 8111E
USB
4x USB 2.0
Serial Ports
2x RS-232
Primary I/O Misc.

VGA: Up to 1920 x 1200
HDMI: Up to 1920 x 1080

SATA: 1x SATA

Secondary IO
Power Supply
DC Jack: 12 V DC
Wireless
1x 802.11b/g/n (optional)
Secondary I/O Misc.

12 V@1.57 A
(Intel® Atom™ N2600 with 2 GB DDR3 memory)

Misc
Operating Systems
EMAC OE Linux, Windows Embedded Standard 2009 / WES09 (Windows XPE ), WES 7 - Windows Embedded Standard 7
Operating Systems Compatibility

EMAC OE Linux 4.0 for x86 (Preloaded)

Misc.

Operating Shock- Half-sine wave shock 3G, 11ms, 3 shocks per axis

Operation Vibration- Meet MIL-STD-810F 514.5C-1

Optional Mounting Kits Available - VESA 75 mount kit (black), VESA mount 75 to100 adapter (black)

Mechanical and Environmental


Dimensions
Size
146.6mm ×132mm ×45.2mm
Weight
980 g (2 lbs)
Power Requirements
Voltage
12 V
Power Misc.

1 * Adaptor 12V/5A

Environmental
Low Operating Temperature0 C (32 F)
High Operating Temperature50 C (122 F)
Upper Operating Humidity
95%
Environmental Misc.

Operating Temperature:  0°C ~50°C with air flow (mSATA)

Operating Humidity: 5% to 95% relative humidy noncondensing

Pricing


OEM / Quantity Pricing Available on Request - Less Services

(Single Unit Pricing. Includes: Integration, Setup,Testing, & Enhanced Support)

Product # Description Price
SIB-08030 Fanless embedded system with Intel® Atom™ N2600 DC 1.6 GHz, Intel® NM10 chipset, 2 GB DDR3 memory, 12 V DC-In, with 60W power adaptor PSE adaptor, black, RoHS, 16GB SSD, EMAC OE Linux $499.00
SIB-08032 Fanless embedded system with Intel® Atom™ N2600 DC 1.6 GHz, Intel® NM10 chipset, 2 GB DDR3 memory, built-in TELEC Certified 2T2R 802.11b/g/ n wireless, 12 V DC-In, with 60W power adaptor PSE adaptor, black, RoHS, 16GB SSD, EMAC OE Linux $539.00

Peripheral Options


Product # Description Price
Peripherals
PER-FLS-00091-R mSATA Flash module 32GB MLC Std $30.00
