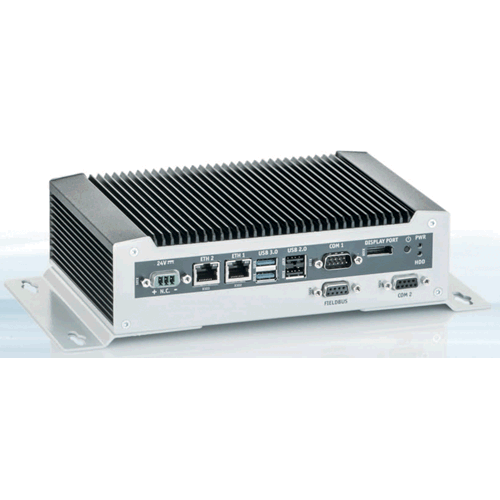

SIB-KA101
22Spi411SS55 The Manufacturer's SIB-KA101 can be used for various applications including medical, gaming, process control and various embedded applications. The SIB-KA101 is specifi cally designed for use within harsh and industrial environments. The fanless Box PC SIB-KA101 features long life SBCs, based on the latest Intel® embedded low power Atom™ Processor D2550, ultra slim design and low power consumption. Due to the extensive amount of on board I/Os and extensions like 2x GB LAN, 2x USB 2.0, 2x USB 3.0, 2x COM, 1x CAN SJA1000, expandability by MSata and Mini PCI_e SIB-KA101 enables connectivity for most applications. Long term availablility, easy maintenance and serviceability protect your investment. These embedded Box PC save power and space and off er effi cient performance ideal for factory automation.
Features
- Intel® Atom™ D2550 Dual Core 1.86 GHz
- Up to 4 GB DDR3 1066 MHz (1x 204-pin SODIMM)
- 1x RS232 and 1x RS232/422/485
- 2x USB 3.0, 2x USB 2.0
- 2x 10/100/1000 Mbps Intel® 82583V Ethernet controller
- AMI EFI BIOS
- 4x Digital In/Out TTL optional
- 255 levels timer interval, setup by software
- 1x full size MINI PCIe
- SATA 2.5” HDD/SSD (Compatible with 12.5 mm height HDD)
- 10,8 V DC to 28,8 V DC
- AC to DC 24 V / 2,5 A (60W) optional
- 16 Watt (with Intel® Atom™ D2550 at 1.8 GHz)
- Aluminum housing
- DIN RAIL, Desktop, Wall, Cabinet, VESA Mounting
- Fanless, Solid State Discs
- Battery-free
- 210 x 65 x 140 mm (8.27” x 2.56” x 5.51”)
- 2.5 kg (5.51 lb)
- Wide Temperature
- Operating Temperature: With extended temperature peripherals: -10°C to 60°C (14°F to 140°F)
- Storage Temperature: -40°C to 85°C (-40°F to 185°F)
- Humidity: 95% @ 40°C (non-condensing)
Overview
The Manufacturer's SIB-KA101 can be used for various applications including medical, gaming, process control and various embedded applications. The SIB-KA101 is specifi cally designed for use within harsh and industrial environments. The fanless Box PC SIB-KA101 features long life SBCs, based on the latest Intel® embedded low power Atom™ Processor D2550, ultra slim design and low power consumption. Due to the extensive amount of on board I/Os and extensions like 2x GB LAN, 2x USB 2.0, 2x USB 3.0, 2x COM, 1x CAN SJA1000, expandability by MSata and Mini PCI_e SIB-KA101 enables connectivity for most applications. Long term availablility, easy maintenance and serviceability protect your investment. These embedded Box PC save power and space and off er effi cient performance ideal for factory automation.
| Manuals | |
|---|---|
| kbox-a-101_users-guide_v1_00_web_en.pdf | Download (PDF) |
| Data Sheets | |
|---|---|
| kbox-a-101.pdf | Download (PDF) |
Specifications
| Processor | |
|---|---|
| CPU | Intel® Atom™ D2550 Dual Core |
| Clock Speed | 1.86 GHz |
| Memory | |
|---|---|
| RAM Type | DDR3 1066 MHz SODIMM |
| Primary Flash | mSATA |
| Secondary Flash | 1x 2.5 Inch SATA SSD/HDD (up to 12.5mm height) |
| BIOS/ Bootloader | AMI EFI BIOS |
| Primary IO | |
|---|---|
| GPIO | 4x DIO |
| Disk Interface | 2.5 inch SATA HDD/SSD & mSATA |
| Video Out | HDMI/DP |
| Ethernet | 2x 10/100/1000 Mbps Intel® 82583V Ethernet controller |
| USB | 2x USB 3.0 & 2x USB 2.0 Ports |
| Serial Ports | 1x RS232, (1x RS232/422/485 2nd COM) |
| Secondary IO | |
|---|---|
| Power Supply | 10.8 V DC to 28.8 V DC |
| Misc | |
|---|---|
| Operating Systems | EMAC OE Linux, MicroPython, FreeRTOS, EMAC OE, Yocto, Qt, ROM-DOS 6.22 / MS-DOS 6.22 |
Mechanical and Environmental
| Dimensions | |
|---|---|
| Size | 8.27" ×2.56" ×5.51" (210mm × 65mm × 139mm) |
| Weight | 2.5 kg |
| Dimensions Misc. | 210 x 65 x 140 mm (8.27” x 2.56” x 5.51”) |
| Power Requirements | |
|---|---|
| Voltage | 10.8 V |
| Power Misc. | 10.8 V DC to 28.8 V DC |
| Environmental | |
|---|---|
| Low Operating Temperature | -10 C (14 F) |
| High Operating Temperature | 60 C (140 F) |
| Upper Operating Humidity | 95% |
| Environmental Misc. | -10°C to 60°C (14°F to 140°F)
95% @ 40°C (non-condensing)
|
Pricing
Pricing correct as of January 2021. Please contact EMAC for Current Pricing and Lead Time. Due to volatility in the electronics industry pricing is subject to change.
OEM / Quantity Pricing Available on Request - Less Services
(Single Unit Pricing. Includes: Integration, Setup,Testing, & Enhanced Support)
| Product # | Description | Price |
|---|---|---|
| SIB-KA101-200-R | KBox-A-101, Intel® Atom™ D2550 Dual Core 1.86 GHz, 2GB RAM, 2x COM, 4x DIO, 2x Gig LAN, HDMI/DP | Call |
| SIB-KA101-400-R | KBox-A-101, Intel® Atom™ D2550 Dual Core 1.86 GHz, 4GB RAM, 2x COM, 4x DIO, 2x Gig LAN, HDMI/DP | Call |
Peripheral Options
| Product # | Description | Price |
|---|---|---|
| Operating Systems | ||
| SL05x-XON-xx | EMAC OE Linux 5.x for x86 (Free installation at time of purchase of SBC & media) | Free |
| SX300-000-0000D | Windows Embedded Standard 2009 (WES09) & License (Base configured installation included with License, Flash and SBC purchase; SOLD ONLY WITH HARD DRIVE OR FLASH DRIVE MEDIA) | $125.00 |
| S7000-NOL-00020 | Windows Embedded Standard 7 (WES7) & License. SOLD ONLY WITH HARD DRIVE OR FLASH DRIVE MEDIA (EOL 10/13/2020) | $125.00 |
