EPC-X200


  • Fits multiple 3.5" sbc boards in the PCM-937x series
  • Offers a mount for a 2.5" Hard Drive or SSD drive
  • Removable optional IO plates (4x USB, 7x DB9, 3x audio mounts (Mic-in/Lin-out/lin-in), 2x Antenna, 1x I/O Circular cutout)
  • Desktop Power Supply
    • 12v & 5V 42 W power supply (optional)
    • AC 100 ~ 240 V
    • DC 12 V @ 1.41 A
    • DC 5V @ 5A
    • Temperature 0 ~ 40° C (32 ~ 104° F)
    • CE/FCC/CCC/UL/
    • CB/BSMI/KC/PSE/
    • GS/GOST-R
    • 100,000 hours @ 25° C

 COMPATIBLE WITH: PCM-9375 PCM-9376 boards

Receive consultation or quotes about this product from our sales staff.

Request a quote

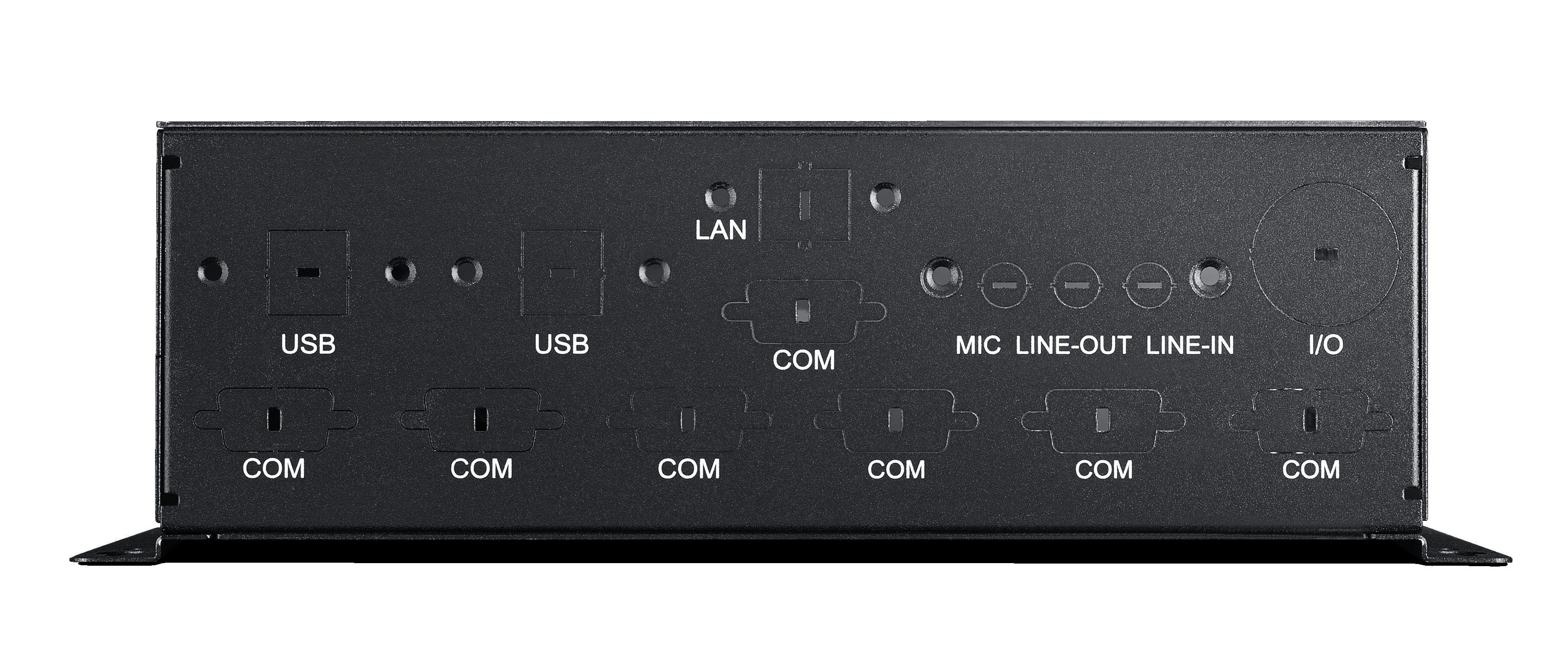

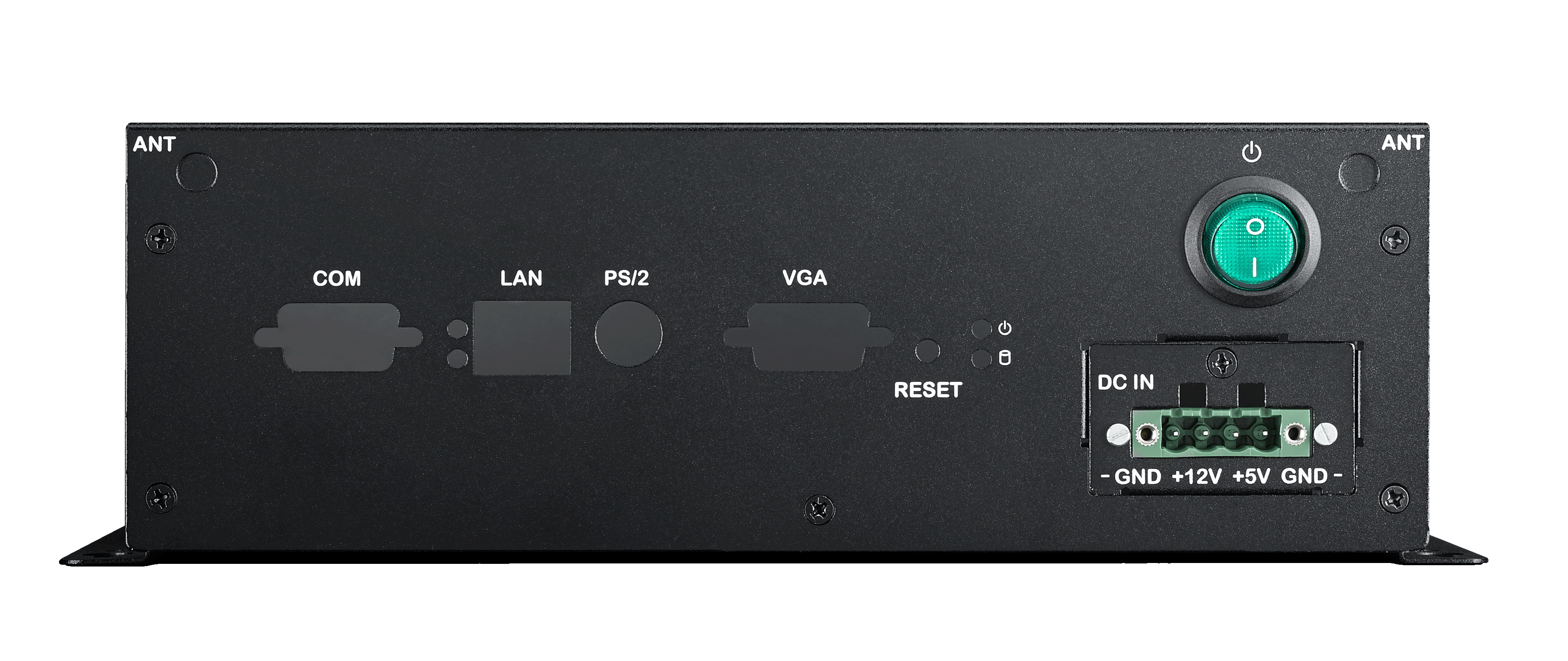

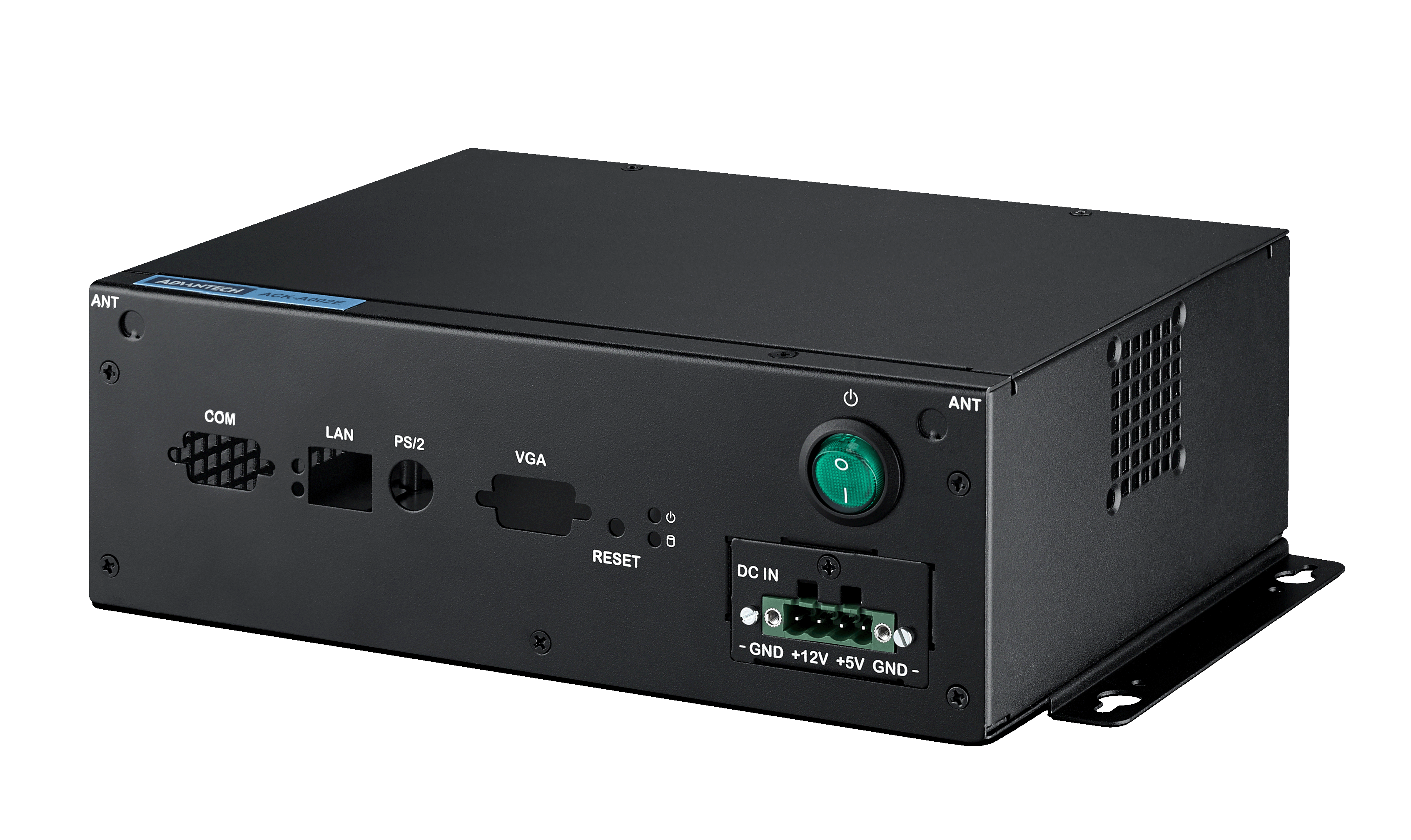

The EPC-X200 "ACK-A002E" chassis is a 3.5" SBC chassis that supports front & rear I/O interfaces. It has a fanless system with wall-mount & desk mount support with removable mounting flange. The bottom door for access to devices is on the solder side of motherboard, including Mini-PCIe cards. It features flexible cutouts I/O in the rear bezel up to 7 x COM , 4 x USB, audio, and circular cutout for LVDS. With easy assembling & maintenance of 2.5" hard disk or SSD, it also supports dedicated PCM-937x Series of 3.5" SBCs,  the PCM-9376 / PCM-9375.

Features


  • Fits multiple 3.5" sbc boards in the PCM-937x series
  • Offers a mount for a 2.5" Hard Drive or SSD drive
  • Removable optional IO plates (4x USB, 7x DB9, 3x audio mounts (Mic-in/Lin-out/lin-in), 2x Antenna, 1x I/O Circular cutout)
  • Desktop Power Supply
    • 12v & 5V 42 W power supply (optional)
    • AC 100 ~ 240 V
    • DC 12 V @ 1.41 A
    • DC 5V @ 5A
    • Temperature 0 ~ 40° C (32 ~ 104° F)
    • CE/FCC/CCC/UL/
    • CB/BSMI/KC/PSE/
    • GS/GOST-R
    • 100,000 hours @ 25° C

 COMPATIBLE WITH: PCM-9375 PCM-9376 boards

Overview


The EPC-X200 "ACK-A002E" chassis is a 3.5" SBC chassis that supports front & rear I/O interfaces. It has a fanless system with wall-mount & desk mount support with removable mounting flange. The bottom door for access to devices is on the solder side of motherboard, including Mini-PCIe cards. It features flexible cutouts I/O in the rear bezel up to 7 x COM , 4 x USB, audio, and circular cutout for LVDS. With easy assembling & maintenance of 2.5" hard disk or SSD, it also supports dedicated PCM-937x Series of 3.5" SBCs,  the PCM-9376 / PCM-9375.

Specifications


Secondary IO

Mechanical and Environmental


Dimensions
Size
8.66" ×2.87" ×5.9" (219mm × 72mm × 149mm)
Weight
0.95 kg

Pricing


OEM / Quantity Pricing Available on Request - Less Services

(Single Unit Pricing. Includes: Integration, Setup,Testing, & Enhanced Support)

Product # Description Price
ACK-A002E ACK-A002E, EPC-X200, Basic Bare Bones Chassis for PCM-937x series boards $65.00
