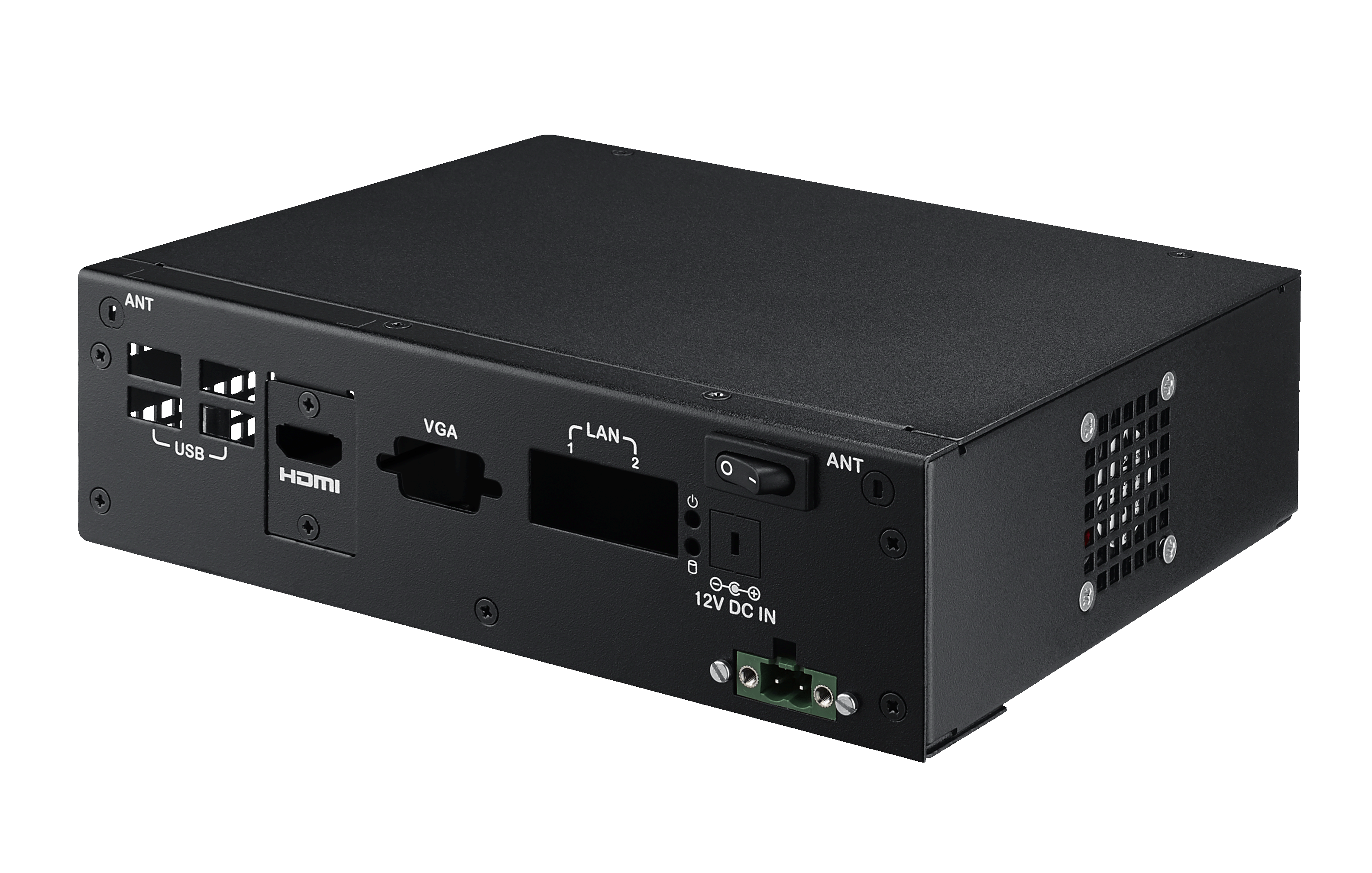

EPC-C300

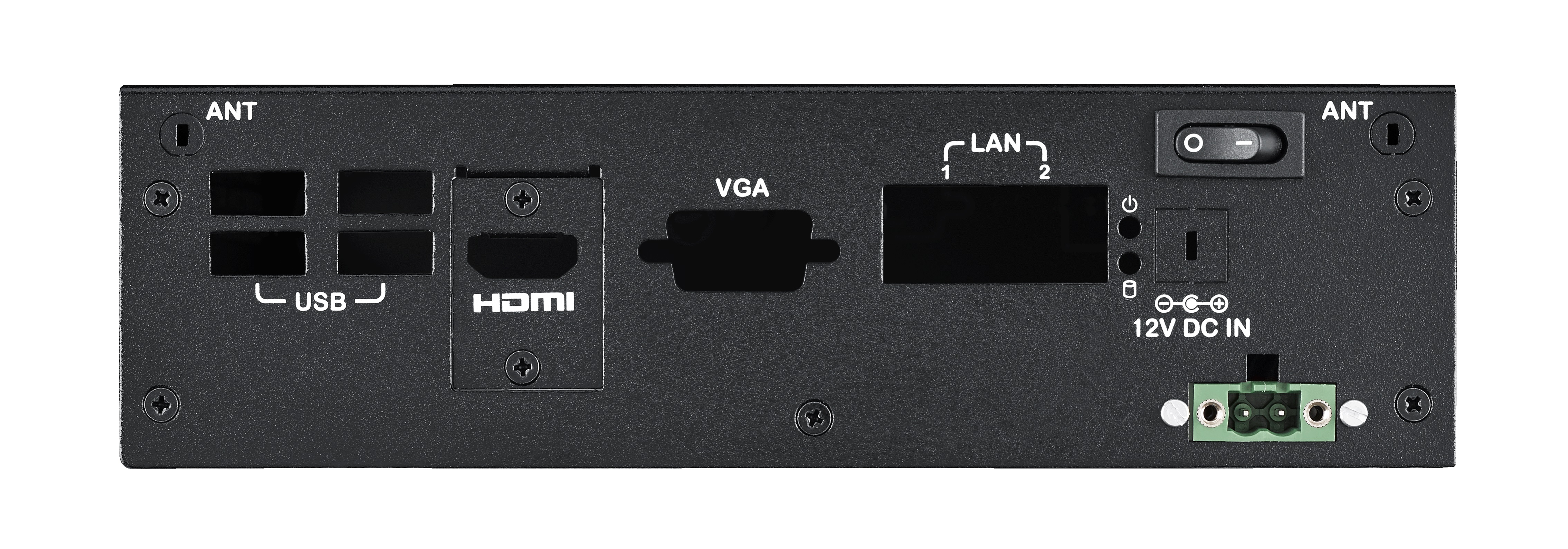

  • 3.5" SBC chassis supports front & rear I/O interfaces
  • Fanless system with wall-mount & desk mount support; mounting flange is removable
  • Bottom door for access Memory, mPCIe module, mSATA, 2.5" HDD

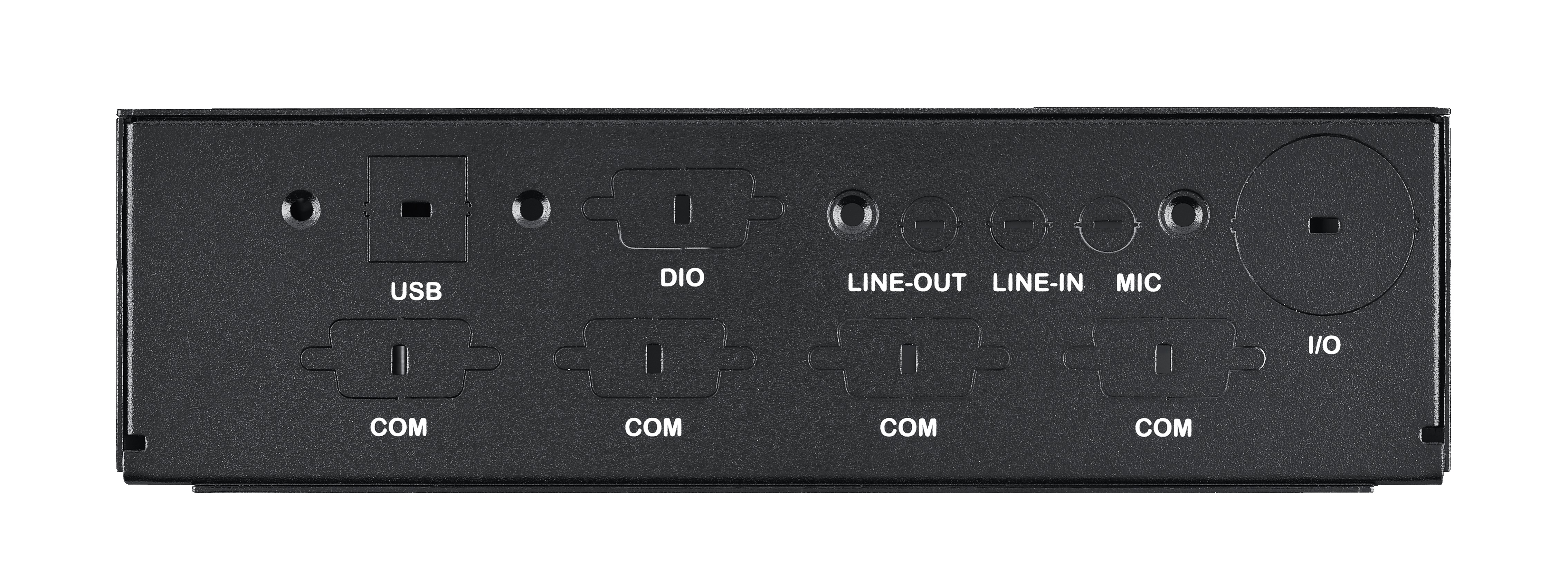

  • Flexible cutouts I/O in the rear bezel up to 4 x COM, 2 x USB, audio
  • Easy assembling & maintenance of 2.5" hard disk
  • Supports dedicated Advantech 3.5" SBC: PCM-9310, MIO-5250, MIO-5251, MIO-5271

The EPC-C300 "ACK-A004E" chassis is a 3.5" SBC chassis that supports front & rear I/O interfaces. It has a fanless system with wall-mount & desk mount support with removable mounting flange. The bottom door for access to devices is on the solder side of motherboard, including Mini-PCIe cards. It features flexible cutouts I/O in the rear bezel up to 5 x DB9 , 3 x dual USB, audio, and circular cutout for LVDS. With easy assembling & maintenance of 2.5" hard disk or SSD.

Features


  • Fits multiple 3.5" sbc boards in the MIO-52xx series
  • Offers a mount for a 2.5" Hard Drive or SSD drive
  • Removable optional IO plates (6x USB, 5x DB9, 3x audio mounts (Mic-in/Lin-out/lin-in), 2x Antenna, 1x I/O Circular cutout)
  • Desktop Power Supply
    • 12v 60 W power supply (optional)

Overview


The EPC-C300 "ACK-A004E" chassis is a 3.5" SBC chassis that supports front & rear I/O interfaces. It has a fanless system with wall-mount & desk mount support with removable mounting flange. The bottom door for access to devices is on the solder side of motherboard, including Mini-PCIe cards. It features flexible cutouts I/O in the rear bezel up to 5 x DB9 , 3 x dual USB, audio, and circular cutout for LVDS. With easy assembling & maintenance of 2.5" hard disk or SSD. This chassis supports dedicated PCM-9310 Series of 3.5" SBCs, along with the MIO-5271, MIO-5250 and MIO-5251.

Specifications


Secondary IO

Mechanical and Environmental


Dimensions
Size
8.66" ×5.9" ×2.12" (219mm × 149mm × 53mm)
Weight
1.11 kg

Pricing


Pricing correct as of January 2021. Please contact EMAC for Current Pricing and Lead Time. Due to volatility in the electronics industry pricing is subject to change.

OEM / Quantity Pricing Available on Request - Less Services

(Single Unit Pricing. Includes: Integration, Setup,Testing, & Enhanced Support)

Product # Description Price
ACK-A004E-01 ACK-A004 Chassis for MIO-5251& PCM-9310 (4xCOM, 2xLAN, 4xUSB, Audio, internal mount for 2.5" SATA drive.) ** Portions of this Product are made in China: Pricing is subject to change, due to the current US-China Trade Tariff Charges. Please contact EMAC for detailed price quote. $84.00
ACK-A004E-02 ACK-A004 Chassis for MIO-5250 (4xCOM, 2xLAN, 4xUSB, Audio, internal mount for 2.5" SATA drive.) ** Portions of this Product are made in China: Pricing is subject to change, due to the current US-China Trade Tariff Charges. Please contact EMAC for detailed price quote. $84.00
ACK-A004E-03 ACK-A004 Chassis for MIO-5271 or MIO-5272 (4xCOM, 2xLAN, 4xUSB, Audio, internal mount for 2.5" SATA drive.) ** Portions of this Product are made in China: Pricing is subject to change, due to the current US-China Trade Tariff Charges. Please contact EMAC for detailed price quote. $88.00

Additional Options
